Step 1 Connect the grounding lugs using a crimping tool (as specified by the ground lug manufacturer), crimp the ground lug
to the ground wire.
Step 2 Use a 6 AWG ground wire to connect the other end to a suitable grounding point at your site.

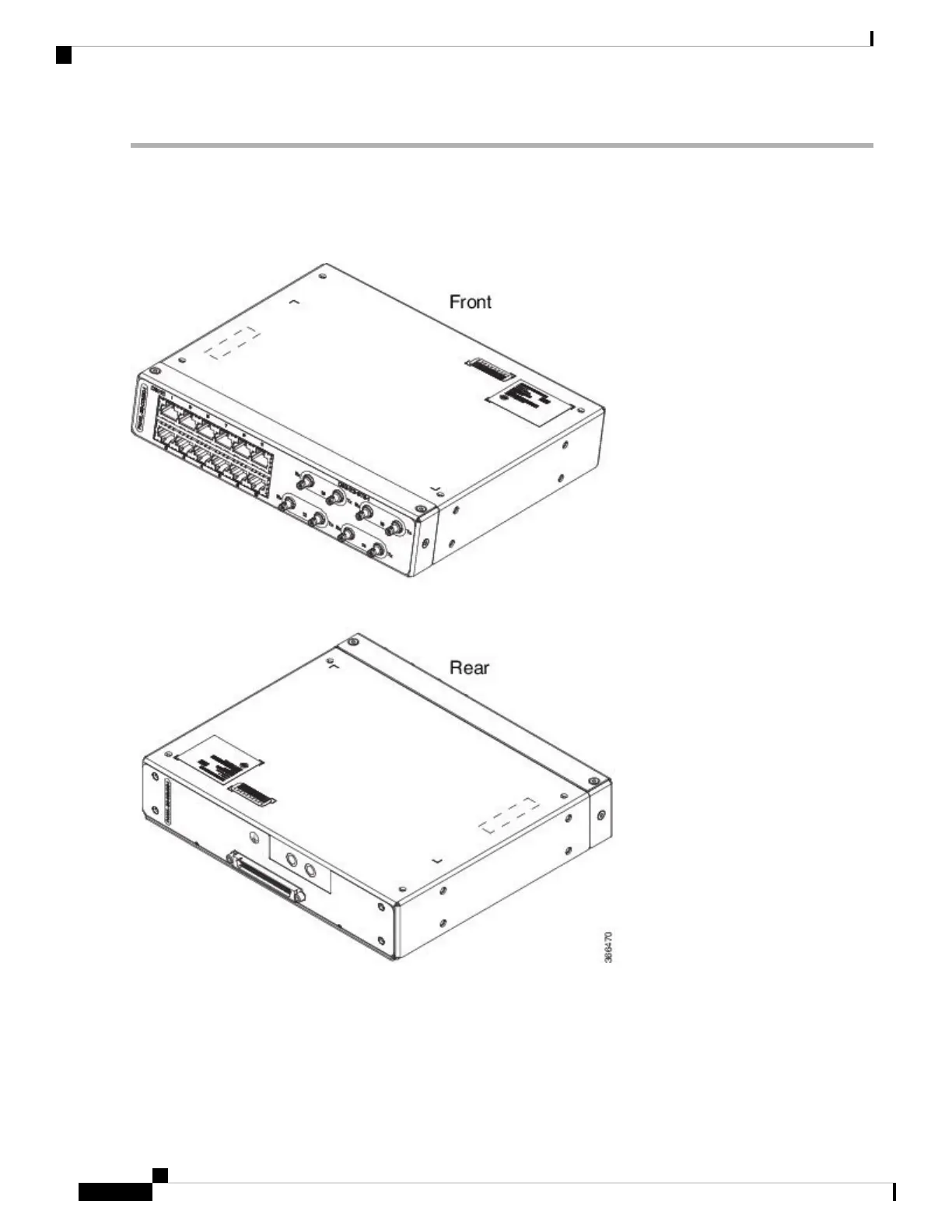

Figure 98: Patch Panel Grounding - Single
Cisco ASR 903 and ASR 903U Aggregation Services Router Hardware Installation Guide
130
Installing the Cisco ASR 903 Router
Installing the 3G Patch Panel
