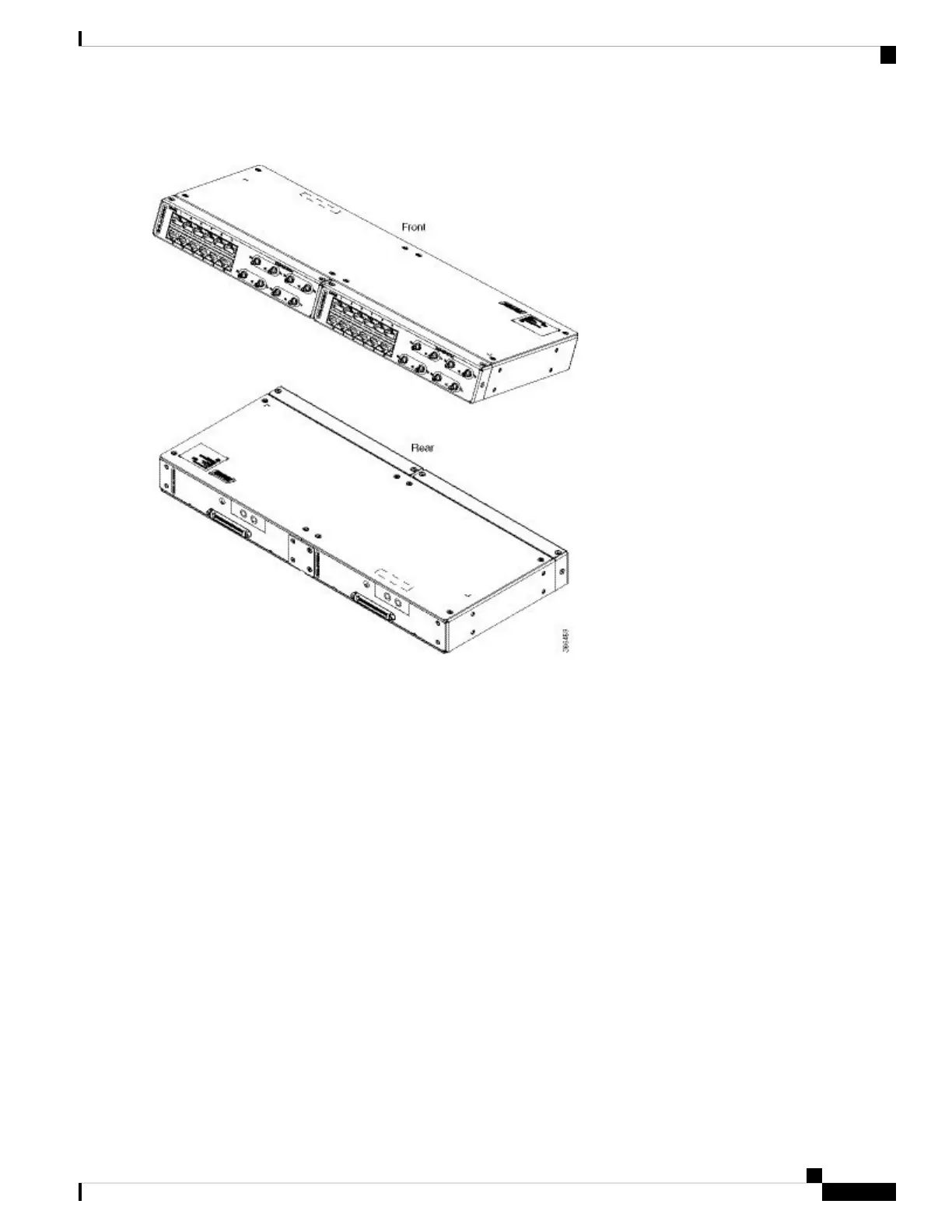

Figure 99: Patch Panel Grounding - Dual
Step 3 Position the patch panel in the rack as follows:
• If the front of the patch panel is at the front of the rack, insert the rear of the chassis between the mounting posts.
• If the rear of the patch panel is at the front of the rack, insert the front of the chassis between the mounting posts.
Step 4 Align the mounting holes in the bracket with the mounting holes in the equipment rack.
