Cisco Catalyst 3560-CX

Attaching the DIN-Mount Tray to the Switch
Step 1
Place the switch on the DIN rail mount.

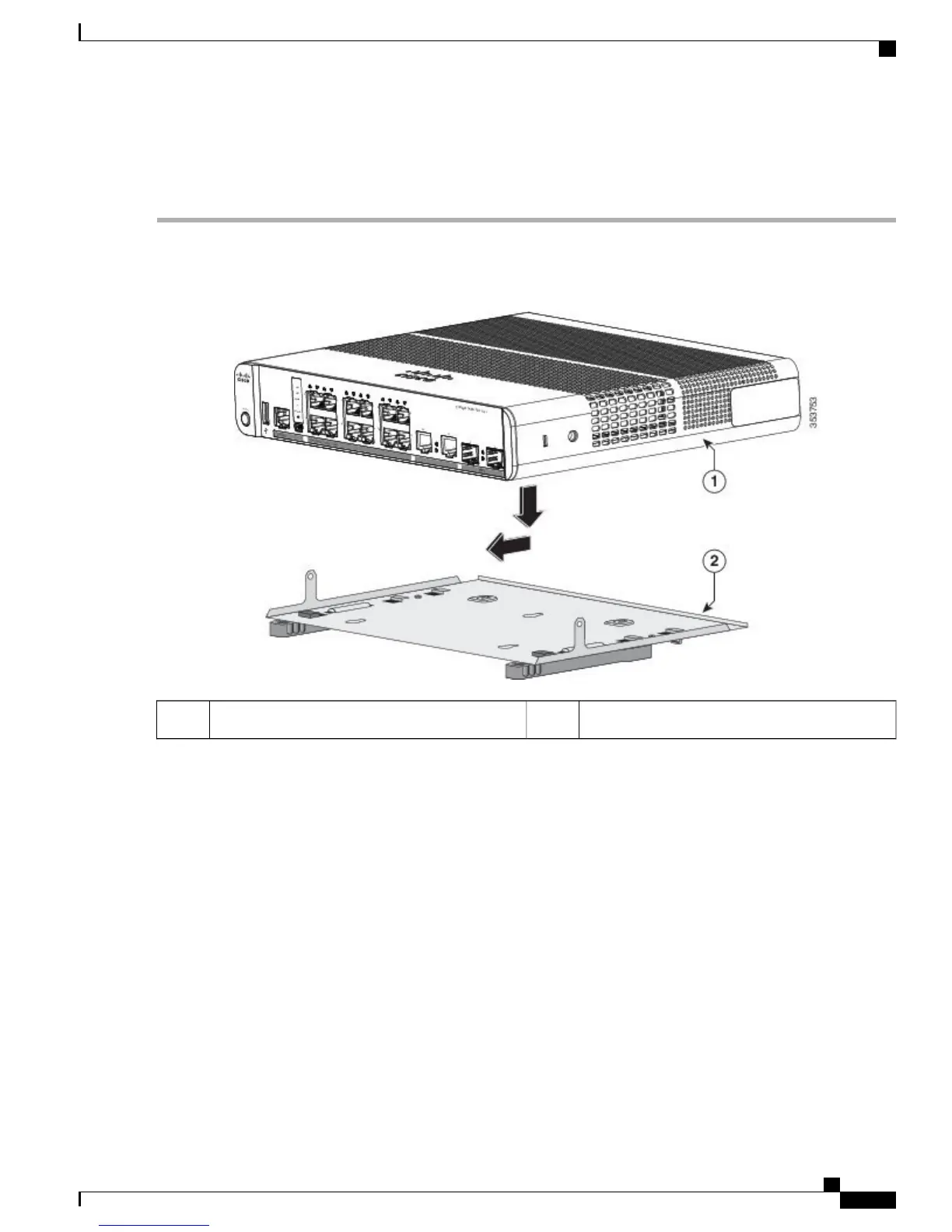

Figure 24: Placing the Switch on the DIN-Mount Tray
DIN rail mount2Switch1
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
31
Switch Installation
On a DIN Rail
