Cisco Catalyst 3560-CX User Manual

Cable Pinouts

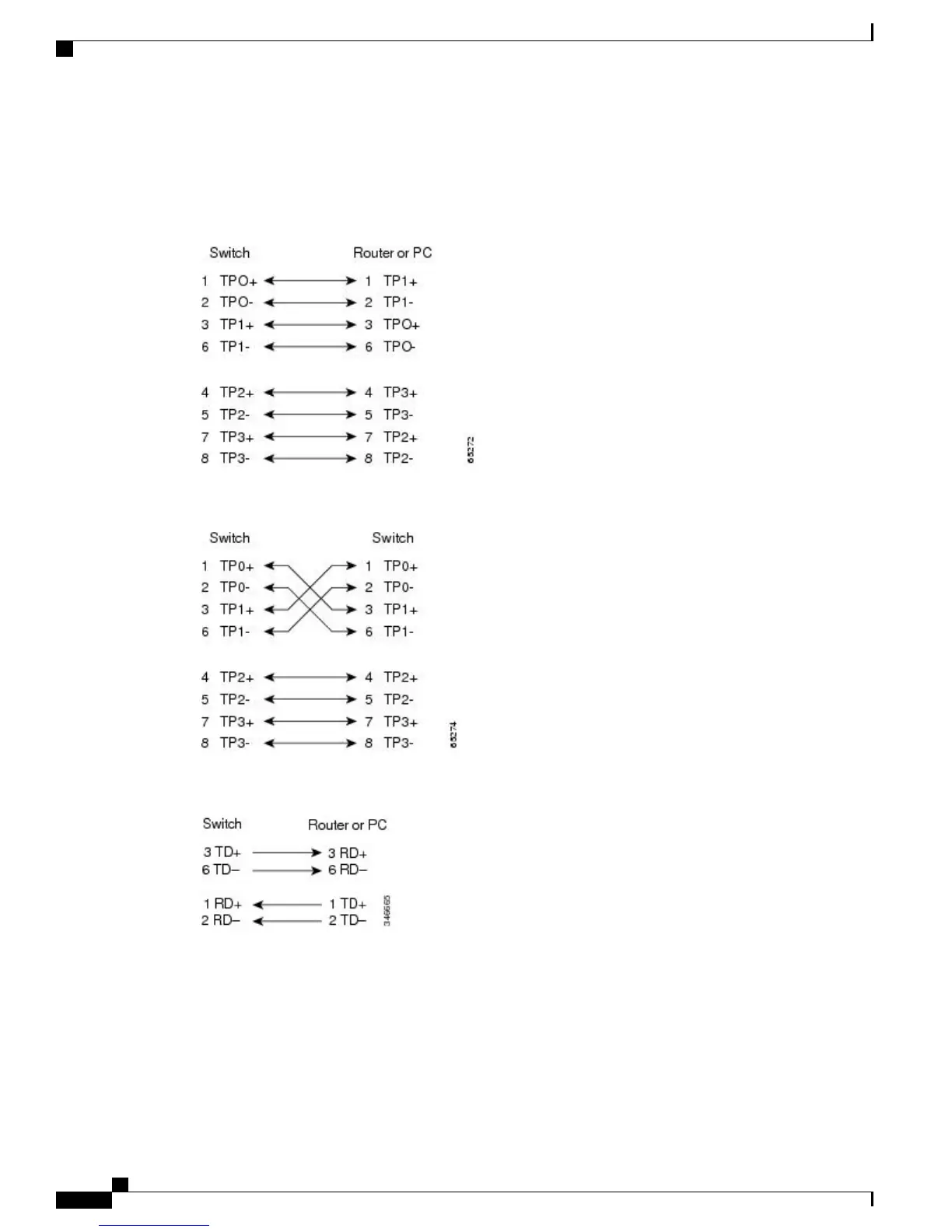

Figure 47: Four Twisted-Pair Straight-Through Cable Schematic
Figure 48: Four Twisted-Pair Semi-Cross Cable Schematic
Figure 49: Two Twisted-Pair Straight-Through Cable Schematic
Figure 50: Two Twisted-Pair Crossover Cable Schematic
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
62
Connector and Cable Specifications
Cable Pinouts

Cisco Catalyst 3560-CX Specifications

General

Model	WS-C3560CX-8PC-S
Switching Capacity	20 Gbps
Product Type	Switch
Manageable	Yes
Layer Supported	Layer 3
Jumbo Frame Support	Yes
Jumbo Frame Size	9198 bytes
Input Voltage	100 - 240 VAC
Operating Temperature	32 to 113°F (0 to 45°C)
Power Supply	Internal
Ports	8 x 10/100/1000 Ethernet Ports
Uplink Ports	2 x 1G SFP
PoE	PoE+
Form Factor	Desktop, Wall-mountable
MAC Address Table Size	16, 000 entries
Power Source	AC
