Cisco Catalyst 3560-CX User Manual

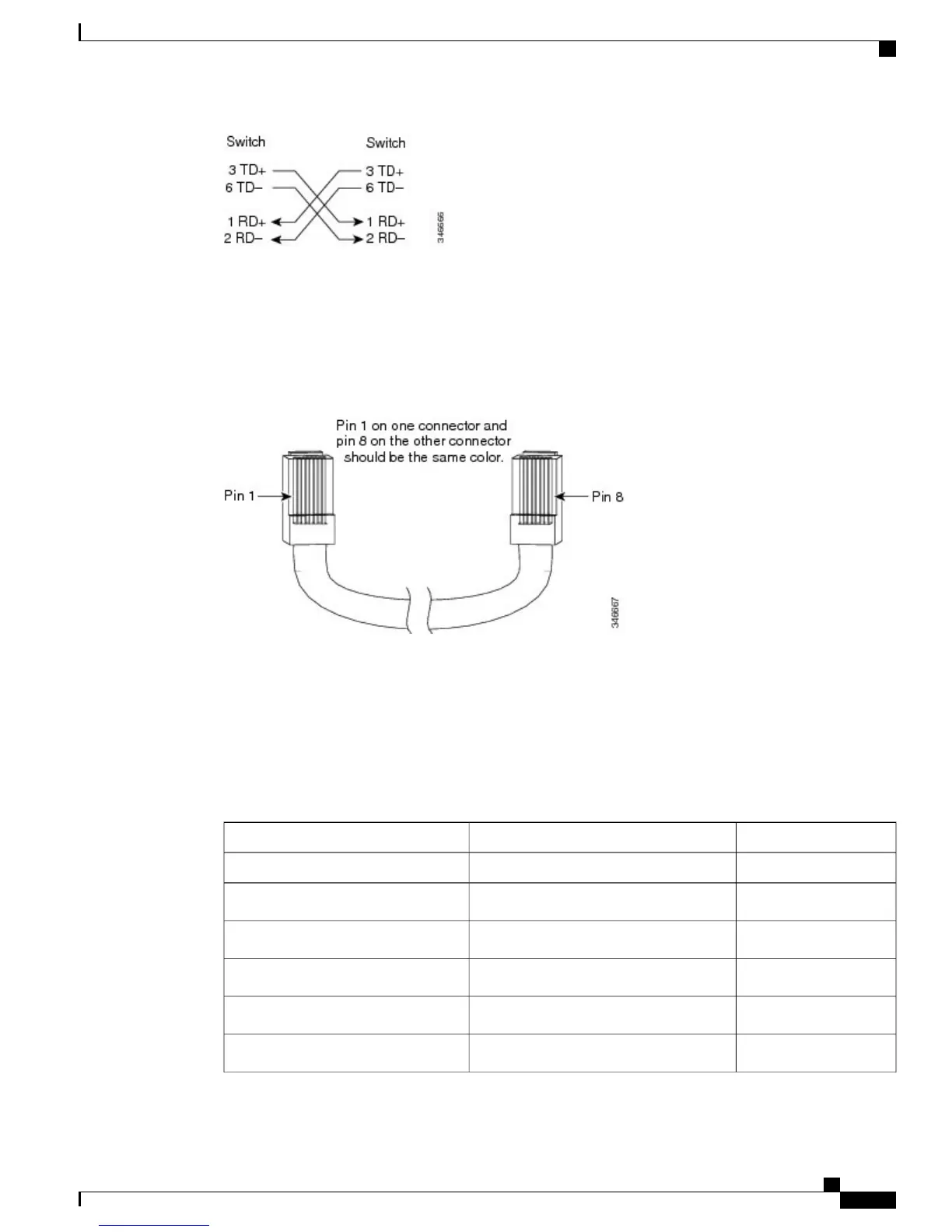

Identifying a Crossover Cable
To identify a crossover cable, compare the two modular ends of the cable. Hold the cable ends side-by-side,
with the tab at the back. The wire connected to the pin on the outside of the left plug should be a different
color from the wire connected to the pin on the inside of the right plug.
Figure 51: Identifying a Crossover Cable
Console Port Adapter Pinouts
The RS-232 console port uses an 8-pin RJ-45 connector. Use an RJ-45-to-DB-9 adapter cable to connect the
switch console port to a console PC. You need to provide a RJ-45-to-DB-25 female DTE adapter to connect
the switch console port to a terminal. You can order the kit (part number ACS-DSBUASYN=) from Cisco.
Table 3: Console Port Signaling with a DB-9 Adapter
Console DeviceRJ-45-to-DB-9 Terminal AdapterSwitch Console Port (DTE)
SignalDB-9 PinSignal
CTS8RTS
DSR6DTR
RxD2TxD
GND5GND
GND5GND
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
63
Connector and Cable Specifications
Console Port Adapter Pinouts

Cisco Catalyst 3560-CX Specifications

General

Model	WS-C3560CX-8PC-S
Switching Capacity	20 Gbps
Product Type	Switch
Manageable	Yes
Layer Supported	Layer 3
Jumbo Frame Support	Yes
Jumbo Frame Size	9198 bytes
Input Voltage	100 - 240 VAC
Operating Temperature	32 to 113°F (0 to 45°C)
Power Supply	Internal
Ports	8 x 10/100/1000 Ethernet Ports
Uplink Ports	2 x 1G SFP
PoE	PoE+
Form Factor	Desktop, Wall-mountable
MAC Address Table Size	16, 000 entries
Power Source	AC
