Cisco Catalyst 3560-CX User Manual

SFP Module Connectors

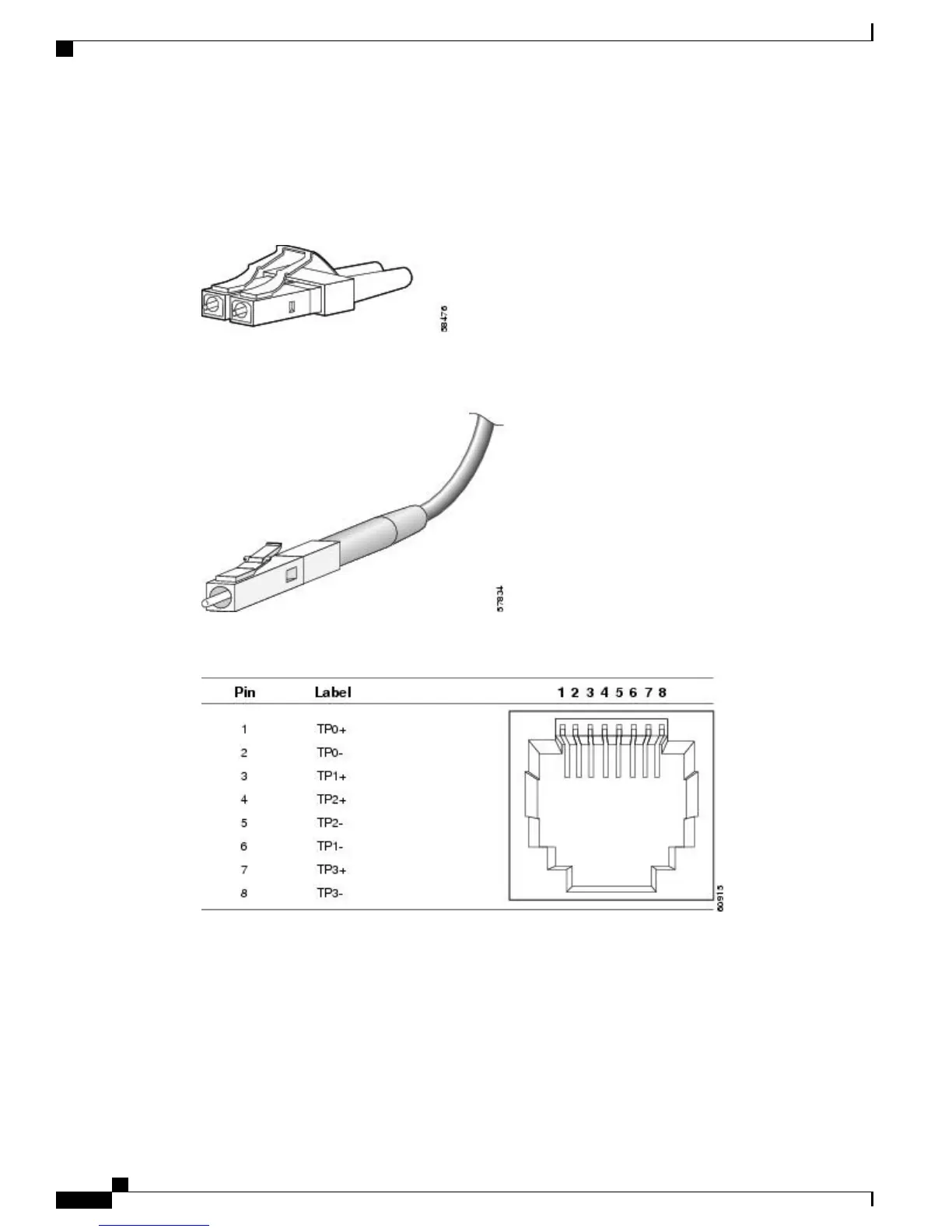

Figure 44: Duplex LC Cable Connector
Figure 45: Simplex LC Cable Connector
Figure 46: Copper SFP Module LC Connector
Cables and Adapters
SFP Module Cables
For cabling specifications, refer to the Cisco SFP and SFP+ Transceiver Module Installation Notes.
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
60
Connector and Cable Specifications
SFP Module Connectors

Cisco Catalyst 3560-CX Specifications

General

Model	WS-C3560CX-8PC-S
Switching Capacity	20 Gbps
Product Type	Switch
Manageable	Yes
Layer Supported	Layer 3
Jumbo Frame Support	Yes
Jumbo Frame Size	9198 bytes
Input Voltage	100 - 240 VAC
Operating Temperature	32 to 113°F (0 to 45°C)
Power Supply	Internal
Ports	8 x 10/100/1000 Ethernet Ports
Uplink Ports	2 x 1G SFP
PoE	PoE+
Form Factor	Desktop, Wall-mountable
MAC Address Table Size	16, 000 entries
Power Source	AC
