Cisco Catalyst 3560-CX User Manual

Do not wall-mount the switch with its front panel facing up. Following safety regulations, wall-mount the
switch with its front panel facing down or to the side, to allow sufficient airflow and to provide easier access
to the cables.
Caution

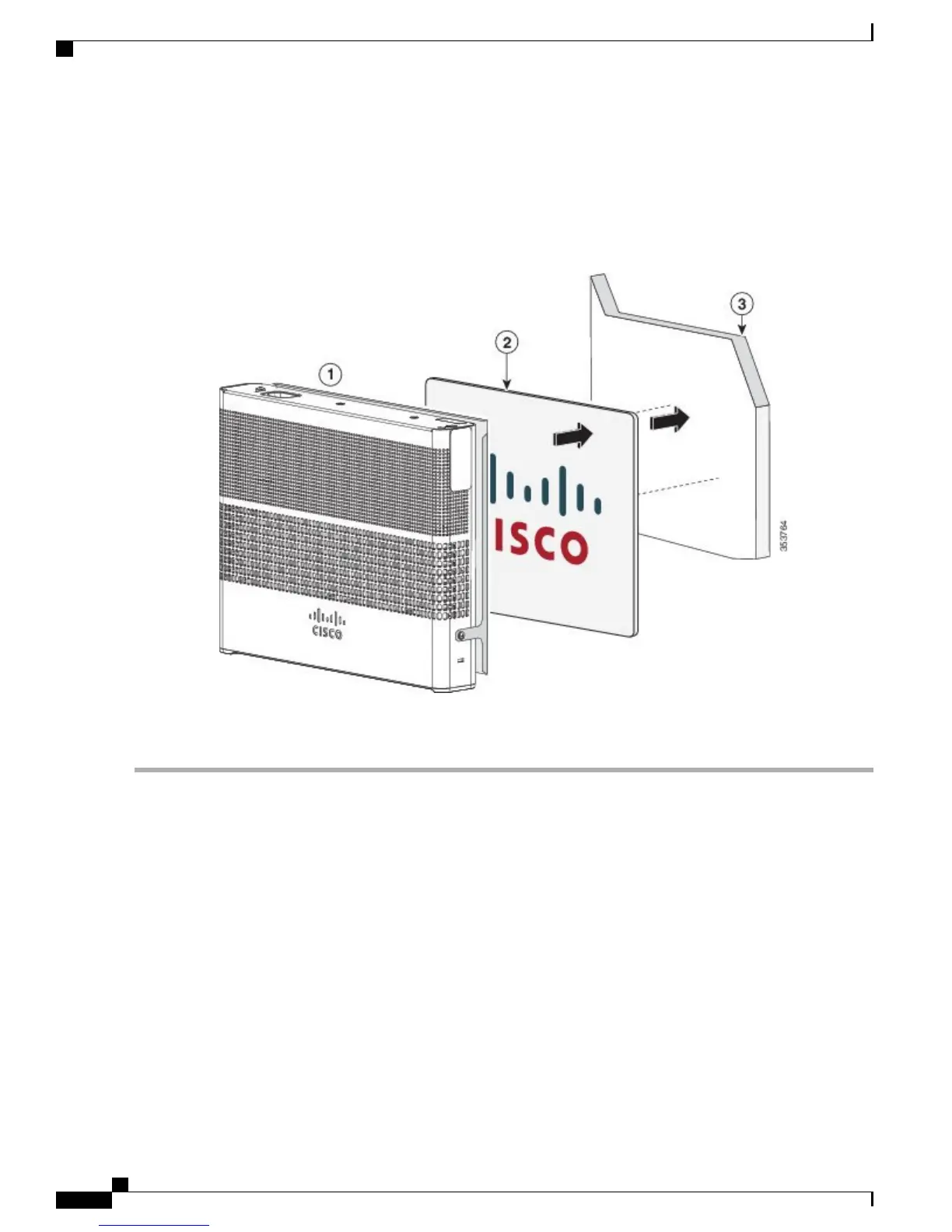

Figure 20: Wall-Mounting with a Magnet
To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in. (7.6 cm) Statement
1076
In a Rack
Installing the switch in a rack requires an optional bracket kit that is not included with the switch. You can
order these kits from your Cisco representative:
•
19-inch rack-mounting brackets (RCKMNT-19-CMPCT=)
•
23- and 24-inch rack-mounting brackets (RCKMNT-23-CMPCT=)
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
28
Switch Installation
In a Rack

Cisco Catalyst 3560-CX Specifications

General

Model	WS-C3560CX-8PC-S
Switching Capacity	20 Gbps
Product Type	Switch
Manageable	Yes
Layer Supported	Layer 3
Jumbo Frame Support	Yes
Jumbo Frame Size	9198 bytes
Input Voltage	100 - 240 VAC
Operating Temperature	32 to 113°F (0 to 45°C)
Power Supply	Internal
Ports	8 x 10/100/1000 Ethernet Ports
Uplink Ports	2 x 1G SFP
PoE	PoE+
Form Factor	Desktop, Wall-mountable
MAC Address Table Size	16, 000 entries
Power Source	AC
