Cisco Catalyst 3560-CX User Manual

Removing the Switch from a DIN Rail
Step 1
Ensure that power is removed from the switch, and disconnect all cables and connectors from the front panel of the
switch.
Step 2
Pull down on the DIN rail mount release tabs. As the clips release, lift the bottom of the switch.

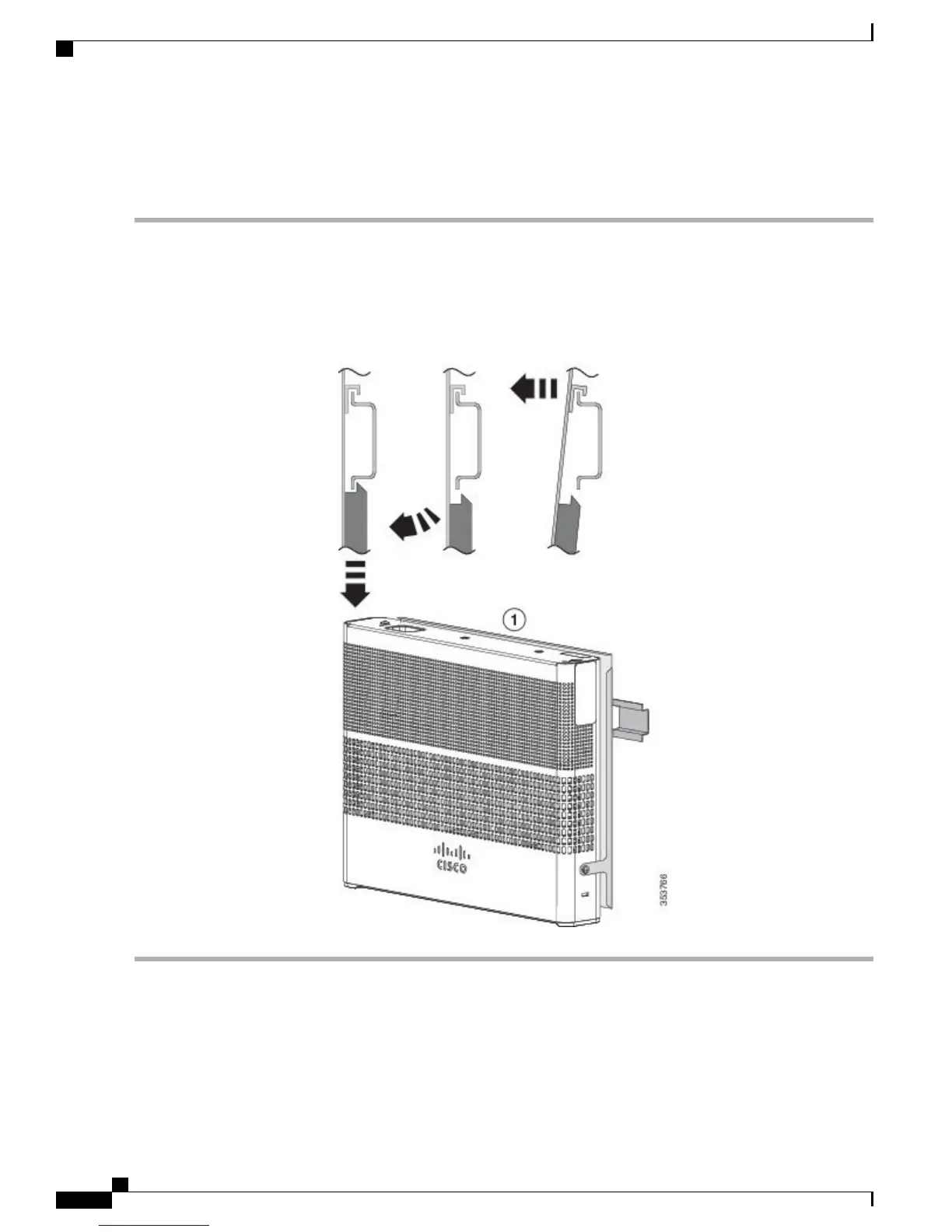

Figure 27: Switch Removal
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
34
Switch Installation
On a DIN Rail

Cisco Catalyst 3560-CX Specifications

General

Model	WS-C3560CX-8PC-S
Switching Capacity	20 Gbps
Product Type	Switch
Manageable	Yes
Layer Supported	Layer 3
Jumbo Frame Support	Yes
Jumbo Frame Size	9198 bytes
Input Voltage	100 - 240 VAC
Operating Temperature	32 to 113°F (0 to 45°C)
Power Supply	Internal
Ports	8 x 10/100/1000 Ethernet Ports
Uplink Ports	2 x 1G SFP
PoE	PoE+
Form Factor	Desktop, Wall-mountable
MAC Address Table Size	16, 000 entries
Power Source	AC
