Appendix B Connector and Cable Specifications
Connector Specifications
B-4
Catalyst 3560 Switch Hardware Installation Guide
78-16057-01

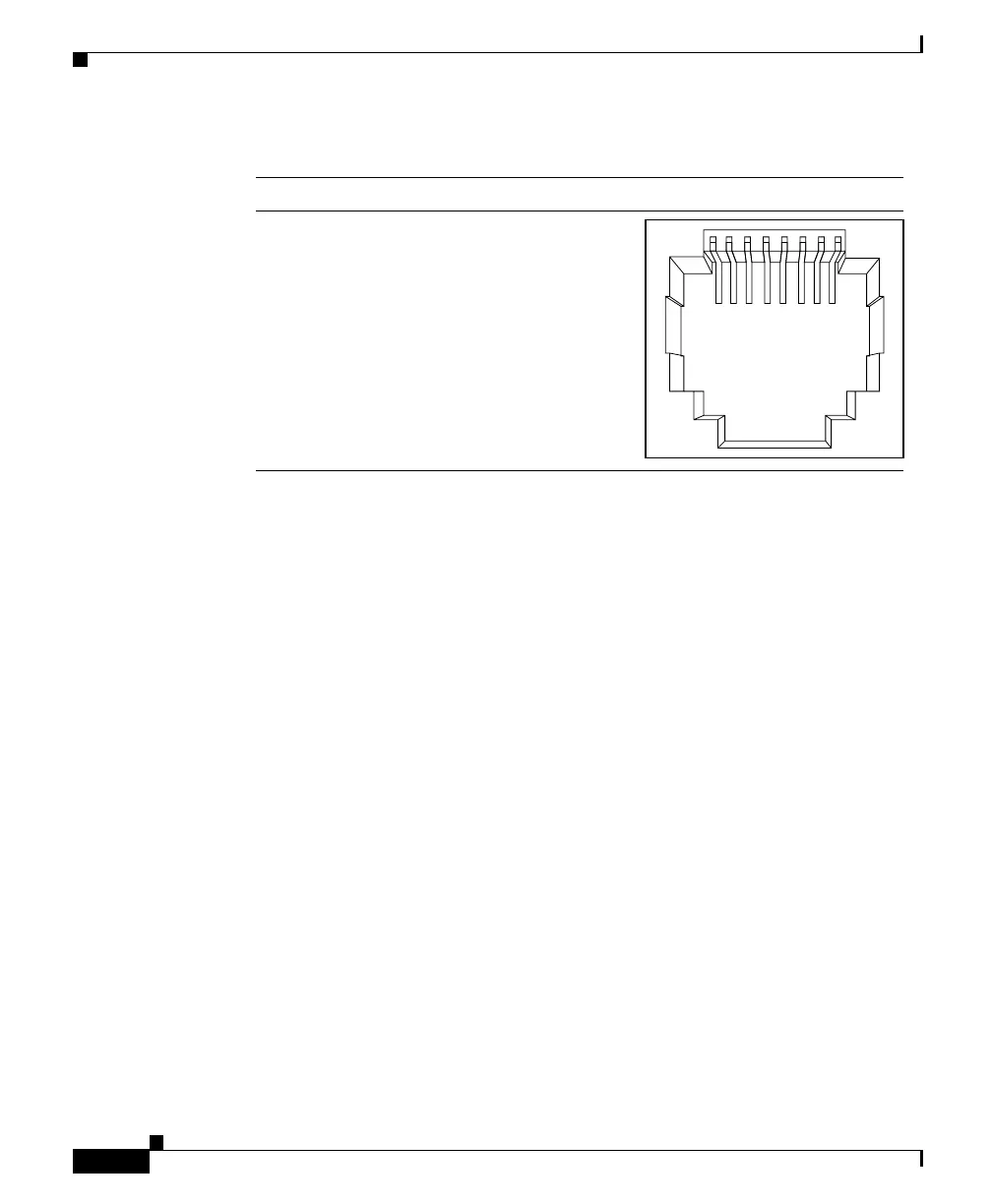

Figure B-3 Copper SFP Module RJ-45 Connector
Console Port
The console port uses an 8-pin RJ-45 connector, which is described in Table B-1
and Table B-2. The supplied RJ-45-to-DB-9 adapter cable is used to connect the
console port of the switch to a console PC. You need to provide a RJ-45-to-DB-25
female DTE adapter if you want to connect the switch console port to a terminal.
You can order a kit (part number ACS-DSBUASYN=) containing that adapter
from Cisco. For console port and adapter pinout information, see Table B-1 and
Table B-2.
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-

Cisco Catalyst 3560 Specifications

General

Category	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Layer	Layer 3
Form Factor	Rack-mountable
RAM	128 MB
Uplinks	4 SFP ports
MAC Address Table Size	12000 entries
Routing Protocol	RIP, OSPF, EIGRP, BGP
Remote Management Protocol	SNMP, Telnet, SSH, HTTP
Features	QoS, VLAN, ACL
Operating Humidity	10% to 85% non-condensing
Ports	24 or 48 10/100/1000 ports
