Cisco Catalyst 3650 Hardware Installation Guide

1-21
Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
Chapter 1 Product Overview
Front Panel
• Two ports labelled 40G1 and 40G2—This labelling represents QSFP+ uplink ports
Figure 1-9 shows an example of an uplink ports LED arrangement representing two SFP and two SFP+
ports (Catalyst 3650-48FD-S switch model).

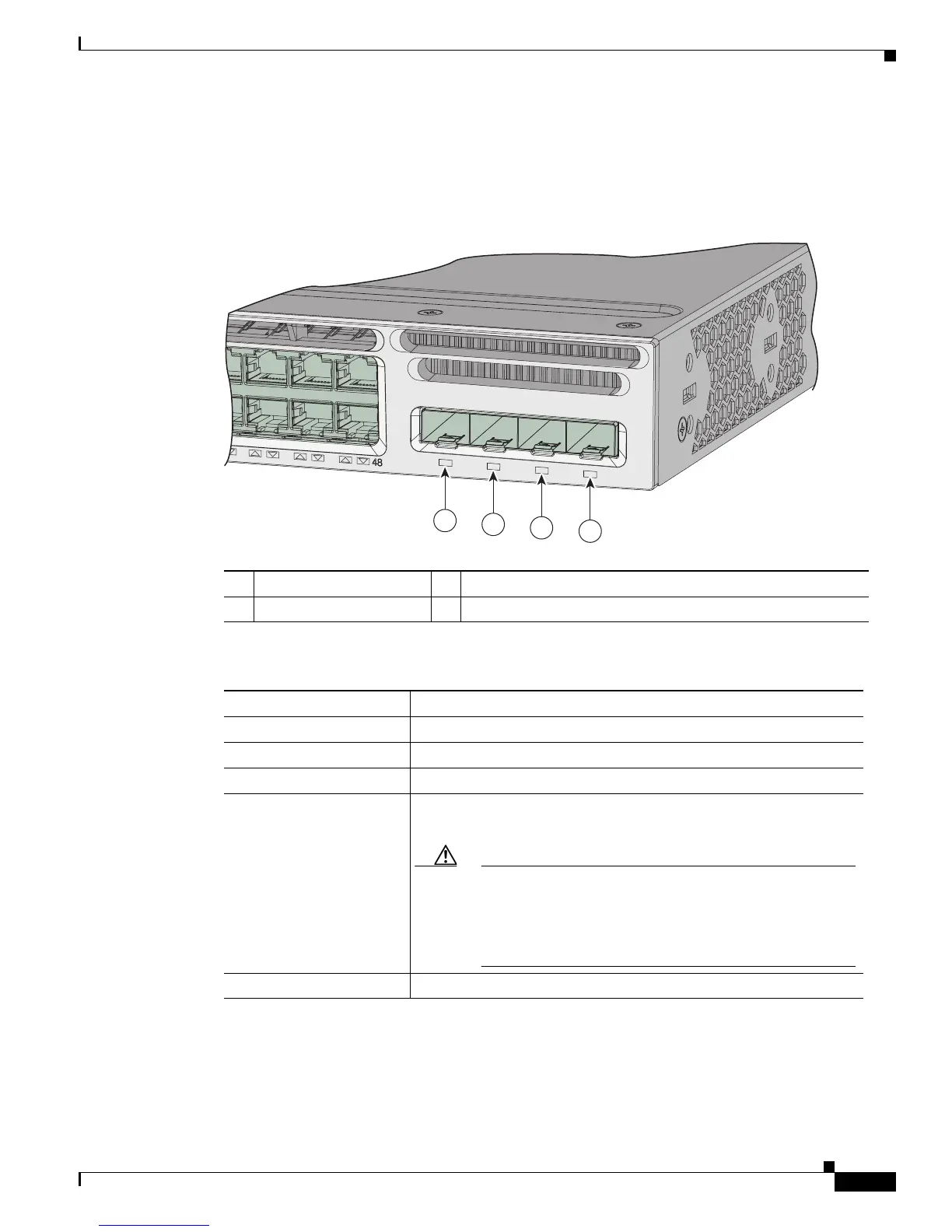

Figure 1-9 Uplink Ports LEDs
1 G1 LED 3 G3, TE3 LED
2 G2 LED 4 G4, TE4 LED
Table 1-9 Uplink Ports LEDs
Color Uplink Ports Link Status
Off Link is off.
Green Link is on, no activity.
Blinking green Activity on a link, no faults.
Blinking amber Link is off due to a fault or because it has exceeded a limit set in the
switch software.
Caution Link faults occur when noncompliant cabling is connected
to an SFP or SFP+ port. Use only standard-compliant
cabling to connect to Cisco SFP and SFP+ ports. You must
remove from the ports any cable or device that causes a
link fault.
Amber Link for the SFP or SFP+ has been disabled.
Catalyst 3650 48PoE+ 2X10G
TE3
G1
G2
G3
G4
TE4
347665
1
2
3
4

Cisco Catalyst 3650 Specifications

General

Switching Capacity	160 Gbps
Uplink Interfaces	4 x 1G SFP or 2 x 10G SFP+
Device Type	Switch
Form Factor	Rack-mountable
Layer	Layer 3
DRAM	4 GB
Flash Memory	4 GB
Operating System	Cisco IOS XE
Model	Catalyst 3650
Ports	24 or 48 10/100/1000 Ethernet ports
Stacking	Yes
Power over Ethernet (PoE)	Yes
Power Supply Options	350W AC
VLANs	4094
