Chapter 9 Configuring Network Address Translation
NAT Overview
Figure 9-6 shows a web server and DNS server on the outside. The FWSM has a static translation for the
outside server. In this case, when an inside user requests the address for ftp.cisco.com from the DNS
server, the DNS server responds with the real local address, 209.165.20.10. Because you want inside
users to use the translated global address for ftp.cisco.com (10.1.2.56) you need to configure DNS reply
modification for the static translation.

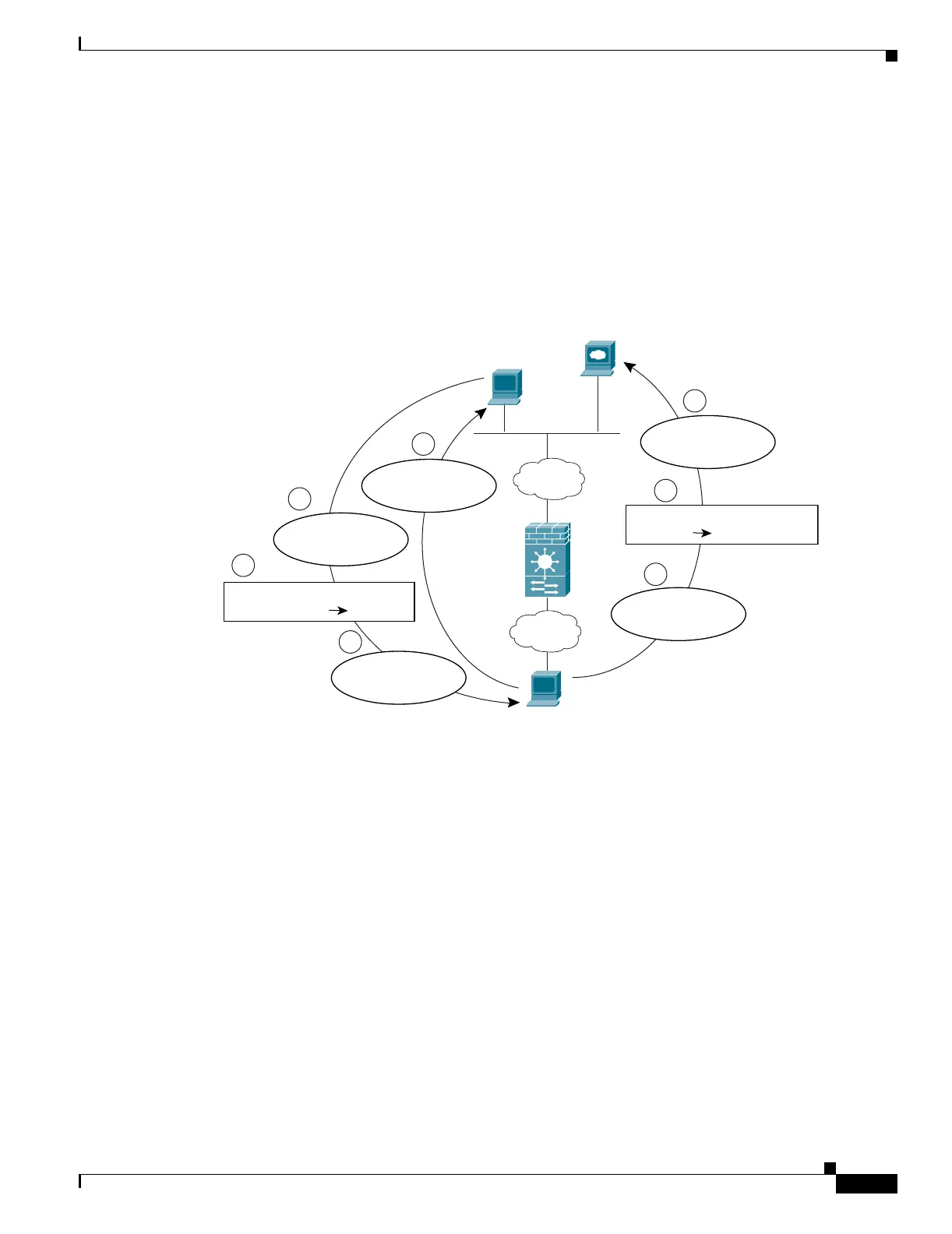

Figure 9-7 DNS Reply Modification Using Outside NAT
See the following command for this example:
FWSM/contexta(config)# static (outside,inside) 10.1.2.56 209.165.201.10 netmask
255.255.255.255 dns
ftp.cisco.com
209.165.201.10
DNS Server
FWSM
Outside
Inside
User
10.1.2.27
Static Translation on Inside to:
10.1.2.56
104644
1
2
7
6
5
4
3
DNS Query
ftp.cisco.com?
DNS Reply
209.165.201.10
DNS Reply Modification
209.165.201.10 10.1.2.56
DNS Reply
10.1.2.56
FTP Request
209.165.201.10
Dest Addr. Translation
209.165.201.1010.1.2.56
FTP Request
10.1.2.56
