Cisco Catalyst 9300 Series Hardware Installation Guide

Minimum Coiled DiameterMinimum Bend RadiusCable LengthCable Part Number
5.20 in. (132 mm)1.6 in. (41 mm)3.28 feet (1.0 m)STACK-T3A-1M
7.17 in. (182 mm)3.2 in. (82 mm)9.84 feet (3.0 m)STACK-T3A-3M
1. With a 0.5 m cable, the minimum coiled diameter is negligible and the cable cannot be physically coiled
without exceeding the bending limit.
Transceiver Module Network Cables
For cabling specifications, refer to the following notes:
• Cisco SFP and SFP+ Transceiver Module Installation Notes
• Cisco 40-Gigabit QSFP+ Transceiver Modules Installation Note
Each port must match the wavelength specifications on the other end of the cable, and the cable must not
exceed the stipulated cable length. Copper 1000BASE-T SFP module transceivers use standard four twisted-pair,
Category 5 cable at lengths up to 328 feet (100 meters).
Cable Pinouts

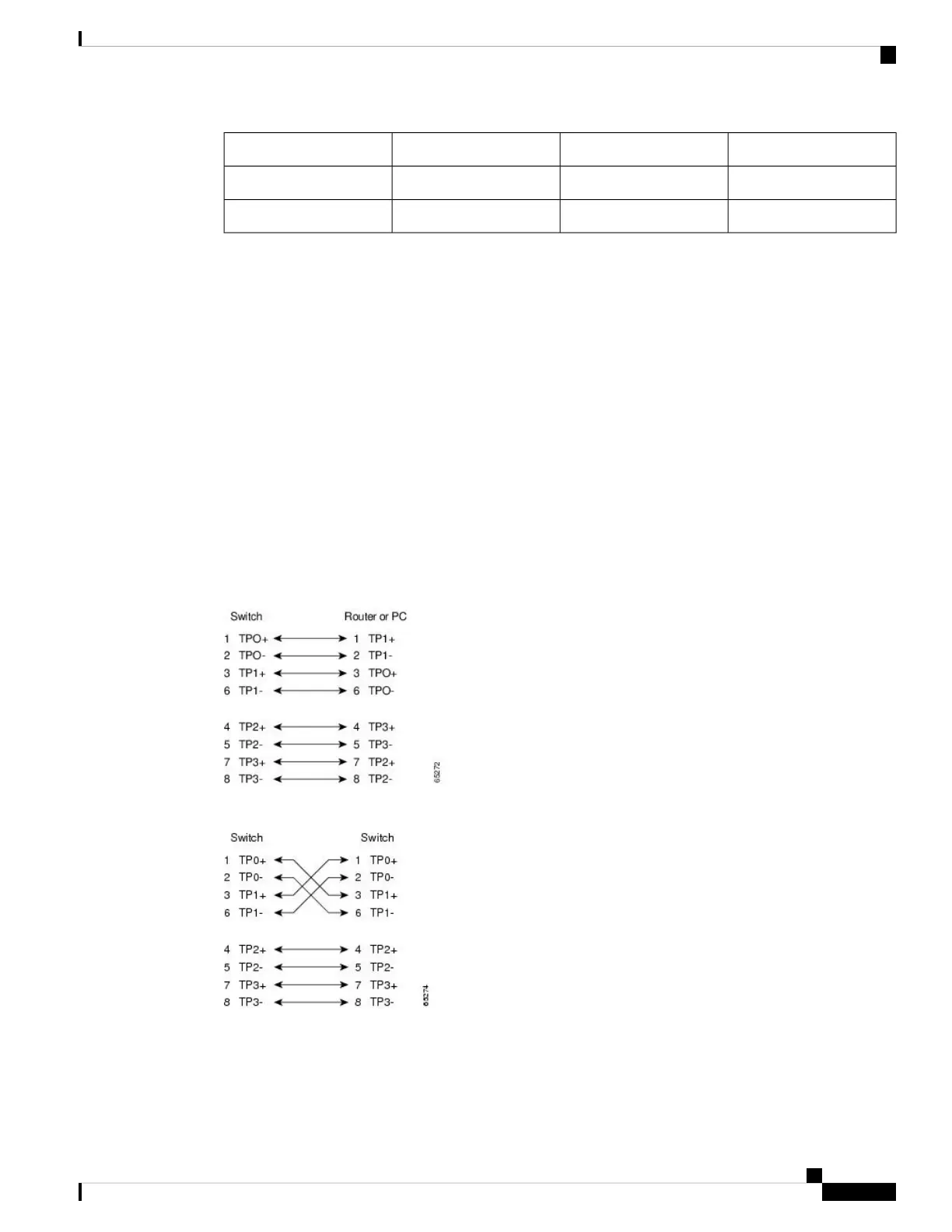

Figure 74: Four Twisted-Pair Straight-Through Cable Schematic
Figure 75: Four Twisted-Pair Semi-Cross Cable Schematic
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
125
Connector and Cable Specifications
Transceiver Module Network Cables

Cisco Catalyst 9300 Series Specifications

General

Operating System	Cisco IOS XE
Model	Cisco Catalyst 9300 Series
Uplink Interfaces	10G, 25G, 40G
Downlink Interfaces	1G
Stacking Bandwidth	480 Gbps
Power Supply	Redundant power supplies
PoE	UPOE
Port Density	Up to 48 ports
Power over Ethernet (PoE)	UPOE, UPOE+
Security Features	MACsec
Management	Cisco DNA Center, CLI, SNMP
Redundancy	Stacking, redundant power supplies, hot-swappable fans
