Front Panel Components of a Cisco Catalyst 9300LM Series Switch
• 24 or 48 downlink ports of one of these types:
• 10 M/100 M/1000 M
• 10 M/100 M/1000 M Cisco UPOE
• Multigigabit Ethernet 100 M/1 GE/2.5 GE/5 GE/10 GE Cisco UPOE
• 1 GE/10 GE/25 GE fixed uplink ports
• USB mini-Type B (console) port
• USB 3.0 Type A connector
• USB Type C connector
• LEDs
• Mode button
• Beacon LED (UID button)

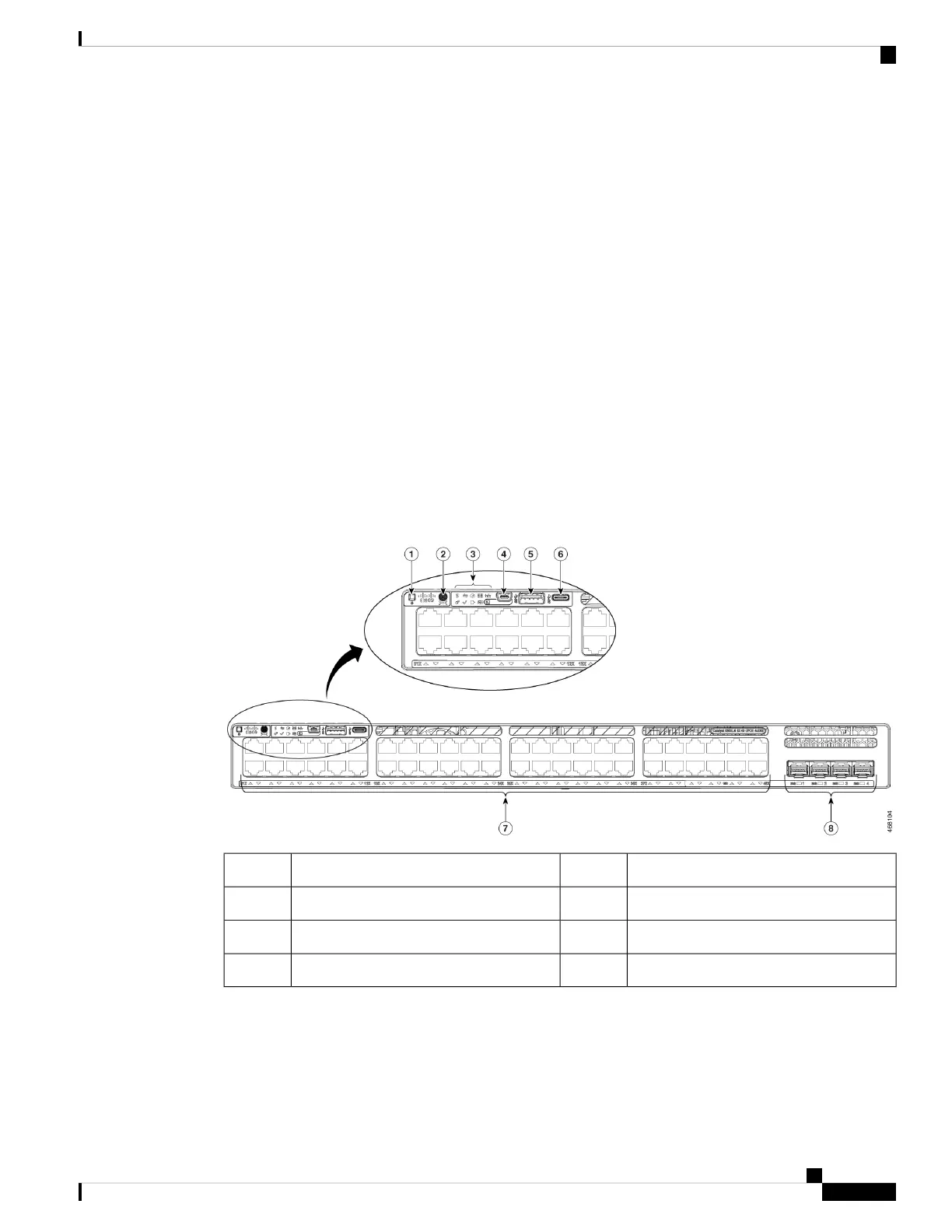

Figure 5: C9300LM-48UX-4Y Switch Front Panel
USB Type A storage port5Beacon LED (UID button)1
USB Type C port6Mode button2
10/100/1000 M UPOE ports7Status LEDs3
Fixed uplink ports8USB mini-Type B (console) port4
Front panel components of a Cisco Catalyst 9300X Series switch
• 12, 24 or 48 downlink ports of one of these types:
• 10 M/100 M/1000 M
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
9
Product Overview
Front Panel Components

Cisco Catalyst 9300 Series Specifications

General

Operating System	Cisco IOS XE
Model	Cisco Catalyst 9300 Series
Uplink Interfaces	10G, 25G, 40G
Downlink Interfaces	1G
Stacking Bandwidth	480 Gbps
Power Supply	Redundant power supplies
PoE	UPOE
Port Density	Up to 48 ports
Power over Ethernet (PoE)	UPOE, UPOE+
Security Features	MACsec
Management	Cisco DNA Center, CLI, SNMP
Redundancy	Stacking, redundant power supplies, hot-swappable fans
