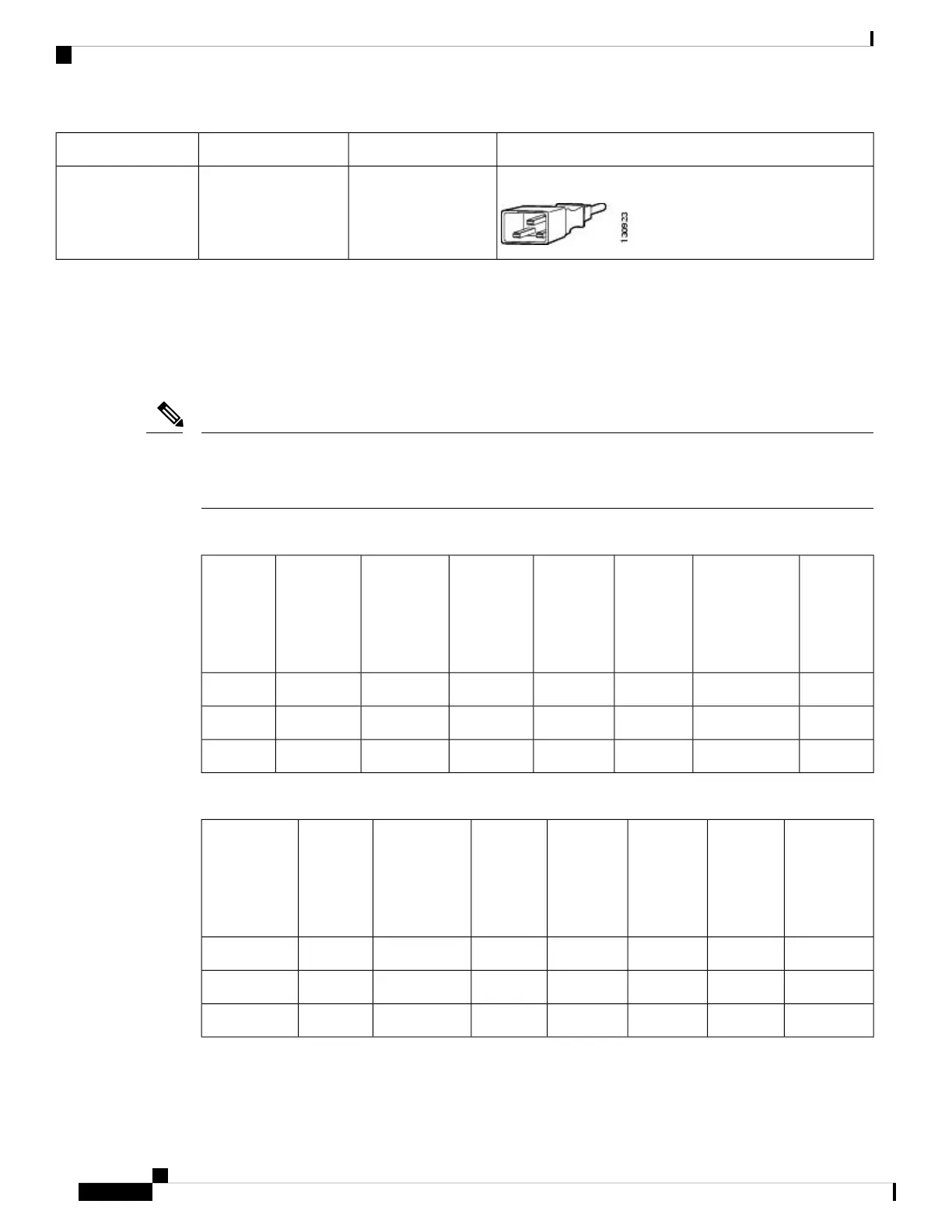

AC Source Plug TypeCordset RatingPart NumberLocale
Figure 63: 130923
20 A, 250 VACCAB-C19-CBNUPS 220V
Chassis and Module Power and Heat Values
The following tables provide the power and heat dissipation data. Unless otherwise noted, the information in
the tables is measured under fully loaded conditions (transceivers installed).
DC output power is the output from the power supply (internal to the system). The AC-input power is the
input from the outlet to the power supply. The percentage difference between the two values is the efficiency
of the power supply.
Note
Table 18: Power Requirements and Heat Dissapation - Fan Tray
Heat Diss.
in BTU /
hr.
Current @ 240VCurrent @
180V
Current @
120V
Current @
90V
DC-Output in
Watts
(Power
Requested)
AC-Input
Power in
Watts
(Power
Allocated)
PID
20472.503.335.006.67540600C9404-FAN
20472.503.335.006.67540600C9407-FAN
26543.244.326.488.64700778C9410-FAN
Table 19: Power Requirements and Heat Dissapation - Supervisor Module
Heat Diss. in
BTU / hr.
Current @
240V
Current @
180V
Current @
120V
Current @
90V
DC-Output in
Watts
(Power
Requested)
AC-Input
Power in
Watts
(Power
Allocated)
PID
15161.852.473.704.94400444C9400-SUP-1
15161.852.473.704.94400444C9400-SUP-1XL
15401.882.513.765.0400444C9400-SUP-1XL-Y
Cisco Catalyst 9400 Series Switches Hardware Installation Guide
130
Specifications
Chassis and Module Power and Heat Values
