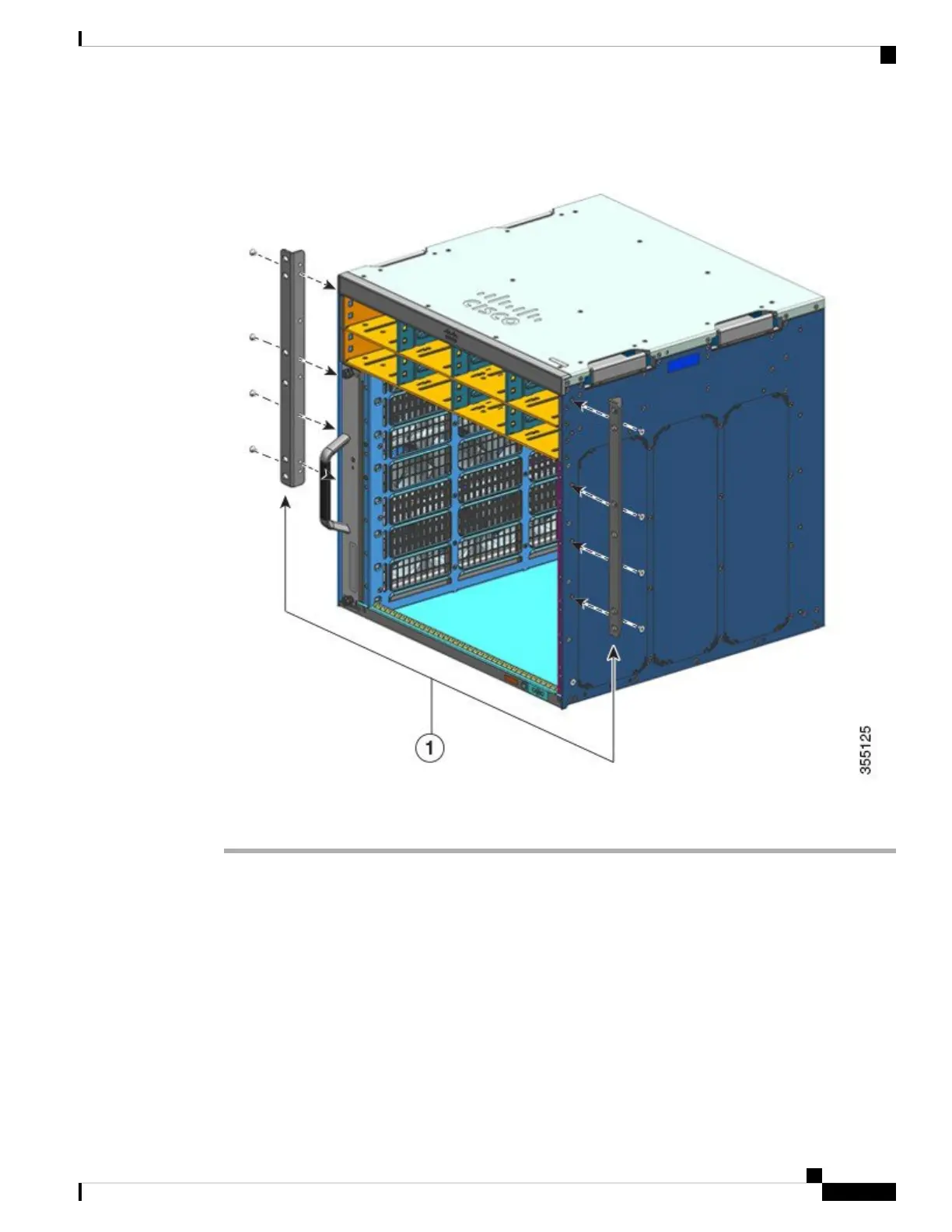

Figure 10: Installing Shelf Kit L Brackets
What to do next
Mount the shelf brackets on the rack.
Installing the Shelf Brackets
Install the shelf brackets before you install the chassis in the rack. The shelf brackets attach directly to the
rack and help support the weight of the chassis while you secure the L brackets to the rack enclosure.
You have to front-mount the shelf brackets.
Cisco Catalyst 9400 Series Switches Hardware Installation Guide
53
Installing the Switch
Installing the Shelf Brackets
