3-27
Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 3 Installing the Content Delivery Engines
Installing the CDEs

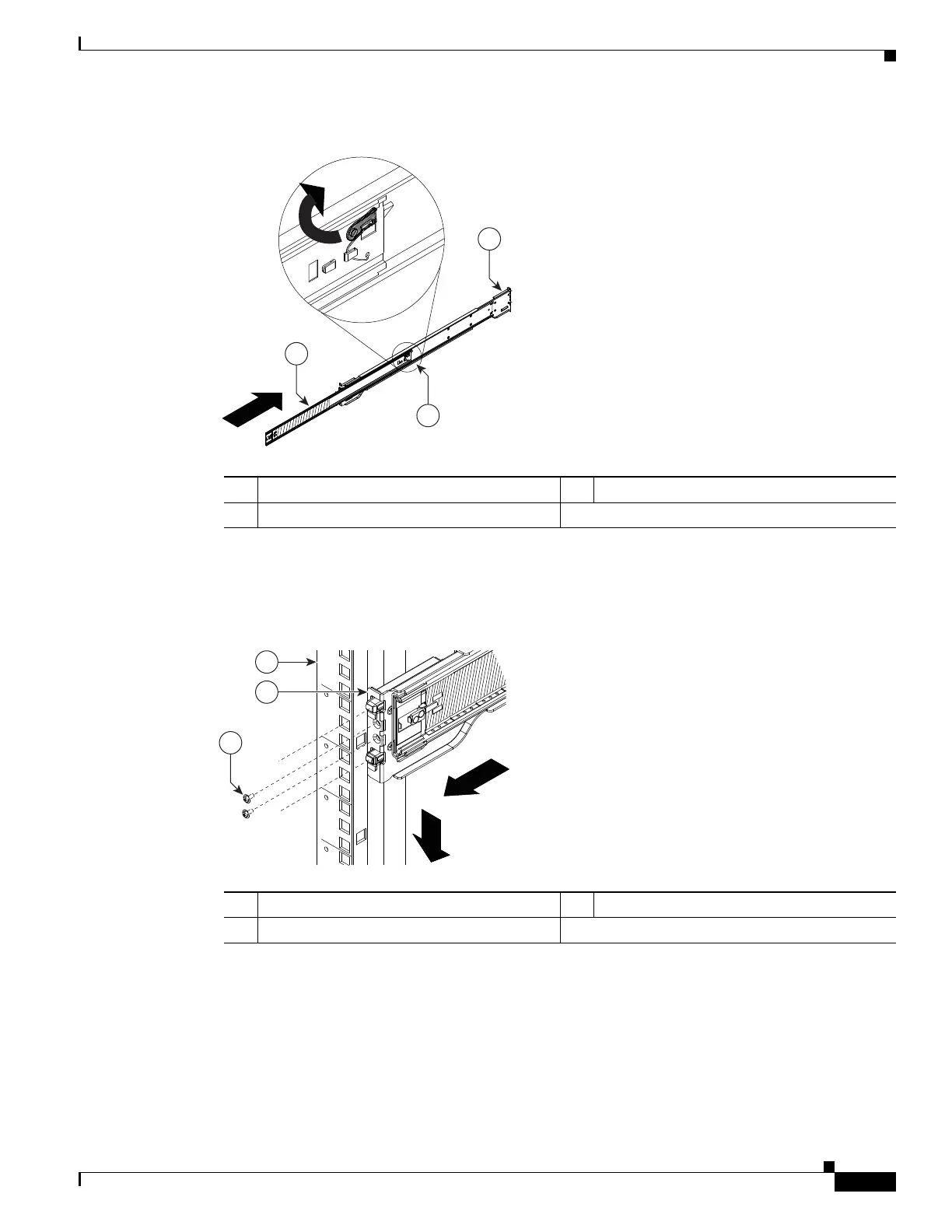

Figure 3-24 Locking the Rev. B Rails
Step 6
Hang the hooks of the rails on the rack holes and press down so they are completely seated. If necessary,
secure the rails with screws.
Figure 3-25 Attaching the Rev. B Rack Rails to the Rack
Step 7
Repeat Step 6 to mount the four ends, extending the rails as necessary.
1 Outer rail assembly 2 Middle rail assembly
3 Locking tab
1 Rack 2 Rail hooks
3 Screws
209589
3
1
2
