E-6
Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Appendix E Configuring VDS-IS CDE280 Disks
Changing the Disk Status Using KVM Console
Step 16 To modify the status of the Virtual Drive Info, from the KVM Console, select Cisco 12G SAS Modular
Raid(Bus 0x04, Dev 0x00) in the Virtual Drive Management window and press F2.
Step 17 Select Create Virtual Drive from the drop-down list and press Enter.

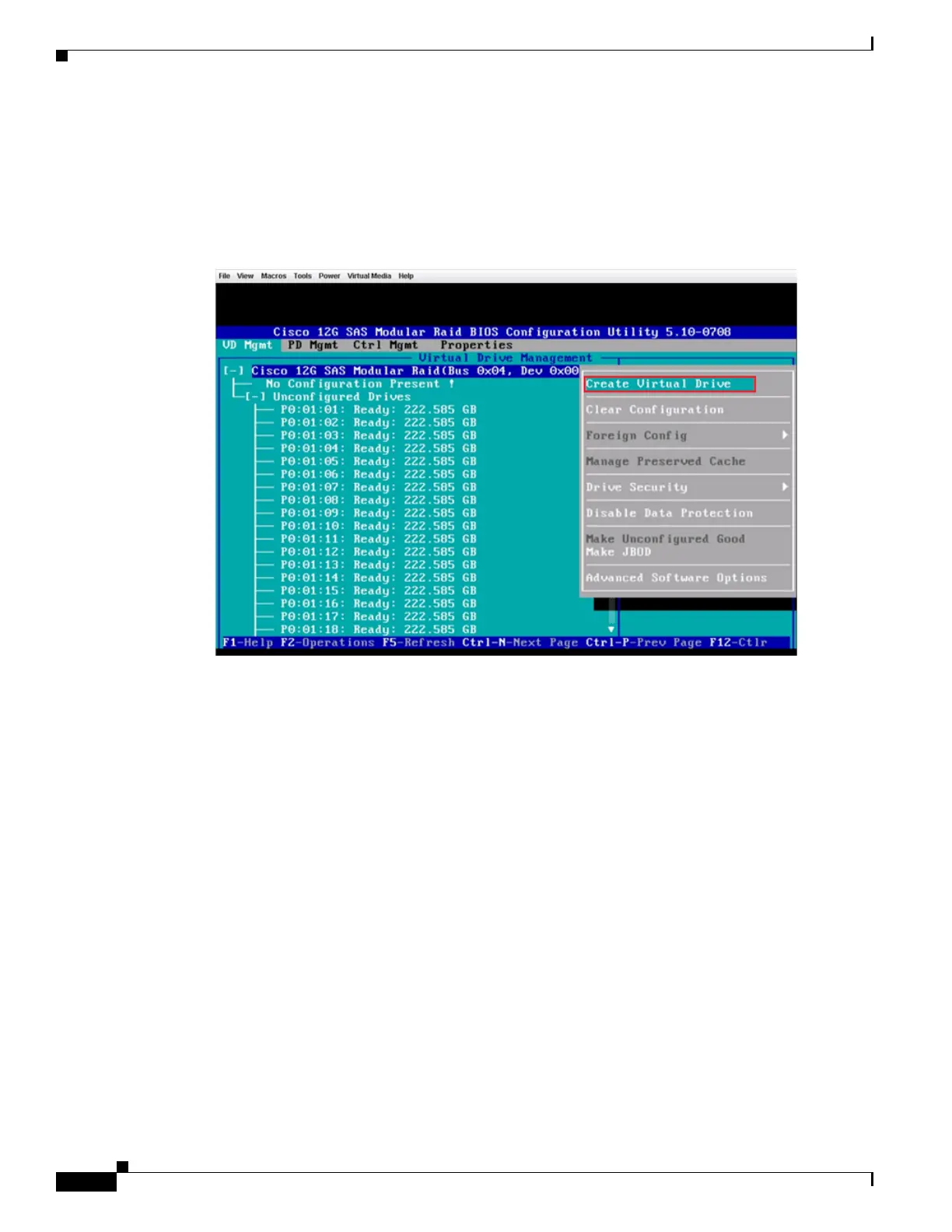

Figure E-7 Creating Virtual Device
Step 18
Select a single disk using Spacebar to create a Virtual Drive under the Virtual Drive Management
window as shown in Figure E-8, and .
