Cisco CDE 220 Series User Manual

1-35
Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
CDE250 2A4

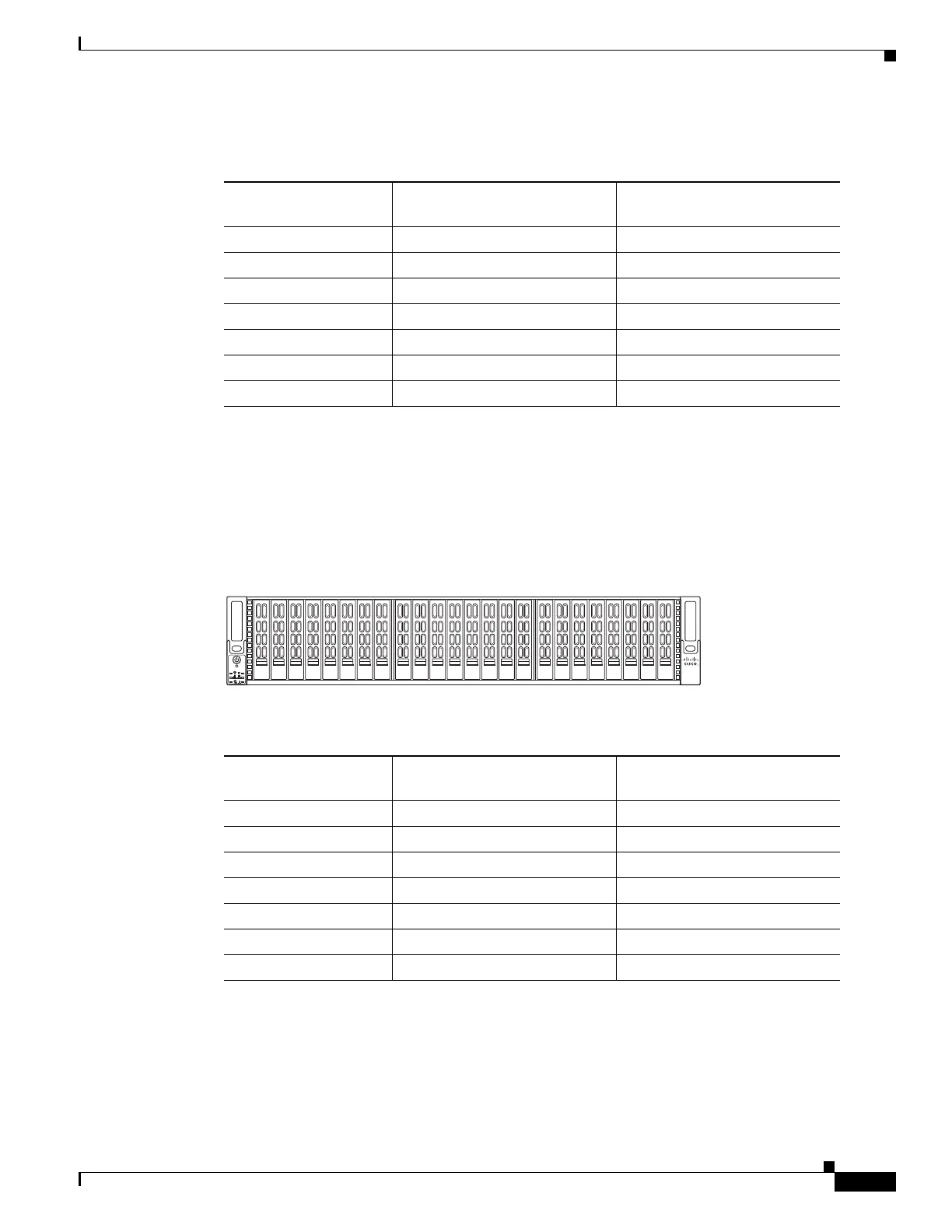

Figure 1-24 is a front view of the CDE250 2A4 showing the location of the storage drives. Table 1-29
lists the CDE250 2A4 PCI expansion cards and their corresponding PCI slot numbers (see Figure 1-9 to
see the location of the PCI expansion slots).
Figure 1-24 CDE250 2A4 Drives
CDE250 2A2
Figure 1-25 is a front view of the CDE250 2A2 showing the location of the storage drives. Table 1-30
lists the CDE250 2A2 PCI expansion cards and their corresponding PCI slot numbers (see Figure 1-9 to
see the location of the PCI expansion slots).
Table 1-28 CDE220 2S3I-F Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—dual fiber 5/0 6/0
3 NIC—dual fiber 3/0 4/0
4— —
5 NIC—dual fiber 7/0 8/0
6 NIC—dual fiber 9/0 10/0
7— —
RESET
2
54339
1 2 3 4 5 6 7 8 9 10111213141516 1718192021222324
Table 1-29 CDE250 2A4 PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—dual (10GE) fiber eth6 eth7
3— —
4— —
5— —
6 NIC—dual (10GE) fiber eth8 eth9
7 NIC—quad copper eth2 eth3 eth4 eth5
