Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features

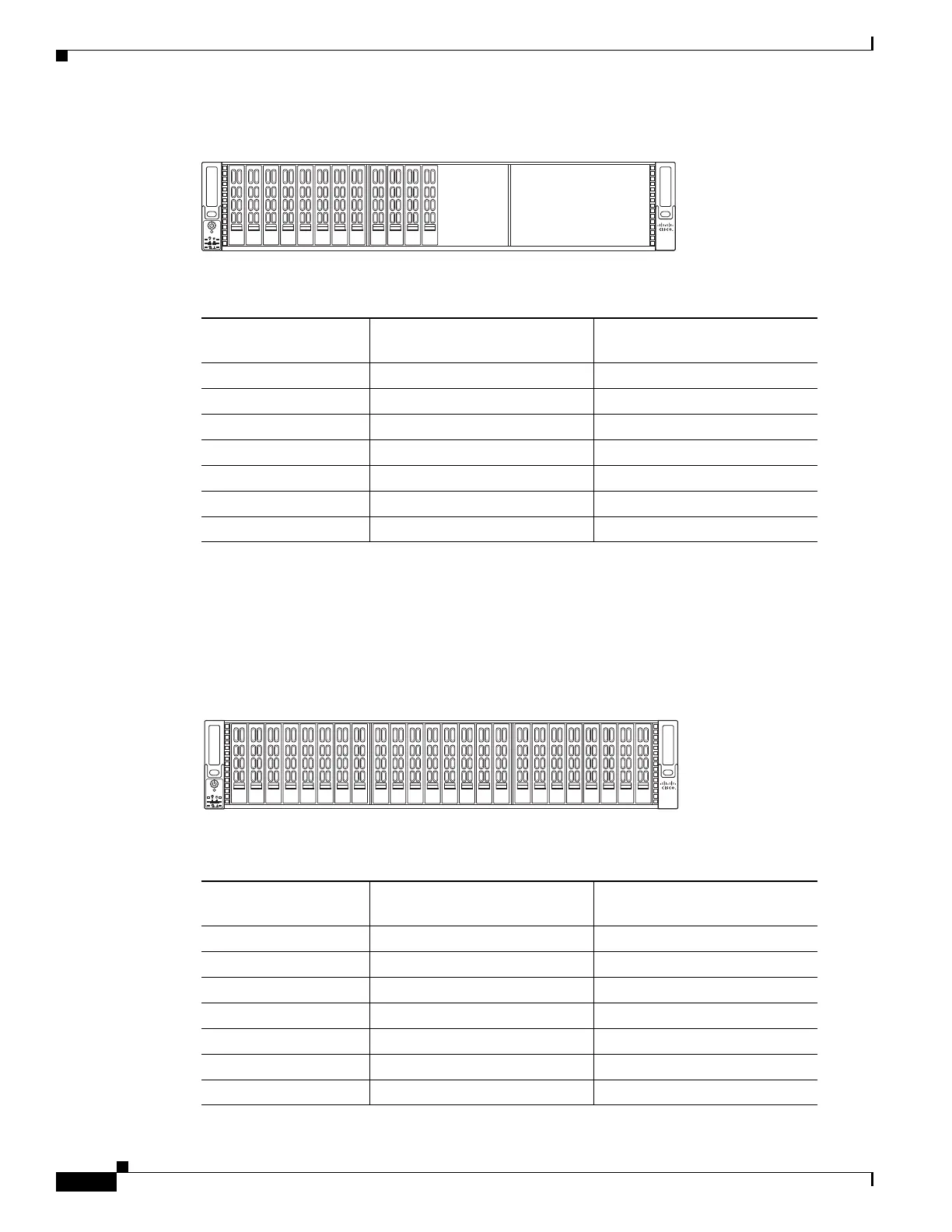

Figure 1-25 CDE250 2A2Drives
CDE250 2G3
Figure 1-26 is a front view of the CDE250 2G3 showing the location of the storage drives. Table 1-31
lists the CDE250 2G3 PCI expansion cards and their corresponding PCI slot numbers (see Figure 1-9 to
see the location of the PCI expansion slots).
Figure 1-26 CDE250 2G3 Drives
382852
RESET
1 2345678 9101112
Table 1-30 CDE250 2A2 PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—dual (10GE) fiber eth6 eth7
3— —
4— —
5— —
6 NIC—dual (10GE) fiber eth8 eth9
7 NIC—quad copper eth2 eth3 eth4 eth5
RESET
2
54339
1 2 3 4 5 6 7 8 9 10111213141516 1718192021222324
Table 1-31 CDE250 2G3 PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—dual (10GE) fiber eth6 eth7
3— —
4— —
5— —
6 NIC—dual (10GE) fiber eth8 eth9
7 NIC—quad copper eth2 eth3 eth4 eth5
