Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 3 Installing the Content Delivery Engines
Installing the CDEs

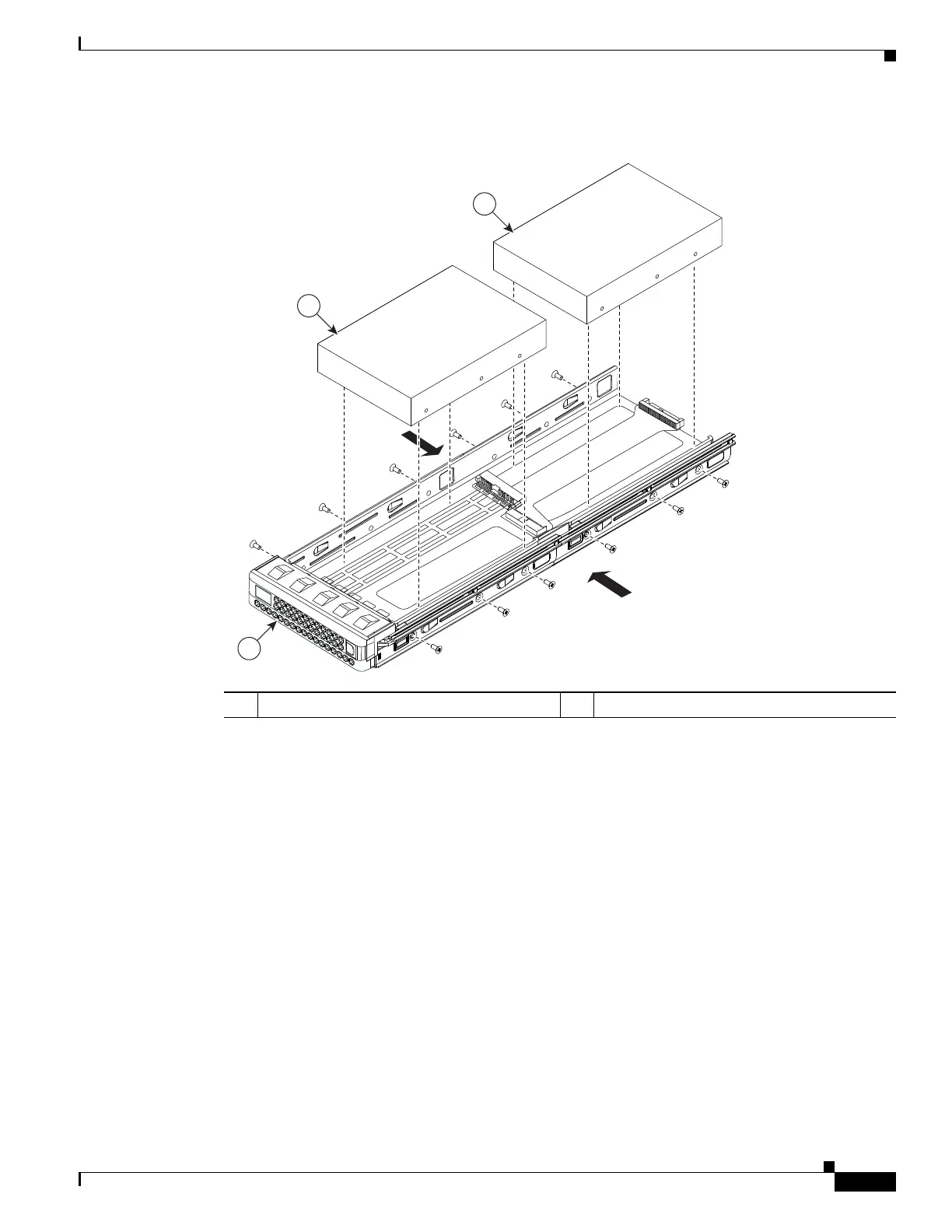

Figure 3-4 Installing a Storage Drive into the Storage Drive Tray
Step 5
Carefully align the mounting holes in both the drive tray and the storage drive.
Step 6 Secure the storage drive to the tray using six screws (see Figure 3-4).
Step 7 Replace the drive tray into the chassis. Make sure to close the drive tray handle to lock the drive tray into
place (see Figure 3-5).
1 Storage drive tray 2 Storage drive
