100-Gb Network Module (Two Ports, Single Wide)
The following figure shows the front panel of the 100-Gb network module (FPR9K-NM-2X100G). The
FPR9K-NM-2X100G is a single-wide module that supports hot swapping. The two ports are numbered left
to right.
Make sure you have the correct firmware package and software version installed to support this network
module. For instructions on how to verify your firmware package version and to upgrade the firmware if
necessary, see the Cisco Firepower 4100/9300 FXOS Firmware Upgrade Guide. See Cisco Firepower 4100/9300
FXOS Compatibility for the software compatibility matrix.
Note

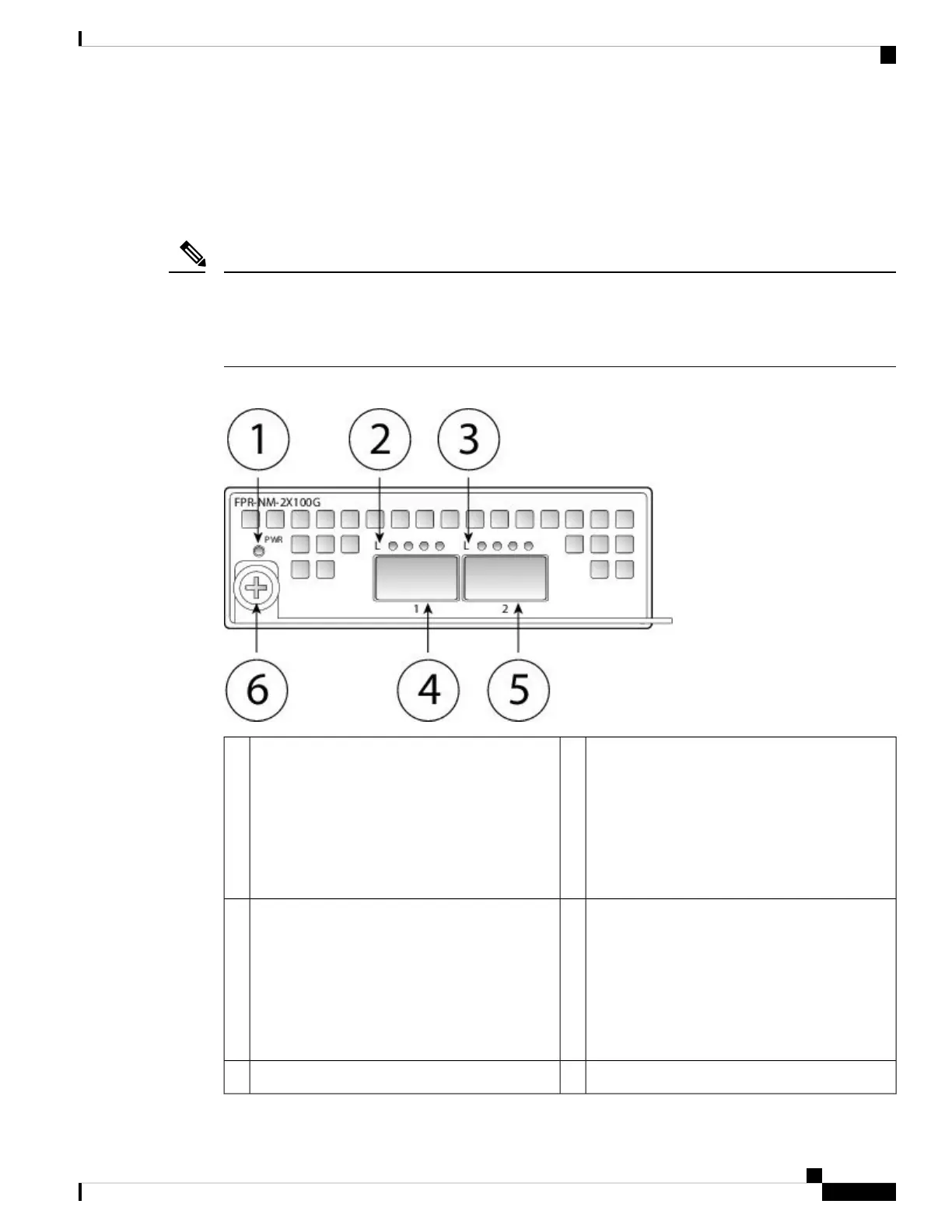

Figure 11: FPR9K-NM-2X100G
Network activity LEDs
Off—No connection or port is not in use.
Amber—No link or network failure.
Green—Link up.
Green, flashing—Network activity.
2Power LED1
Ethernet X/14Network activity LEDs
Off—No connection or port is not in use.
Amber—No link or network failure.
Green—Link up.
Green, flashing—Network activity.
3
Captive screw/handle6Ethernet X/25
Cisco Firepower 9300 Hardware Installation Guide
19
Overview
100-Gb Network Module (Two Ports, Single Wide)
