Appendix B Installation In a Hazardous Environment
Installing the Switch
To attach the switch to a DIN rail, follow these steps.
Step 1 Use a tool such as a flathead screw driver to press in the space next to the tab on each of the latches and
turn the screw driver clockwise. See
Figure B-19.

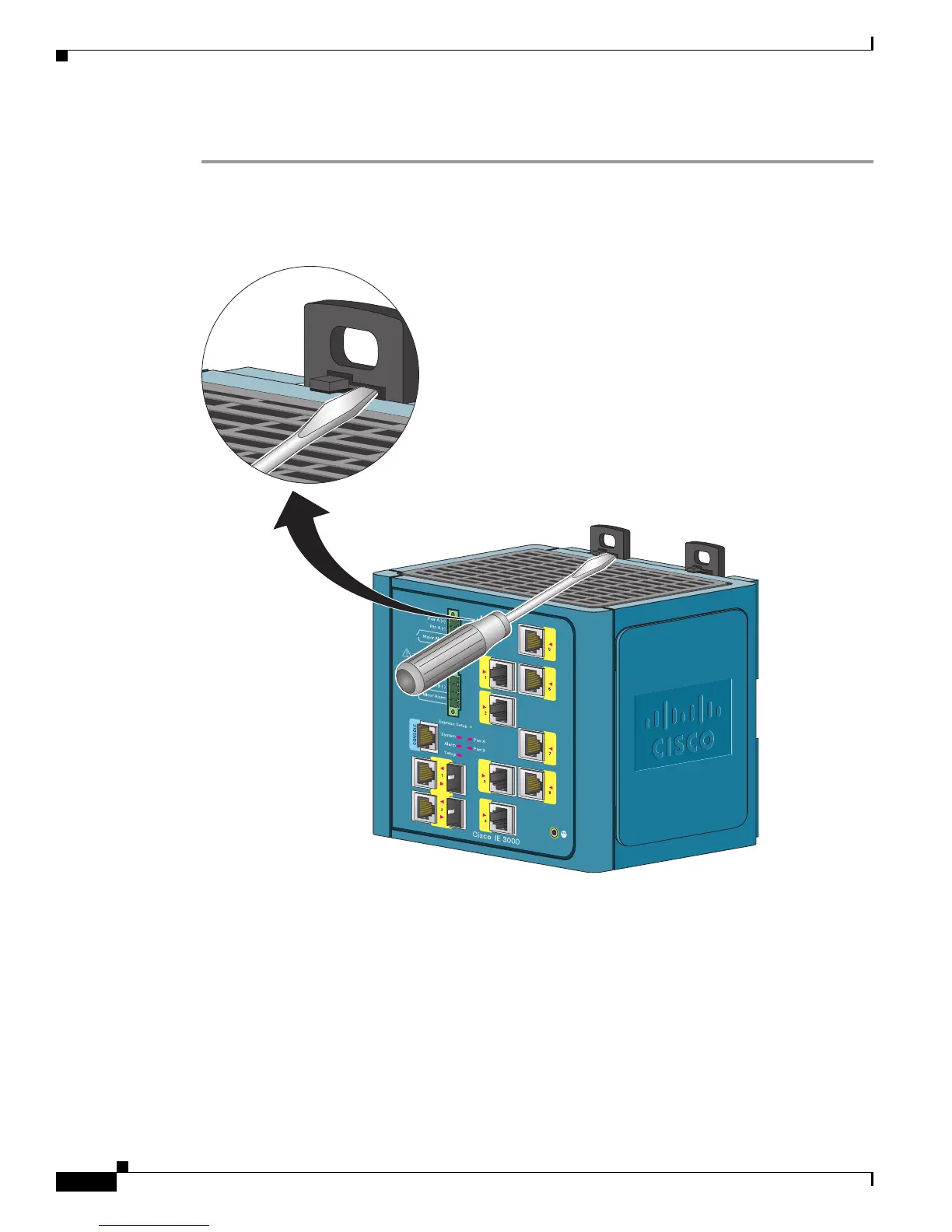

Figure B-19 Unlock the Switch Latch
270302
