Chapter 2 CTC Operations
Displaying ML-Series Ethernet Statistics on CTC

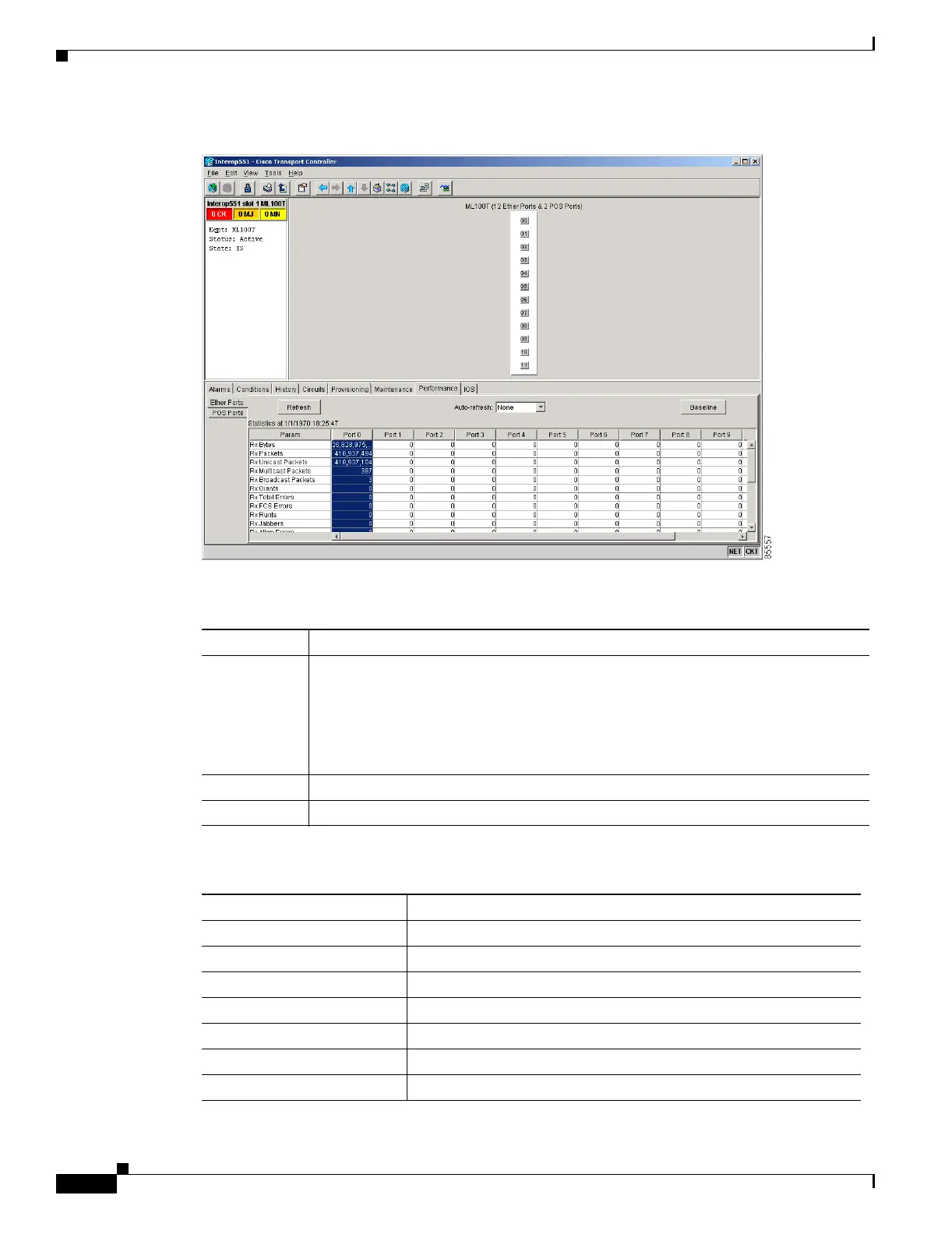

Figure 2-1 Displaying ML-Series Ethernet Statistics
Table 2-1 ML-Series Ethernet Statistics Fields and Buttons
Button or Field Description
Baseline
Resets the software counters (in that particular CTC client only) temporarily to zero
without affecting the actual statistics on the card. From that point on, only the delta
in counters are displayed by this CTC. These new baselined counters are shown only
as long as the user displays the Performance window. If the user navigates to another
CTC window and comes back to the Performance window, the true actual statistics
retained by the card are shown.
Refresh
Queries the current values from the card and updates the CTC display.
Auto-Refresh
Sets a time interval for the automatic refresh of statistics.
Table 2-2 Ethernet Parameters
Parameter Meaning
Rx Bytes Number of bytes received since the last counter reset
Rx Packets Number of packets received since the last counter reset
Rx Unicast Packets Number of unicast packets received
Rx Multicast Packets Number of multicast packets received
Rx Broadcast Packets Number of broadcast packets received
Rx Giants Number of packets received that are greater than 1530 bytes in length
Rx Total Errors Total number of receive errors
