Cisco ONS 15454 Procedure Guide, R4.0
March 2003
Chapter 1 Install the Shelf and Backplane Cable
NTP-A9 Install the Electrical Card Cables on the Backplane
DLP-A25 Install Coaxial Cable With BNC Connectors
Step 1 Place the BNC cable connector over the desired connection point on the backplane.
Figure 1-21 on page 1-50 shows how to connect a coaxial cable to the BNC EIA using a right-angle BNC
cable connector.

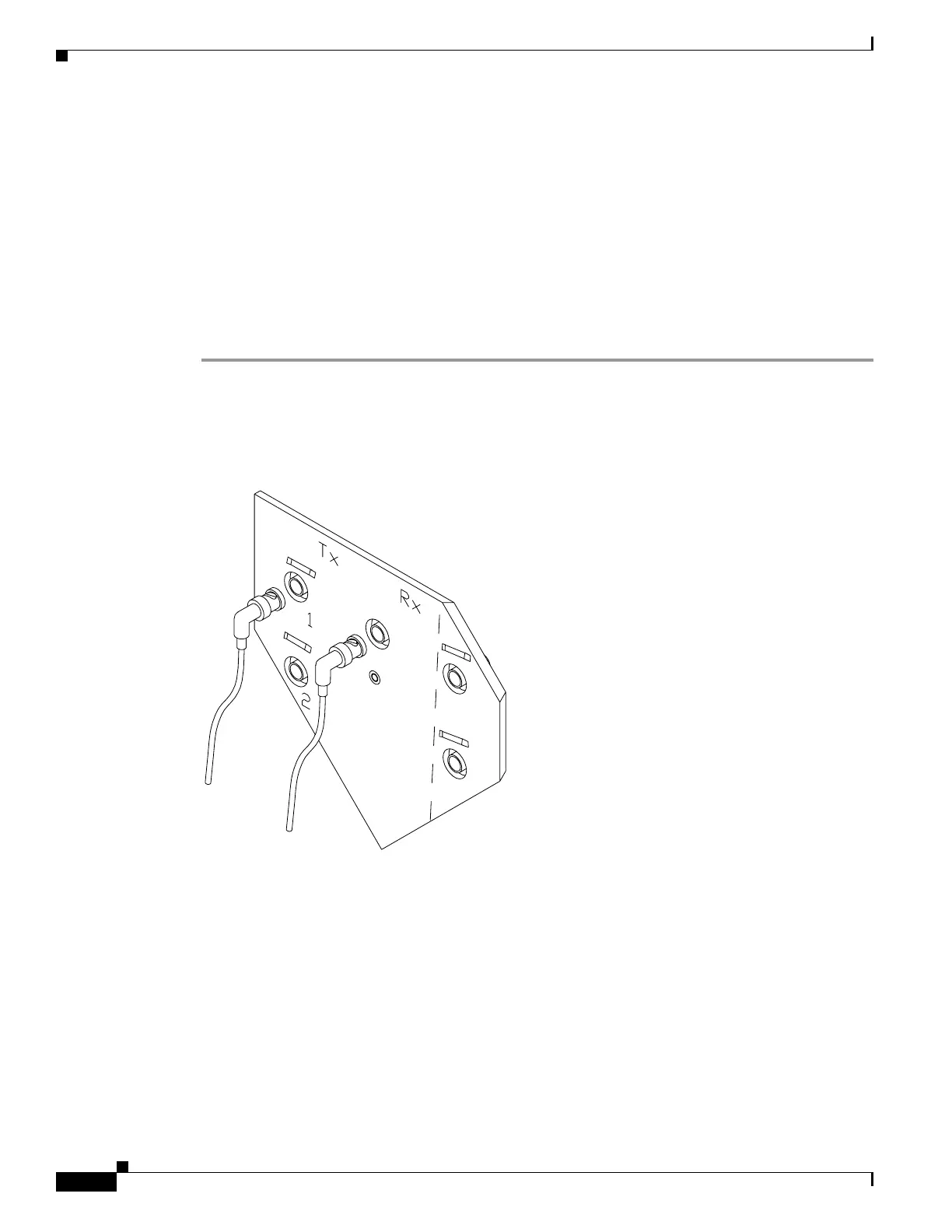

Figure 1-21 Using a Right-Angle Connector to Install Coaxial Cable with BNC Connectors
Step 2
Position the cable connector so that the slot in the connector is over the corresponding notch at the
backplane connection point.
Step 3 Gently push the connector down until the notch backplane connector slides into the slot on the cable
connector.
Step 4 Turn the cable connector clockwise to lock it into place.
Step 5 Tie wrap or lace the cables to the EIA according to Telcordia standards (GR-1275-CORE) or local site
practice.
Step 6 Route the cables to the nearest side of the shelf assembly through the side cutouts according to local site
practice. The rubber-coated edges of the side cutouts prevent the cables from chafing.
Purpose This task installs the coaxial cable with BNC connectors.
Tools/Equipment None
Prerequisite Procedures DLP-A12 Install a BNC or High-Density BNC EIA, page 1-17
Required/As Needed Required if you are using DS3-12, DS3XM-6, or EC-1 cards and are using
a non-high-density BNC interface
Onsite/Remote Onsite
Security Level None
32075
