Cisco PenTeleData 8800 Series Deployment Guide

Cisco IP Phone 8861 and 8865 Wireless LAN Deployment Guide
120

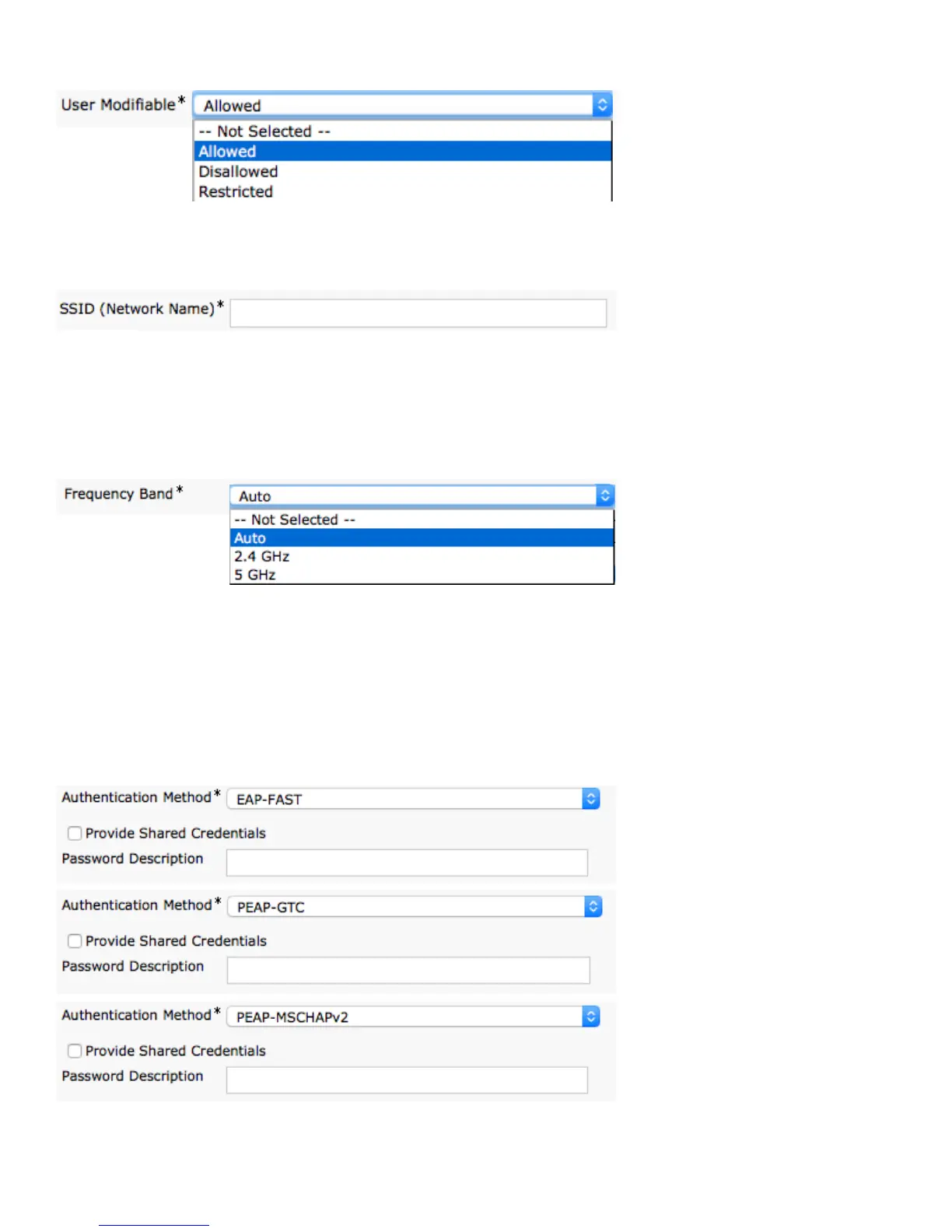

• Enter an SSID containing up to 32 ASCII characters.
• Select the desired Frequency Band option.
• Auto = Give preference to 5 GHz channels, but operates on both 5 GHz and 2.4 GHz channels
• 2.4 GHz = Operates on 2.4 GHz channels only
• 5 GHz = Operates on 5 GHz channels only
• Select the desired Authentication Method option.
• If EAP-FAST, PEAP-MSCHAPv2, or PEAP-GTC is selected then the option to enter shared credentials (Username
and Password) is available.
• If Provide Shared Credentials is not checked, then the Username and Password will need to be configured locally on
the Cisco IP Phone 8861 and 8865 by the admin or user.

Cisco PenTeleData 8800 Series Specifications

General

Brand	Cisco
Model	PenTeleData 8800 Series
Category	IP Phone
Language	English
