Chapter 9 Removal and Replacement Procedures
Handling SPAs

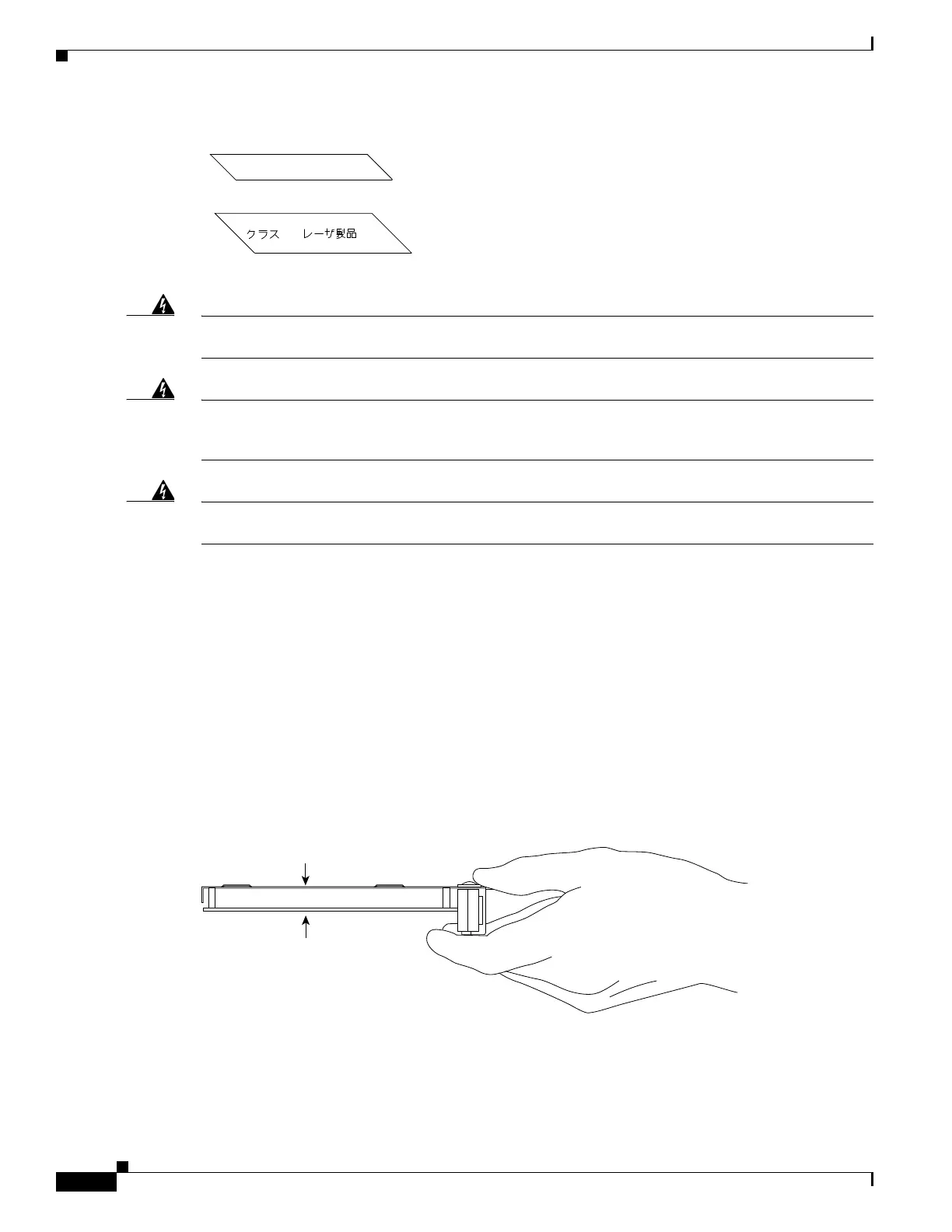

Figure 9-15 Class 1 Laser Warning Labels for SPA Ports
Warning
Class 1 laser product.
Statement 1008
Warning
Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into
beams or view directly with optical instruments.
Statement 1051
Warning
Class 1 LED product.
Statement 1027
Handling SPAs
Each SPA circuit board is mounted to a metal carrier and is sensitive to electrostatic discharge (ESD)
damage.
Always handle the SPA by the carrier edges and handle; never touch the SPA components or connector
pins. (See Figure 9-16.)
When a subslot is not in use, a SPA blank filler plate must fill the empty subslot to allow the chassis to
conform to electromagnetic interference (EMI) emissions requirements and to allow proper airflow
across the installed modules. If you plan to install a SPA in a subslot that is not in use, you must first
remove the SPA blank filler plate.
Figure 9-16 Handling a SPA
PRODUIT LASER DE CLASSE 1
CLASS 1 LASER PRODUCT
LASERPRODUKT DER KLASSE 1
PRODUCTO LASER CLASE 1
1
H6655
H6420
Metal carrier
Printed circuit board
