Cisco SCE 8000 User Manual

2-10
Cisco SCE8000 GBE Installation and Configuration Guide
Chapter 2 Introduction to the Cisco SCE 8000 10 GBE Platform
The 1-Port 10 GBE SPA Interface Module
The 1-Port 10 GBE SPA Interface Module
The Cisco SCE 8000-SIP is installed in slot 3 of the Cisco SCE 8000 chassis. It hosts up to four
single-width, single-height 1-Port 10 GBE SPA interface modules, but in the Cisco SCE 8000, it must
be configured with either two 1-Port 10 GBE SPAs (in the top two subslots) or four 1-Port 10 GBE SPAs,
to provide interfaces for either one or two complete traffic links. Figure 2-6 provides an illustration of
the SPA module, Table 2-6 lists the SPA module ports, and Table 2-7 lists the SPA module LEDs.

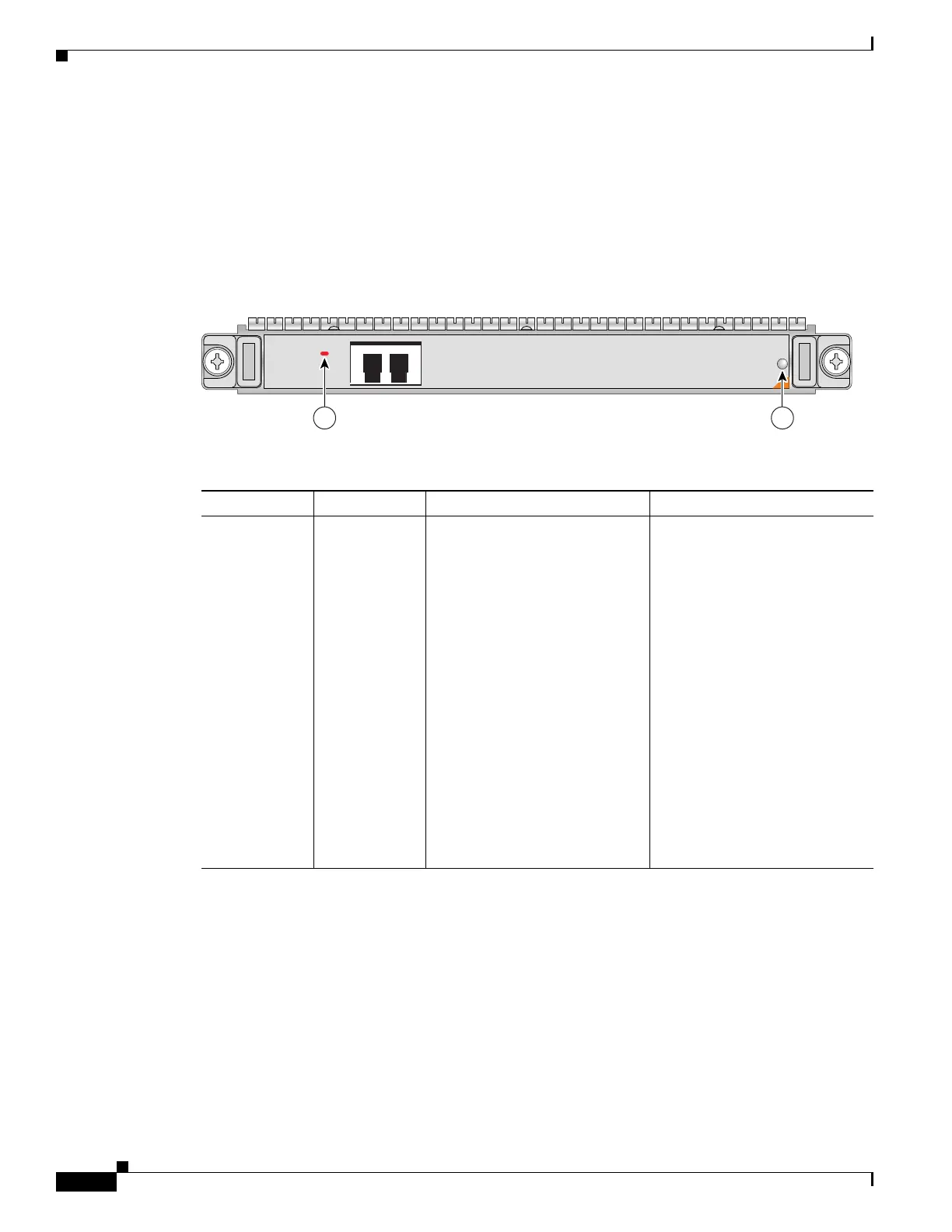

Figure 2-6 1-Port 10 GBE SPA Interface Module
Ta b l e 2 - 6 S PA Po r t s
Port Quantity Description Connect This Port To…
10 GBE Line
port
1 on each SPA Any one of the following:
• XFP-10GLR-OC192SR
(10km)
• XFP-10GER-OC192IR
(40km)
• XFP-10GZR-OC192LR
(80km)
• XFP-10G-MM-SR
(300m)
CLI designation: interface
TenGigabitEthernet 3/0/0,
3/1/0/, 3/2/0, 3/3/0.
Any one of the following:
• Subscriber side network
component
• Network side network
component
• Optical bypass 10 GBE line
port
• 10 GBE line port of a
cascaded Cisco SCE 8000
platform
• EtherChannel port of a
Cisco 7600 Series router
(MGSCP topology)
See Connecting the Line Ports to
the Network, page 6-2 for
further information.
STATUS
122151
ACTIVE/LINK
SPA-1X10GE-L-V2
1 2
