Cisco SF350-24P Administration Guide

Name: Cisco SF350-24P
Brand: Cisco
Rating: 4 (1 reviews)

762 pages

To Next Page

To Previous Page

Smart Network Application (SNA)

Services

Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4 525

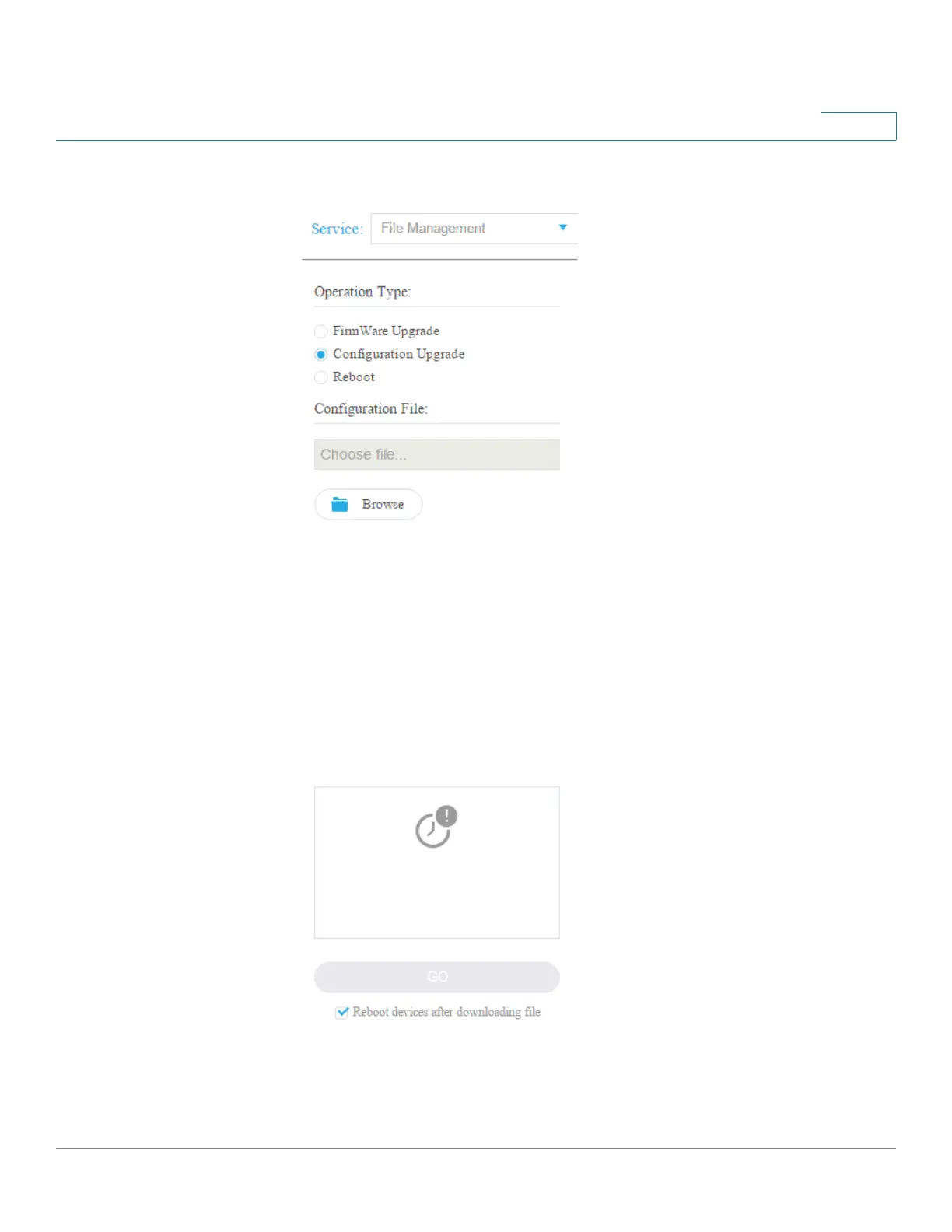

When activating the download, you can request that all devices reboot after

downloading the configuration file to make the new configurations active.

• Reboot:

Click Go to reboot the devices without performing any other actions.

Default Chapter2
- Table of Contents2
Chapter 1: Quick Getting Started12
- Before You Begin12
- Rack Mounting Switch13
- Power over Ethernet Considerations14
- Configuring Your Switch Using the Console Port21
- USB Port24
Chapter 2: General Information34
- Basic or Advanced Display Mode34
- Quick Start Device Configuration36
- Interface Naming Conventions37
- Window Navigation38
- Search Facility41
Chapter 3: Dashboard42
- Grid Management42
- System Health44
- Resource Utilization45
- Identification46
- Port Utilization47
- Poe Utilization48
- Latest Logs49
- Suspended Interfaces49
- Traffic Errors52
Chapter 4: Configuration Wizards53
- Getting Started Wizard53
- VLAN Configuration Wizard55
- ACL Wizard56
Chapter 5: Status and Statistics59
- System Summary60
- CPU Utilization62
- Interface63
- Etherlike64
- Port Utilization65
- Gvrp65
- 802.1X Eap67
- Acl68
- Hardware Resource Utilization69
- Health and Power70
- Switched Port Analyzer (SPAN)77
- Diagnostics81
- Rmon85
- View Logs96
Chapter 6: Administration99
- System Settings100
- User Accounts101
- Idle Session Timeout103
- Time Settings103
- System Log103
- File Management107
- Plug-N-Play (PNP)107
- Reboot111
- Discovery - Bonjour113
- Discovery - LLDP114
- Discovery - CDP114
- Locate Device114
- Ping115
- Traceroute116
Chapter 7: Administration: File Management118
- System Files118
- Firmware Operations120
- File Operations124
- File Directory132
- DHCP Auto Configuration/Image Update132
Chapter 8: Administration: Stack Management142
- Overview142
- Types of Units in Stack144
- Stack Topology145
- Unit ID Assignment147
- Master Selection Process149
- Stack Changes149
- Unit Failure in Stack151
- Stack Ports153
- Software Auto Synchronization in Stack155
- Stack Management159
Chapter 9: Administration: Time Settings162
- System Time Configuration163
- SNTP Modes164
- System Time165
- SNTP Unicast167
- SNTP Multicast/Anycast170
- SNTP Authentication170
- Time Range171
- Recurring Time Range173
Chapter 10: Administration: Discovery174
- Bonjour174
- LLDP and CDP175
- Discover - LLDP177
- Discovery - CDP198
Chapter 11: Port Management207
- Workflow207
- Port Settings208
- Error Recovery Settings212
- Loopback Detection Settings213
- Link Aggregation215
- Poe231
- Green Ethernet240
Chapter 12: Smartport248
- Overview248
- How the Smartport Feature Works254
- Auto Smartport254
- Error Handling258
- Default Configuration258
- Relationships with Other Features259
- Common Smartport Tasks259
- Configuring Smartport Using the Web-Based Interface261
- Built-In Smartport Macros266
Chapter 13: VLAN Management277
- Regular Vlans285
- GVRP Settings297
- Voice VLAN304
Chapter 14: Spanning Tree324
- STP Flavors324
- STP Status and Global Settings325
- STP Interface Settings327
- Multiple Spanning Tree Overview332
- MSTP Properties332
- Vlans to a MSTP Instance333
- MSTP Instance Settings334
- MSTP Interface Settings335
Chapter 15: Managing MAC Address Tables338
- Static Addresses339
- Dynamic Addresses340
Chapter 16: Multicast342
- Multicast Forwarding Overview342
- Properties348
- MAC Group Address349
- IP Multicast Group Address350
- Ipv4 Multicast Configuration352
- Ipv6 Multicast Configuration358
- IGMP/MLD Snooping IP Multicast Group364
- Multicast Router Port365
- Forward All365
- Unregistered Multicast366
Chapter 17: IP Configuration368
- Overview368
- Loopback Interface370
- Ipv4 Management and Interfaces370
- Ipv6 Management and Interfaces399
- Domain Name System424
Chapter 18: IP Configuration: Ripv2430
- Overview430
- How Rip Operates on the Device431
- Configuring RIP436
- Access Lists440
Chapter 19: IP Configuration: VRRP443
- Overview443
- VRRP Topology444
- Configurable Elements of VRRP446
- Configuring VRRP449
Chapter 20: IP Configuration: SLA453
- Overview453
- Using SLA456
Chapter 21: Security460
- Radius465
- Password Strength476
- Management Access Method481
- Management Access Authentication486
- SSL Server488
- SSH Client491
- TCP/UDP Services491
- Storm Control492
- Port Security496
- 802.1X Authentication498
- Denial of Service Prevention509
Chapter 22: Security: 802.1X Authentication519
- Overview519
- Properties535
- Port Authentication537
- Host and Session Authentication540
- Authenticated Hosts541
Chapter 23: Security: Secure Sensitive Data Management548
- Introduction548
- SSD Management549
- SSD Rules549
- SSD Properties554
- Configuration Files557
- SSD Management Channels561
- Menu CLI and Password Recovery562
- Configuring SSD562
Chapter 24: Security: SSH Server566
- Overview566
- Common Tasks567
- SSH User Authentication568
- SSH Server Authentication569
Chapter 25: Security: SSH Client571
- Overview571
- SSH User Authentication577
- SSH Server Authentication578
- Change User Password on the SSH Server580
Chapter 26: Security: Ipv6 First Hop Security581
- Ipv6 First Hop Security Overview582
- Router Advertisement Guard586
- Neighbor Discovery Inspection586
- Dhcpv6 Guard587
- Neighbor Binding Integrity587
- Ipv6 Source Guard590
- Attack Protection591
- Policies, Global Parameters and System Defaults593
- Common Tasks594
- Default Settings and Configuration596
- Configuring Ipv6 First Hop Security through Web GUI597
Chapter 27: Access Control615
- Overview615
- MAC-Based Acls Creation619
- Ipv4-Based ACL Creation621
- Ipv6-Based ACL Creation626
- ACL Binding629
Chapter 28: Quality of Service632
- Qos Features and Components633
- General637
- Qos Basic Mode648
- Qos Advanced Mode651
- Qos Statistics663
Chapter 29: SNMP666
- Overview666
- Engine ID674
- Views676
- Groups677
- Users679
- Communities681
- Trap Settings683
- Notification Recipients683
- Notification Filter688
Chapter 30: Smart Network Application (SNA)689
- SNA Sessions690
- SNA Graphics691
- Top Right-Hand Menu693
- Topology View694
- Right-Hand Information Panel703
- Operations717
- Overlays722
- Tags725
- Search729
- Dashboard731
- Notifications733
- Device Authorization Control (DAC)736
- DAC Workflow736

Other manuals for Cisco SF350-24P

Quick Start Guide60 pages

Manual16 pages

Questions and Answers:

Need help?

Do you have a question about the Cisco SF350-24P and is the answer not in the manual?

Cisco SF350-24P Specifications

General

Model	SF350-24P
Category	Switch
PoE Budget	195W
Layer	Layer 3
Power Supply	Internal
Uplink Ports	2 x combo Gigabit SFP + 2 x Gigabit
MAC Address Table Size	16K entries
Jumbo Frame Support	9216 bytes
Management	Web, CLI, SNMP
Features	QoS, VLAN, IPv6, ACLs
Dimensions	440 mm x 257 mm x 44 mm
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% non-condensing
Weight	3.48 kg
