Cisco SG350-28P Administration Guide

Dashboard
System Health
32 Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4
3

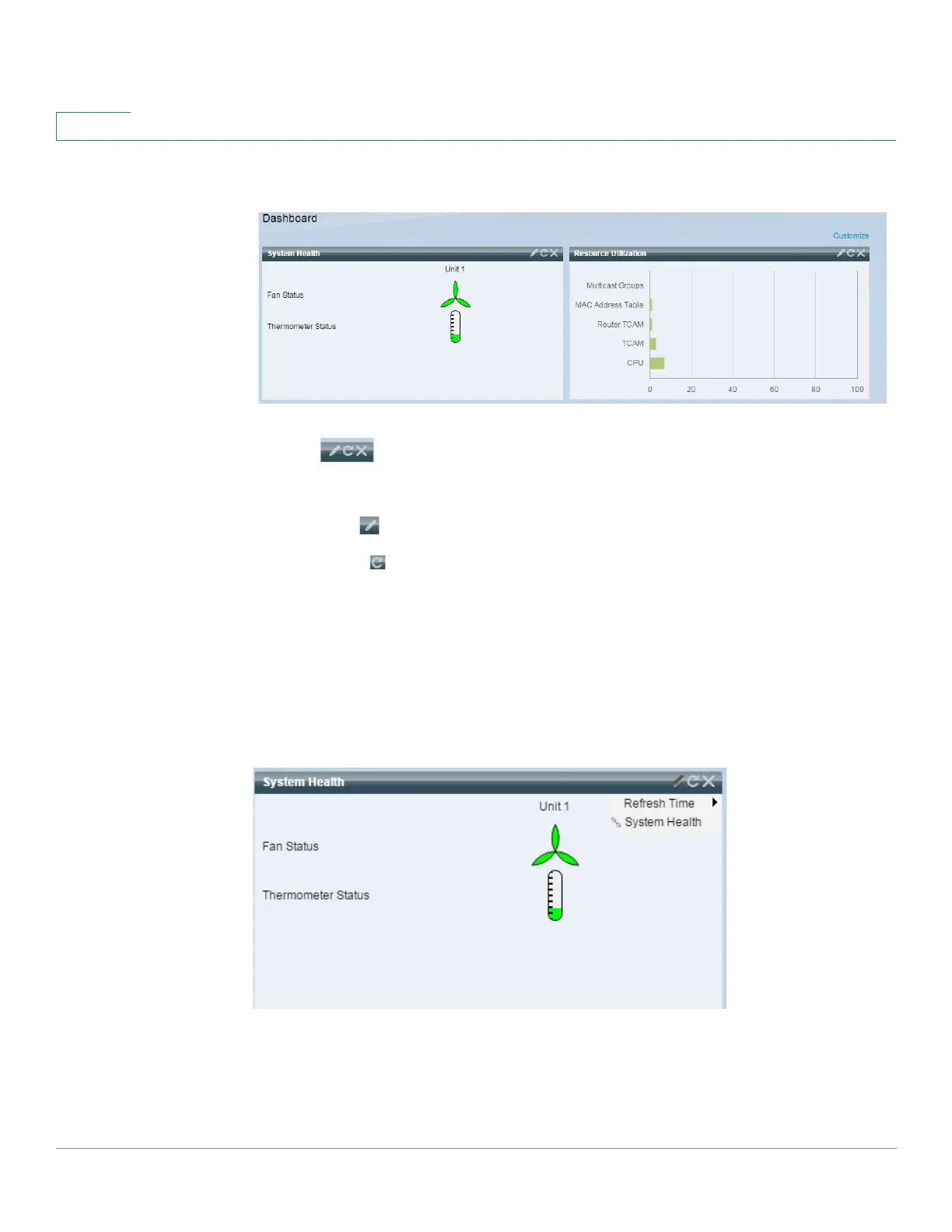

Only when you click Done (in the right-hand corner), are the modules populated by the
relevant information, as shown below:
The title bar of each module in the dashboard displays the title of the module and three
buttons:
These button perform the following:
• Pencil — Opens configuration options (depending on the module).
• Refresh — Refreshes the information.
• X — Removes the module from the dashboard.
System Health
This module displays information about device temperature (when such information is
available) for a standalone device or for each device in the stack, as shown below:
The following icons are shown:
• Fan Status—Yellow if one fan failed and is backed up by the redundant fan; Green if
the fan is operational; Red if the fan is faulty.

Cisco SG350-28P Specifications

General

Model	SG350-28P
Category	Switch
Ports	28
PoE Ports	24
PoE Budget	195W
Switching Capacity	56 Gbps
Forwarding Rate	41.67 Mpps
Layer	Layer 3
Rack Mountable	Yes
Gigabit Ethernet Ports	28
MAC Address Table Size	16K
Power Supply	Internal
Jumbo Frame Support	Yes
Dimensions (W x D x H)	440 x 257 x 44 mm
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
