When Router A recovers, it becomes the virtual router master again. During the period that the
master is recovering, both masters forwards packets and as a result, there is some duplication
(regular behavior) but no interruption.
For more detail on the roles that VRRP routers play and what happens if the virtual router
master fails, see VRRP Router Priority and Preemption.
The following shows a LAN topology in which VRRP is configured. Routers A and B share
the traffic to and from clients 1 through 4 and Routers A and B act as virtual router backups to
each other if either router fails.

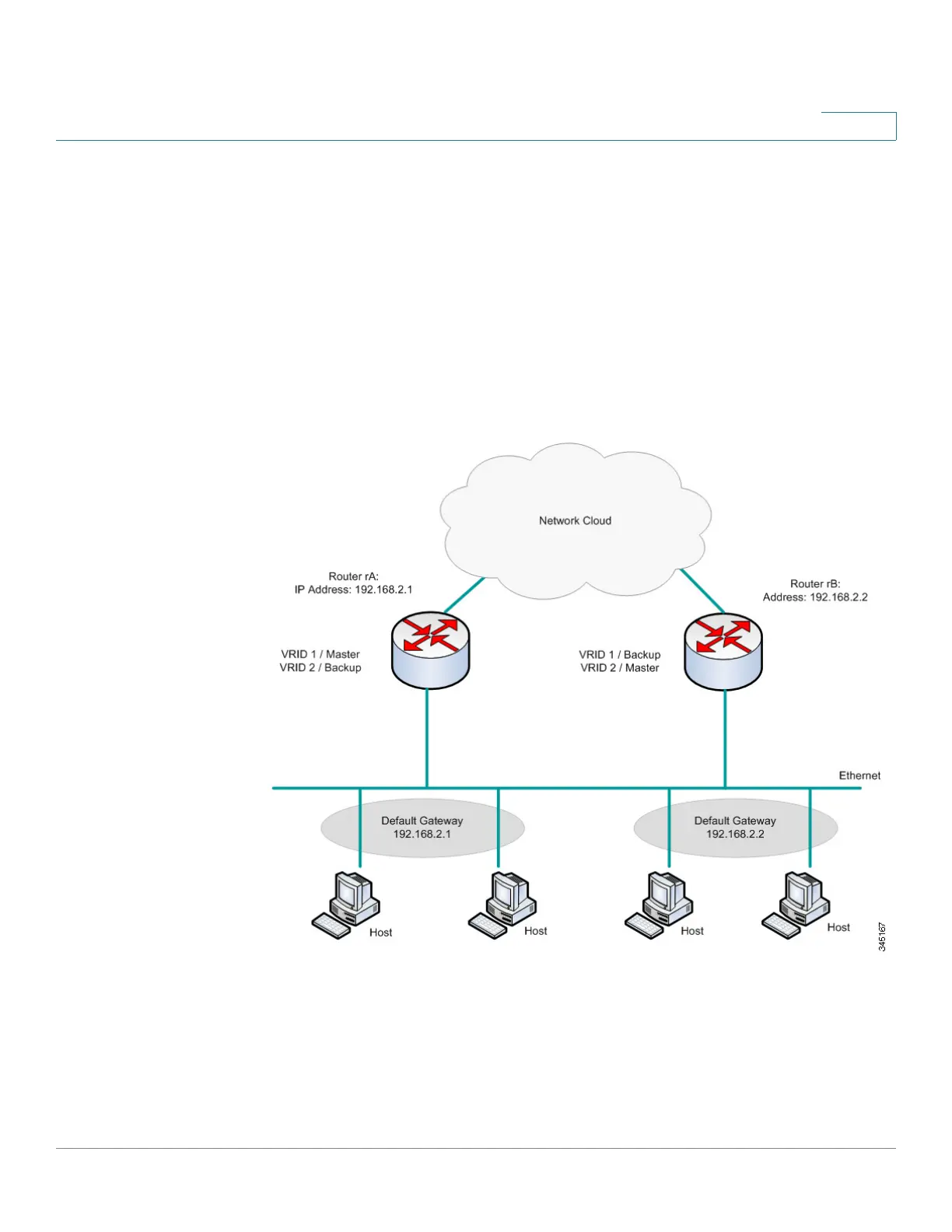

Load Sharing VRRP Topology
In this topology, two virtual routers are configured. For virtual router 1, rA is the owner of IP
address 192.168.2.1 and is the virtual router master, and rB is the virtual router backup to rA.
Clients 1 and 2 are configured with the default gateway IP address of 192.168.2.1.

Cisco SG350-28P Specifications

General

Model	SG350-28P
Category	Switch
Ports	28
PoE Ports	24
PoE Budget	195W
Switching Capacity	56 Gbps
Forwarding Rate	41.67 Mpps
Layer	Layer 3
Rack Mountable	Yes
Gigabit Ethernet Ports	28
MAC Address Table Size	16K
Power Supply	Internal
Jumbo Frame Support	Yes
Dimensions (W x D x H)	440 x 257 x 44 mm
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
