(Optional) Alternate PCIe assembly with FCoE port
Use with PCIe assembly modules only.
Note
12Hard disk drives (HDD0 and HDD1)11
(Optional) Alternate PCIe assembly
with 4 Gigabit Ethernet ports
Use with PCIe assembly
modules only.
Note
13
The following figure shows the Front Panel of the Double-Wide E-Series Servers UCS-E180D-M3 and
UCS-E1120D-M3.

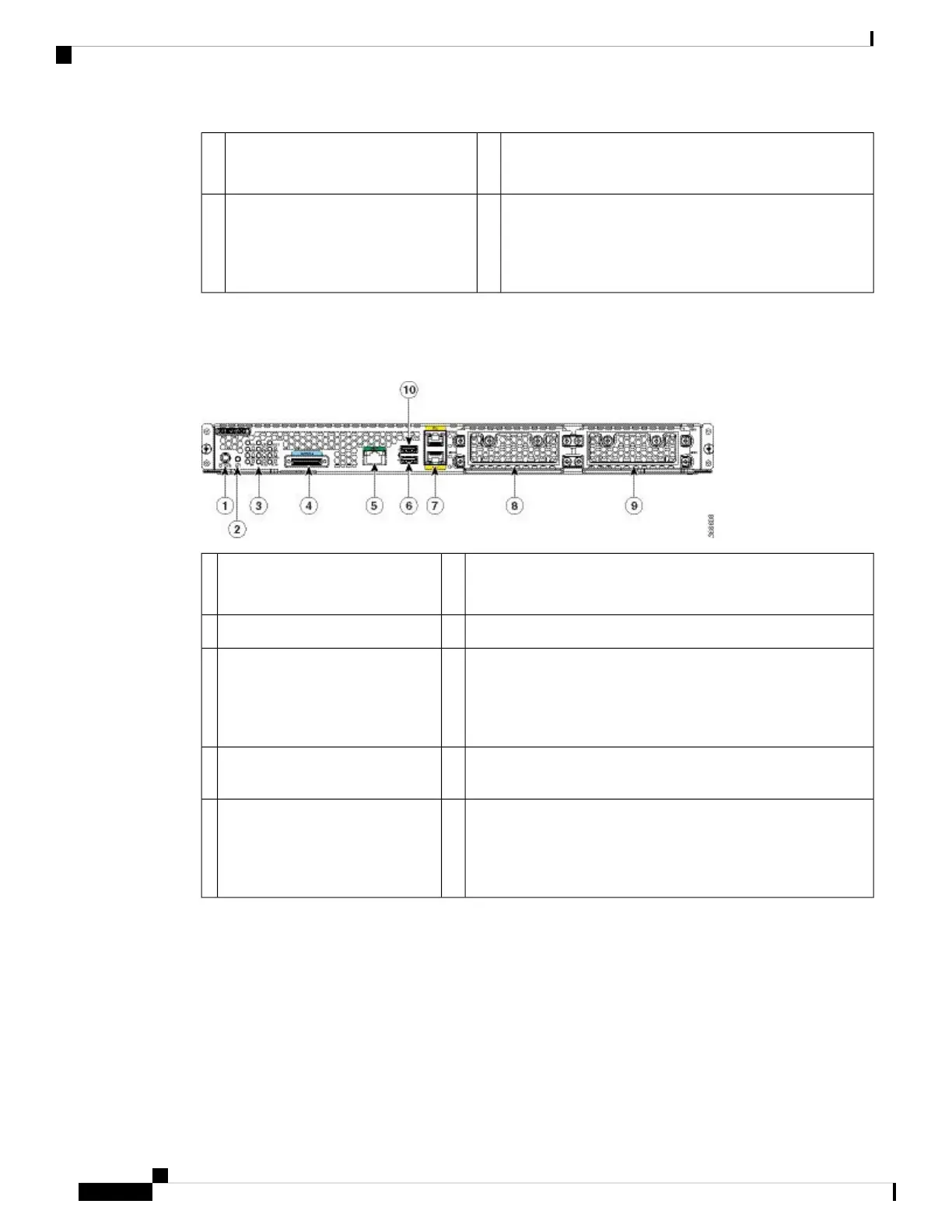

Figure 6: Front Panel of the Double-Wide E-Series Servers UCS-E180D-M3 and UCS-E1120D-M3
Reset switch
This resets all CMOS settings.
Note
2Power switch1
Console port4LEDs3
USB port 0
Each port provides up to 500 mA of current. Devices that require
higher power, such as CD/DVD ROM, need their own external
power.
6Management Port5
Hard disk drives (HDD3 and HDD2)8Gigabit Ethernet ports (TE2 and
TE3)
7
USB port 1
Each port provides up to 500 mA of current. Devices that require
higher power, such as CD/DVD ROM, need their own external
power.
10Hard disk drives (HDD0 and
HDD1)
9
Cisco UCS E-Series Servers and the Cisco UCS E-Series Network Compute Engine Hardware Installation Guide
22
Double-Wide E-Series Server—Front Panel and Components
