Do not power cycle the router during the FPGA installation process.
Danger
Step 3 After the installation completes, power cycle the router for the new FPGA image to take effect.
If you accidentally lose power during the upgrade process, the FPGA falls back to the factory-installed
image. To ensure proper functionality, you must reinstall the new FPGA image.
Note
NIM E-Series NCE
See the following sections for more information about NIM E-Series NCE:
NIM E-Series NCE—Front Panel and Components

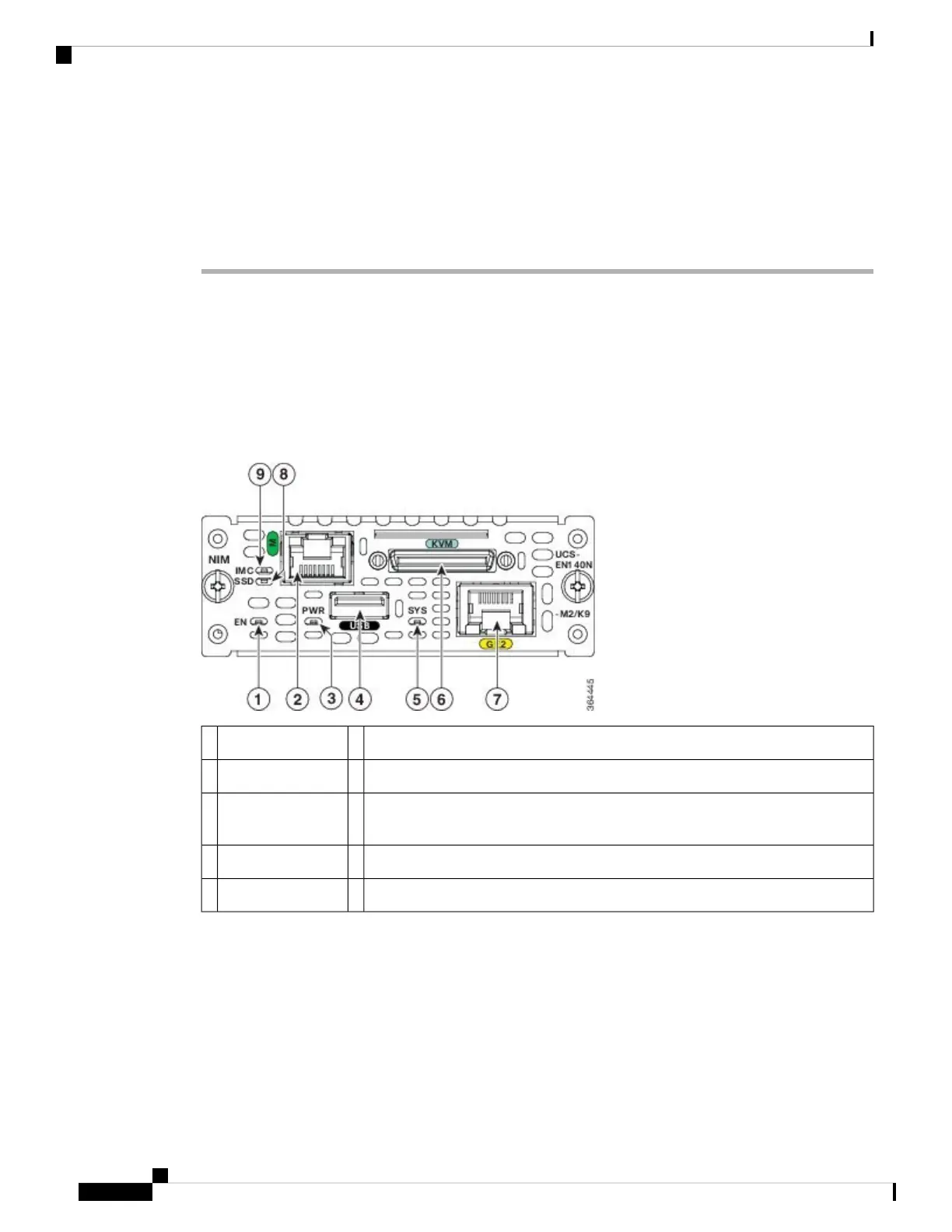

The following figure shows the front panel of the NIM E-Series NCE.
Figure 26: Front Panel of the NIM E-Series NCE
Management port2EN LED1
USB4Power LED3
KVM port used for keyboard, video, and mouse (KVM) connector. Refer Figure
27: KVM Connector, on page 55.
6LED for the system5
LED for the SSD drive8GE Port7
LED for the CIMC9
The following figure shows the KVM connector.
