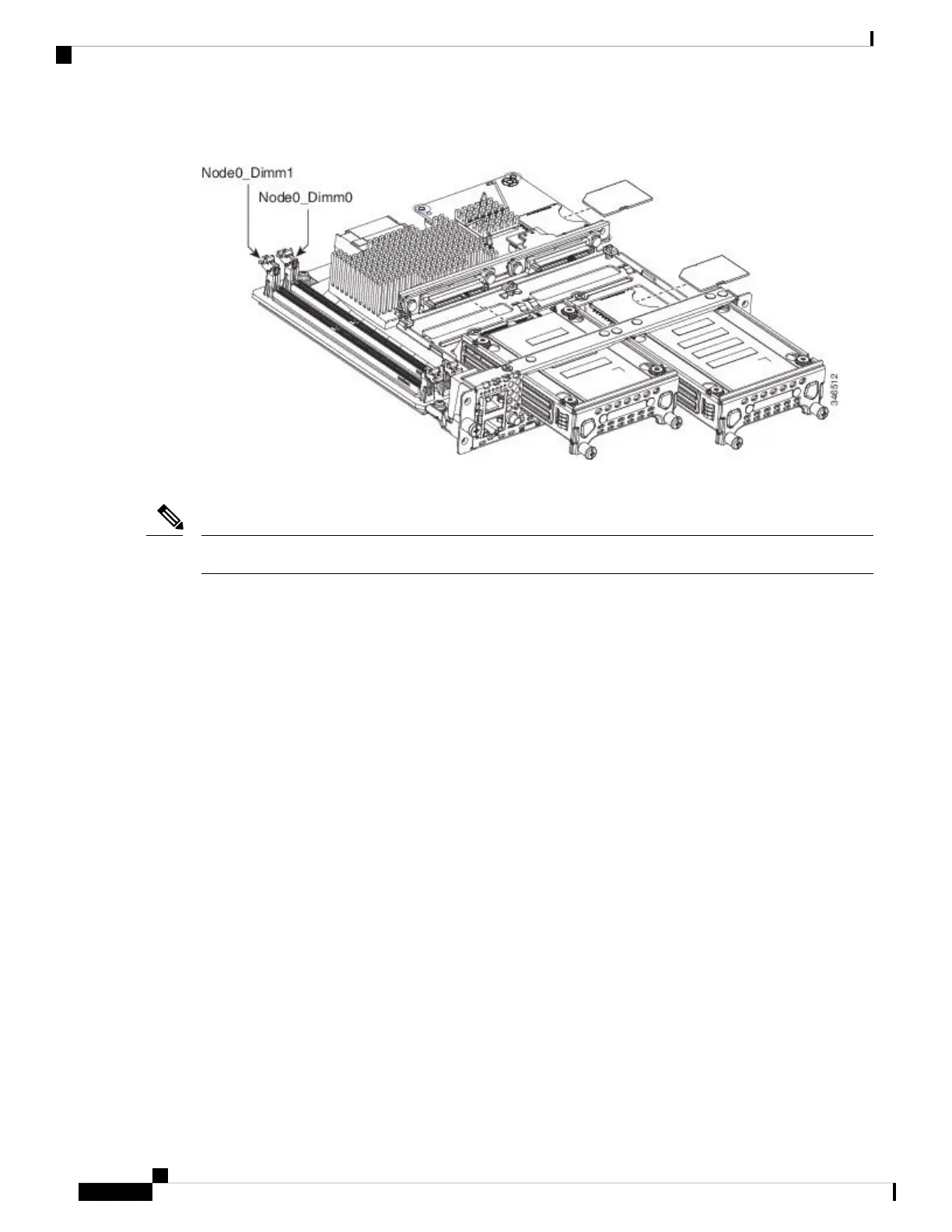

Figure 16: Memory DIMM Location in a Single-Wide E-Series Server
The following figure shows the location of the memory DIMMs in a double-wide E-Series Server.
The double-wide E-Series Servers support up to 48 GB of DDR3 memory DIMMs.
Note
Cisco UCS E-Series Servers and the Cisco UCS E-Series Network Compute Engine Hardware Installation Guide
42
Memory DIMM Location
