Chapter 2 Printer Operation
Menu Setting Table (p.41)
Setting the Media

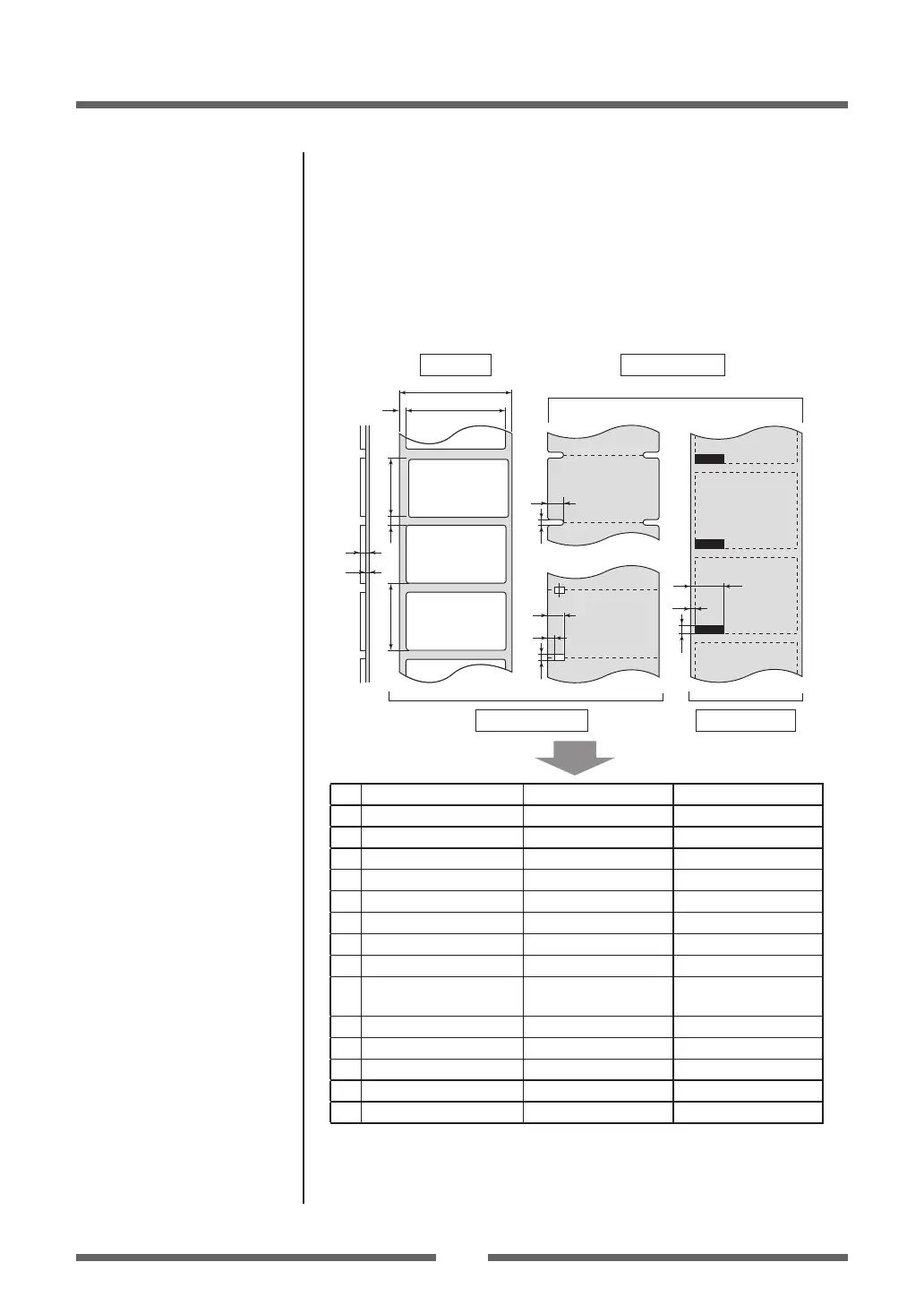

Media Sizes
The position of label and tag media is sensed by either a transparent
sensor or a reective sensor.
Transparent sensor: Detects the gaps between label media and notches
of tag media
Reective sensor: Detects the black mark
A
I
I
G
H
D
KK
F E
B
Notch detection Black mark detection
J
L
N
M
Transparent sensor
Continuous media
Label
Label
Label
Printed area
Reective sensor
Media direction
Label media
C
Min. value mm (inches) Max. value mm (inches)
A Label width 19.50 (0.77) 118.00 (4.65)
B Liner width 19.50 (0.77) 118.00 (4.65)
C Label left edge position 0 (0) 2.54 (0.10)
E
Length of gap between labels 2.54 (0.10) 2539.75 (99.99)
F Label length 6.35 (0.25) 2539.75 (99.99)
G Label pitch 6.35 (0.25) 2539.75 (99.99)
H Liner thickness 0.06 (0.0025) 0.125 (0.0049)
I Total media thickness 0.06 (0.0025) 0.25 (0.01)
J
Position of right edge of
notch
3.60 (0.14) 60.80 (2.39)
K
Position of left edge of notch 0 (0) 57.20 (2.25)
L Notch length 2.54 (0.10) 17.80 (0.70)
M Right edge of black mark 15.00 (0.59) 66.50 (2.62)
N Left edge of black mark 0 (0) 51.5 (2.02)
O Black mark width 3.18 (0.125) 17.80 (0.70)
* Use a transparent sensor for label media gaps and media with black marks.
* Use a transparent sensor for fan fold media.
* If the label pitch is 1 inch or less, set the Small Media Adjustment menu to ON
and match it to the label that uses the value of the Small Media Length menu.
* Use a carbon ink of OD value 1.5 or more for black mark.

Citizen CL-E730 Specifications

General

Color	No
Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Core diameter	75 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	4013 mm
Maximum roll diameter	200 mm
Supported paper width	12.5 - 118 mm
Ethernet LAN	Yes
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Display	LCD
Product color	Black
LED indicators	Status
Flash memory	16 MB
Internal memory	32 MB
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	100 - 230 V
Power consumption (standby)	2.9 W
Power consumption (printing)	72 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	458 mm
Width	250 mm
Height	261 mm
Weight	11000 g
