Citizen CL-E730 User Manual

60
Chapter 3 Printer Adjustments

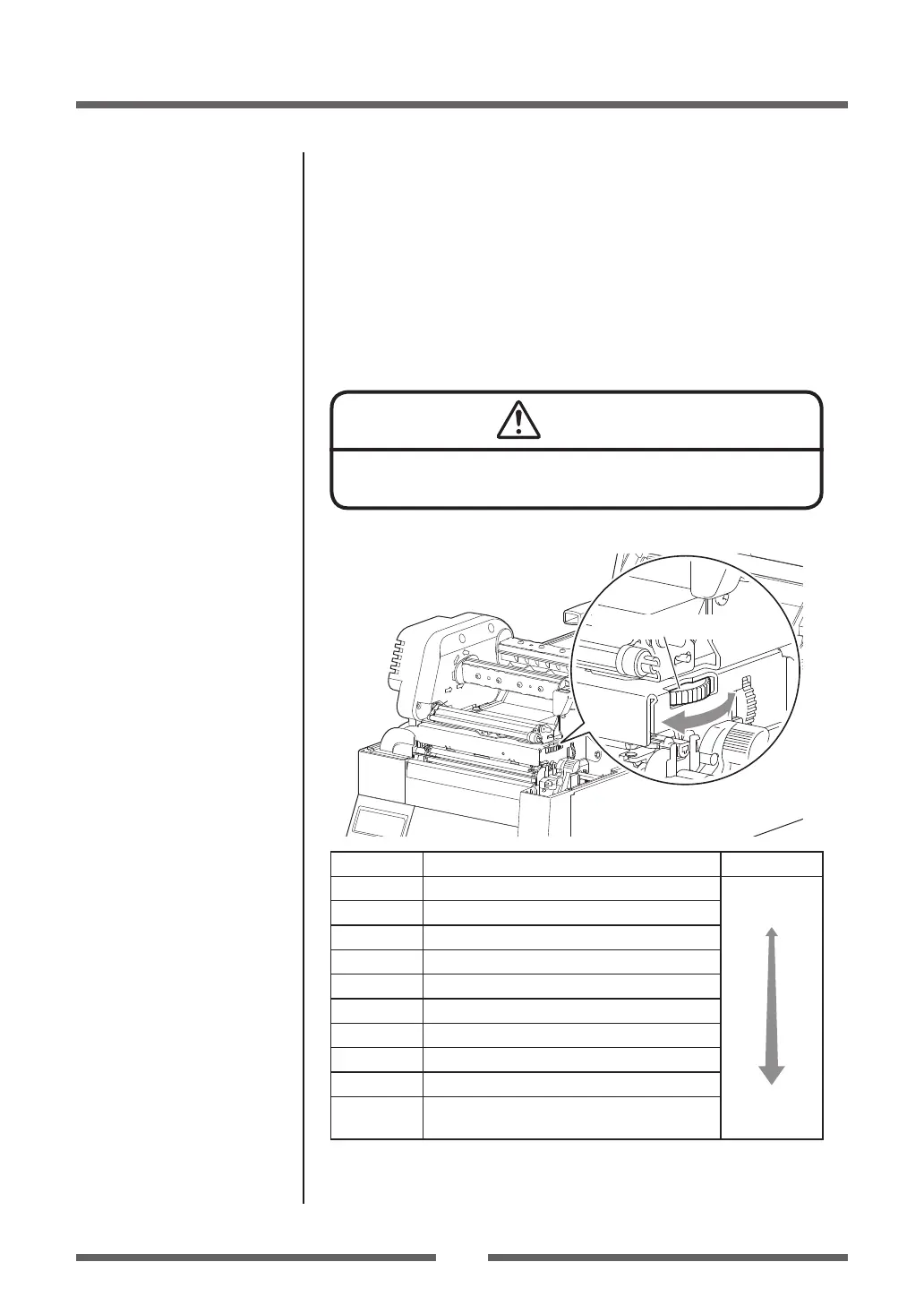

Media Width Adjustment
The head pressure varies according to the width of the media being
printed.
The head pressure balance must be adjusted according to media width so
that constant head pressure is applied to the head. With this printer, it can
be adjusted easily by turning the media width adjustment dial.
If the printing is blurred or lightly printed on one side or the media moves
in a zigzag pattern adjust the head pressure balance.
After making an adjustment, conrm the output quality with a test print.
When using narrow media, be sure to MAKE this adjustment. (If you do
not, the head may be damaged by jamming, etc.)
9
Media width adjustment dial
Dial position Media width mm (inches) Head pressure
0 19.5 to 23.0 mm (0.77 to 0.90)
Low
High
1 23.0 to 30.0 mm (0.90 to 1.18)
2 30.0 to 39.0 mm (1.18 to 1.53)
3 39.0 to 49.0 mm (1.53 to 1.92)
4 49.0 to 62.0 mm (1.92 to 2.44)
5 62.0 to 76.0 mm (2.44 to 2.99)
6 76.0 to 88.0 mm (2.99 to 3.46)
7 88.0 to 99.0 mm (3.46 to 3.89)
8 99.0 to 108 mm (3.89 to 4.25)
9 108 to 118 mm (4.25 to 4.65)
(setting when shipped)
The following values are criteria.
• Dial adjustment may be required depending on the thickness of print
and occurrence of ribbon wrinkles.
Caution
Installing the Media (p.26)
Self Print Mode (p.34)

Citizen CL-E730 Specifications

General

Color	No
Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Core diameter	75 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	4013 mm
Maximum roll diameter	200 mm
Supported paper width	12.5 - 118 mm
Ethernet LAN	Yes
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Display	LCD
Product color	Black
LED indicators	Status
Flash memory	16 MB
Internal memory	32 MB
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	100 - 230 V
Power consumption (standby)	2.9 W
Power consumption (printing)	72 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	458 mm
Width	250 mm
Height	261 mm
Weight	11000 g
