Citizen CL-E730 User Manual

83
Appendixes

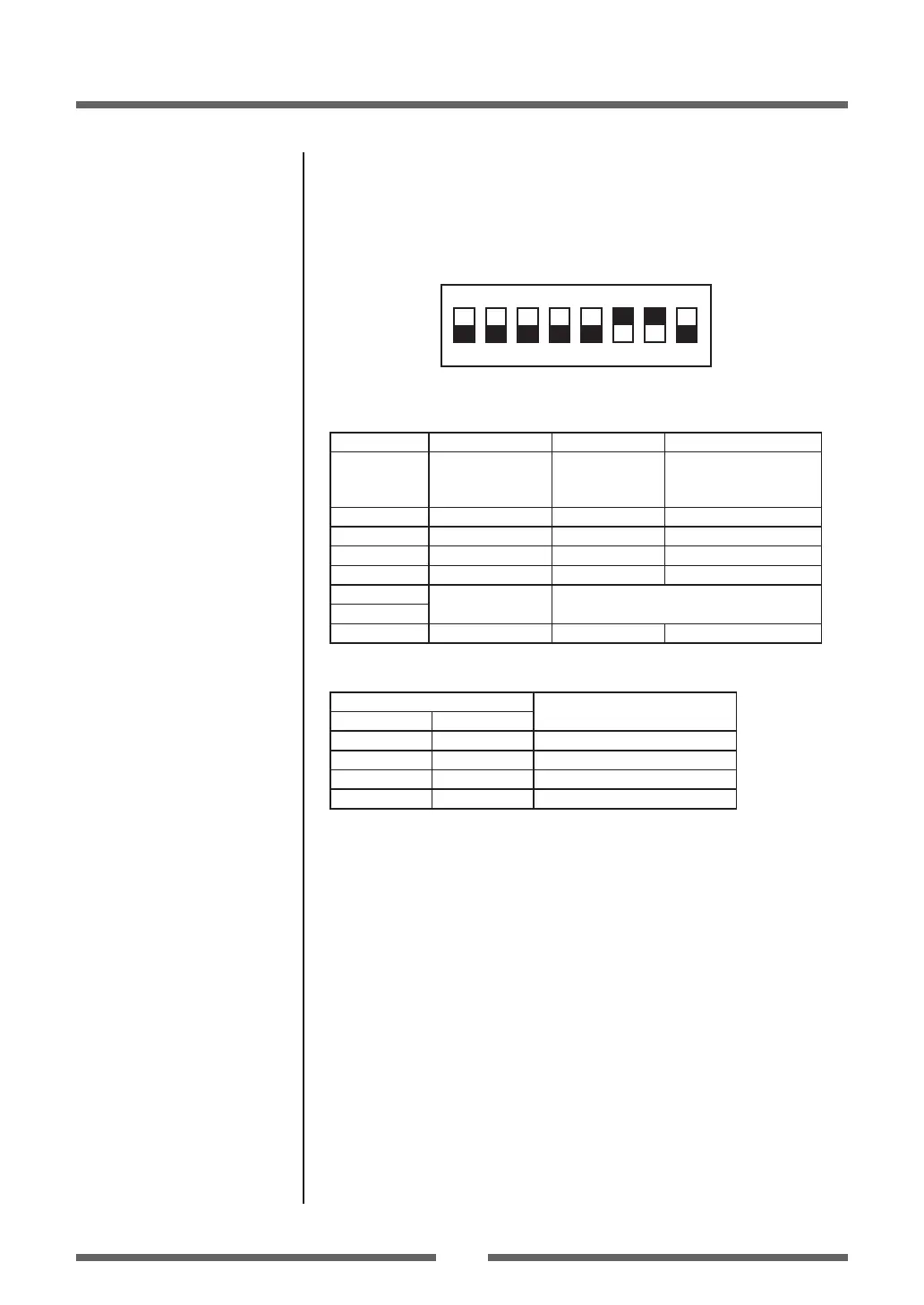

Dip switch
Communication conditions settings can be changed by using the dip
switch available on the interface board.
ON
1 2 3 4 5 6 7 8
Dip switch
Respective functions of the switches are as follows.
Switch No. Function ON OFF (Factory setting)
1 Selection of
communication
conditions setting
According to
setting of dip
switch
According to setting in
printer unit
2 Handshake XON / XOFF DTR / DSR
3 Bit length 7 bit 8 bit
4 Parity check Yes No
5 Parity selection Even Odd
6
Selection of baud
rate
See below
7
8 Reservation - -
Baud rate selection
Switch No.
Baud rate (bps)
6 7
OFF OFF 2400
ON OFF 4800
OFF ON 9600
ON ON 19200
Interfaces

Citizen CL-E730 Specifications

General

Color	No
Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Core diameter	75 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	4013 mm
Maximum roll diameter	200 mm
Supported paper width	12.5 - 118 mm
Ethernet LAN	Yes
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Display	LCD
Product color	Black
LED indicators	Status
Flash memory	16 MB
Internal memory	32 MB
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	100 - 230 V
Power consumption (standby)	2.9 W
Power consumption (printing)	72 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	458 mm
Width	250 mm
Height	261 mm
Weight	11000 g
