Citizen CL-E730 User Manual

65
Chapter 3 Printer Adjustments
Ribbon guide adjustment
Prevent occurrence of wrinkles on the ribbon by adjusting the inclination
of ribbon guide at the rear side (feeding side).
If looses occur in the feeding side ribbon, adjust by using the following
procedure. Align the position of the scale to the center.

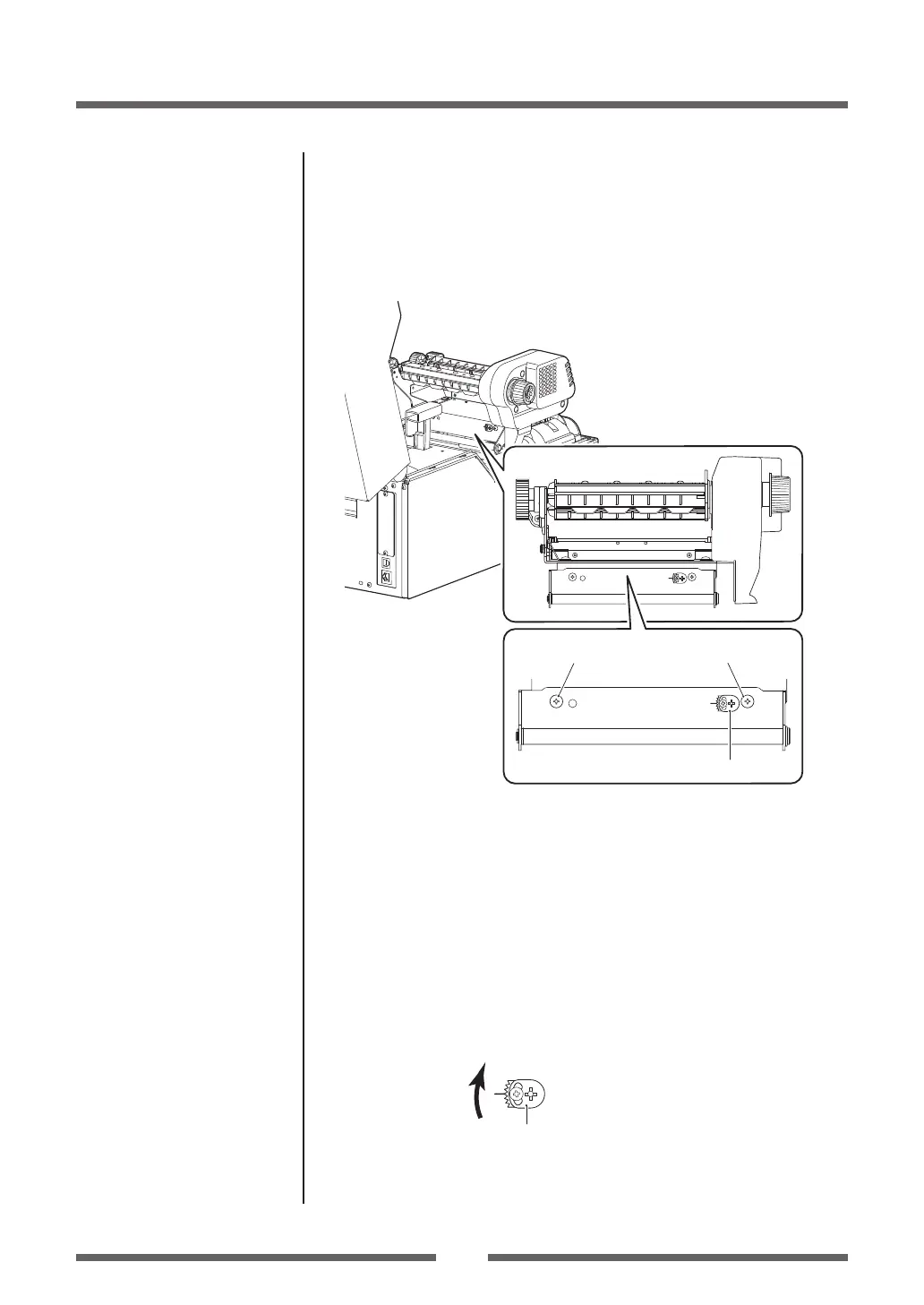

Ribbon guide
xing screw
Ribbon guide adjustment cam
Ribbon guide
xing screw
1. Loosen the ribbon guide xing screws (2 places).
2. Loosen the screw on the ribbon guide adjusting cam.
3. Change the inclination of the ribbon guide by sliding the
ribbon guide adjustment cam.

When ribbon loosing occurs on the side opposite to the front
ribbon left-right balance adjustment knob side

Raise the ribbon guide adjustment cam and increase the inclination
of the ribbon guide shaft of the side where there is no loose in the
ribbon (adjustment knob side).
Ribbon guide adjustment cam
Adjusting the Ribbon

Citizen CL-E730 Specifications

General

Color	No
Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Core diameter	75 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	4013 mm
Maximum roll diameter	200 mm
Supported paper width	12.5 - 118 mm
Ethernet LAN	Yes
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Display	LCD
Product color	Black
LED indicators	Status
Flash memory	16 MB
Internal memory	32 MB
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	100 - 230 V
Power consumption (standby)	2.9 W
Power consumption (printing)	72 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	458 mm
Width	250 mm
Height	261 mm
Weight	11000 g
