Citizen CL-E730 User Manual

86
Appendixes
Interfaces

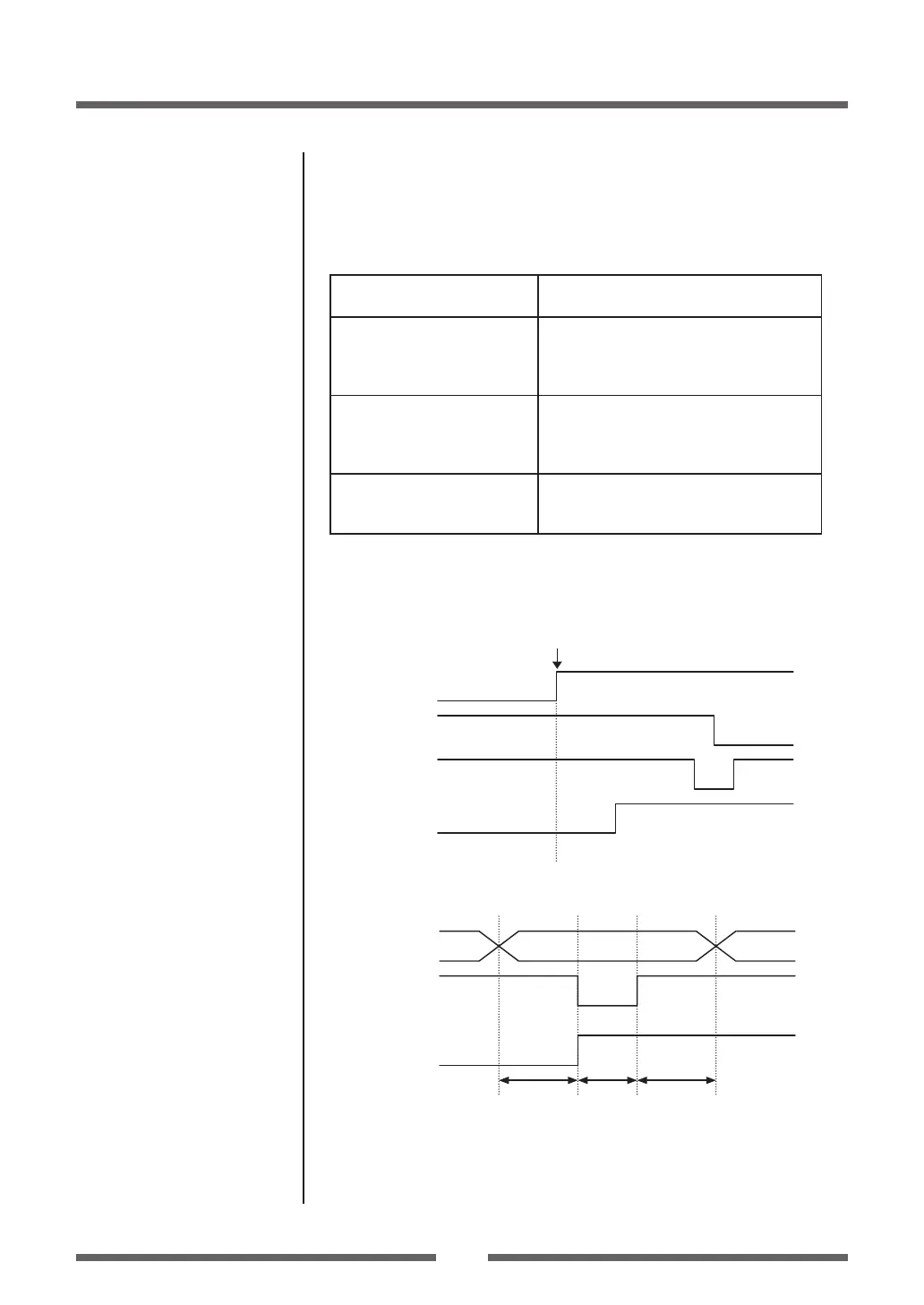

Parallel port status signals when an error occurs
The status of a signal line will not be changed in bi-directional mode such
as nibble or ECP mode.
Error
Change in the status of a signal line
in compatible mode
Paper end Busy : L

H
PError : L

H
Select : H

L
nFault : H

L
Error other than paper end
• Head open
• Other
Busy : L

H
PError : L

unchanged
Select : H

L
nFault : H

L
Conditions for Busy • Receive buer full
• Data being read
• Error
Compatible timing specication
[When power is on] (Time it goes o-line)
Reset
BUSY
*ACK
SELECT
PowerOn
[While receiving data]
Data0-7
*Strobe
BUSY
0.5µs
0.5µs
0.5µs
Note: Busy rises when *Strobe signal starts, and data is latched with
*Strobe signal starts.

Citizen CL-E730 Specifications

General

Color	No
Print technology	Direct thermal / Thermal transfer
Maximum resolution	300 x 300 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Core diameter	75 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	4013 mm
Maximum roll diameter	200 mm
Supported paper width	12.5 - 118 mm
Ethernet LAN	Yes
Optional connectivity	Parallel, Serial (RS-232), Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Display	LCD
Product color	Black
LED indicators	Status
Flash memory	16 MB
Internal memory	32 MB
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	100 - 230 V
Power consumption (standby)	2.9 W
Power consumption (printing)	72 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	458 mm
Width	250 mm
Height	261 mm
Weight	11000 g
