Citizen CLP-621 Technical Manual

3-5. Disassembly, Reassembly and Lubrication
3-23 CLP-621 & CLP-631

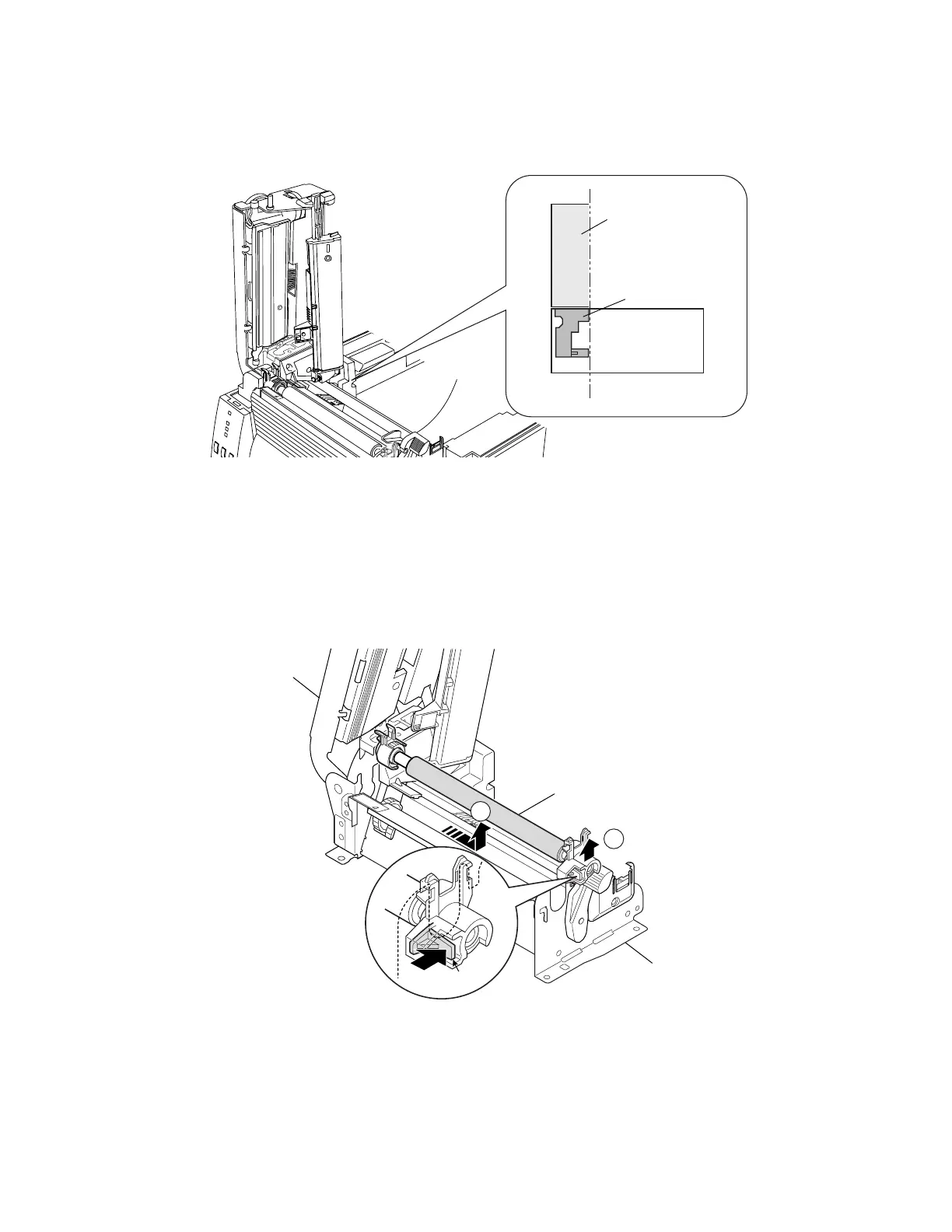

• Media-path left-edge alignment:
Align the Mechanism Unit so that the media guide end of the Head Wire Cover is aligned with
the chassis plate of the Main PCB Block (refer to 3-5-10 “Main PCB Block”).
Main PCB Block
Head Wire Cover
(Media Guide End)
Unit, Mechanism
Align.
3-5-14. Platen SA
1. Open the Top Cover SA and then the Head Block.
2. While pushing the part “A” of the Platen SA, lift the right end a little. (See the arrow “a”.) Then,
remove the Platen SA from the Mechanism Unit by moving it to the right and then lift it
upwardly. (See the arrow “b”.)
SA, Platen
Unit, Mechanism
(Head Block)
a
b
A

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
