Citizen CLP-621 Technical Manual

3-5. Disassembly, Reassembly and Lubrication
CLP-621 & CLP-631 3-22

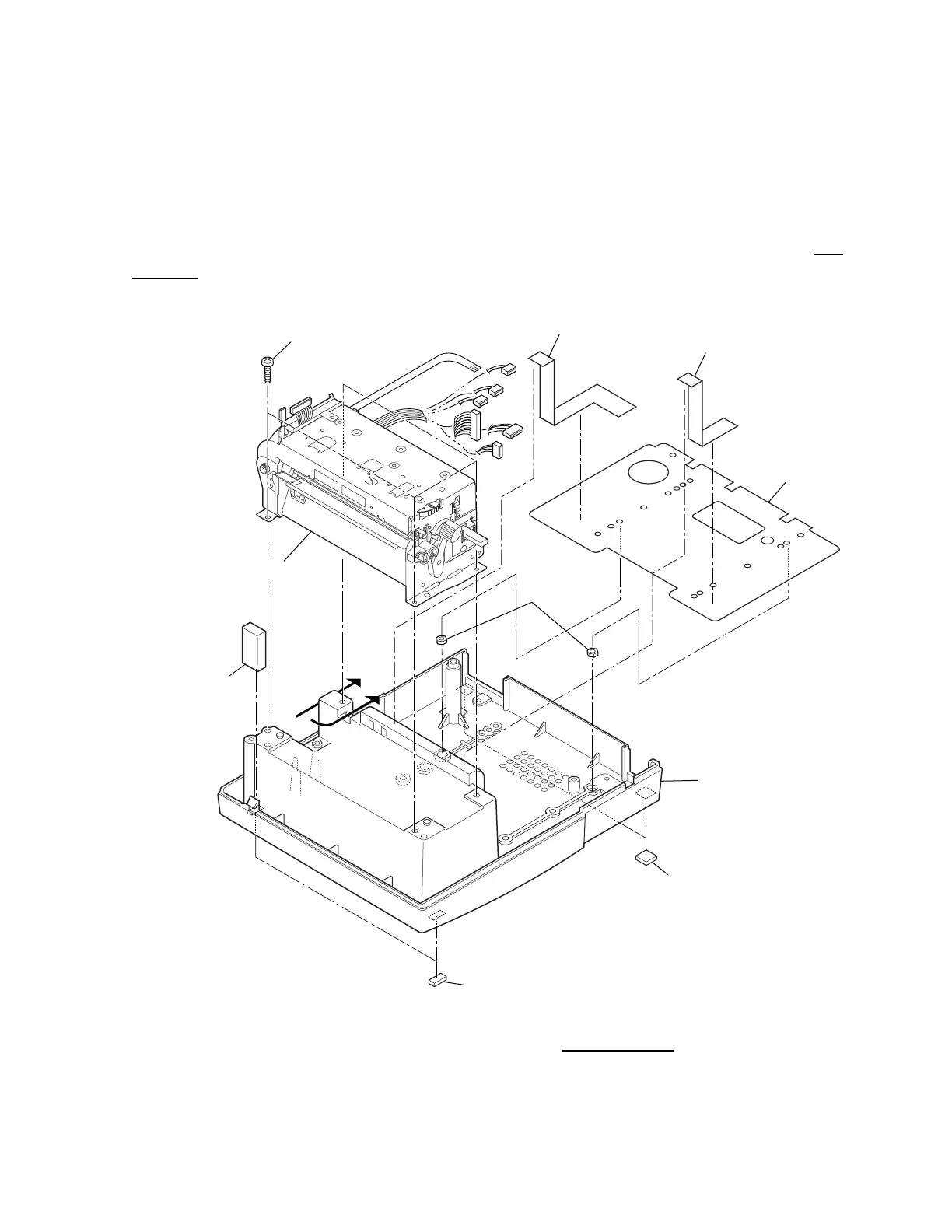

3-5-13. Mechanism Unit and Case L
1. Remove the Case U Unit. Refer to 3-5-2 “Case U”.
2. Remove the Main PCB Block and Power Supply Unit. Refer to 3-5-10 “Main PCB Block, Power
Supply Unit and Control Panel Unit”.
3. Remove 4 screws (PHT (BH2T), M3x14) and detach the Mechanism Unit.
4. Remove the Earth L Sheet, Earth R Sheet, Earth Plate and 2 nuts (M4).
5. Remove the Ope-pane Cover Cushion from the Case L. (The Ope-pane Cover Cushion is
not
reusable.)
6. Remove the Case L F Legs and Case L R Legs from the Case L.
PHT (BH2T), M3x14
A
B
Leg, Case L R
Leg, Case L F
Unit, Mechanism
Sheet, Earth L
Sheet, Earth R
Nut, M4
Case L
Plate, Earth
Cushion, Ope-pane
Cover
Notes on reassembling:
• The Ope-pane Cover Cushion that was removed in Step 5
is not reusable.
• Run the cables as follows:
Motor cable: Pass through left end (“A”).
Other cables: Pass through the groove “B”.

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
