CKD AX0180 User Manual

[SMB-66E]
－ 73 －

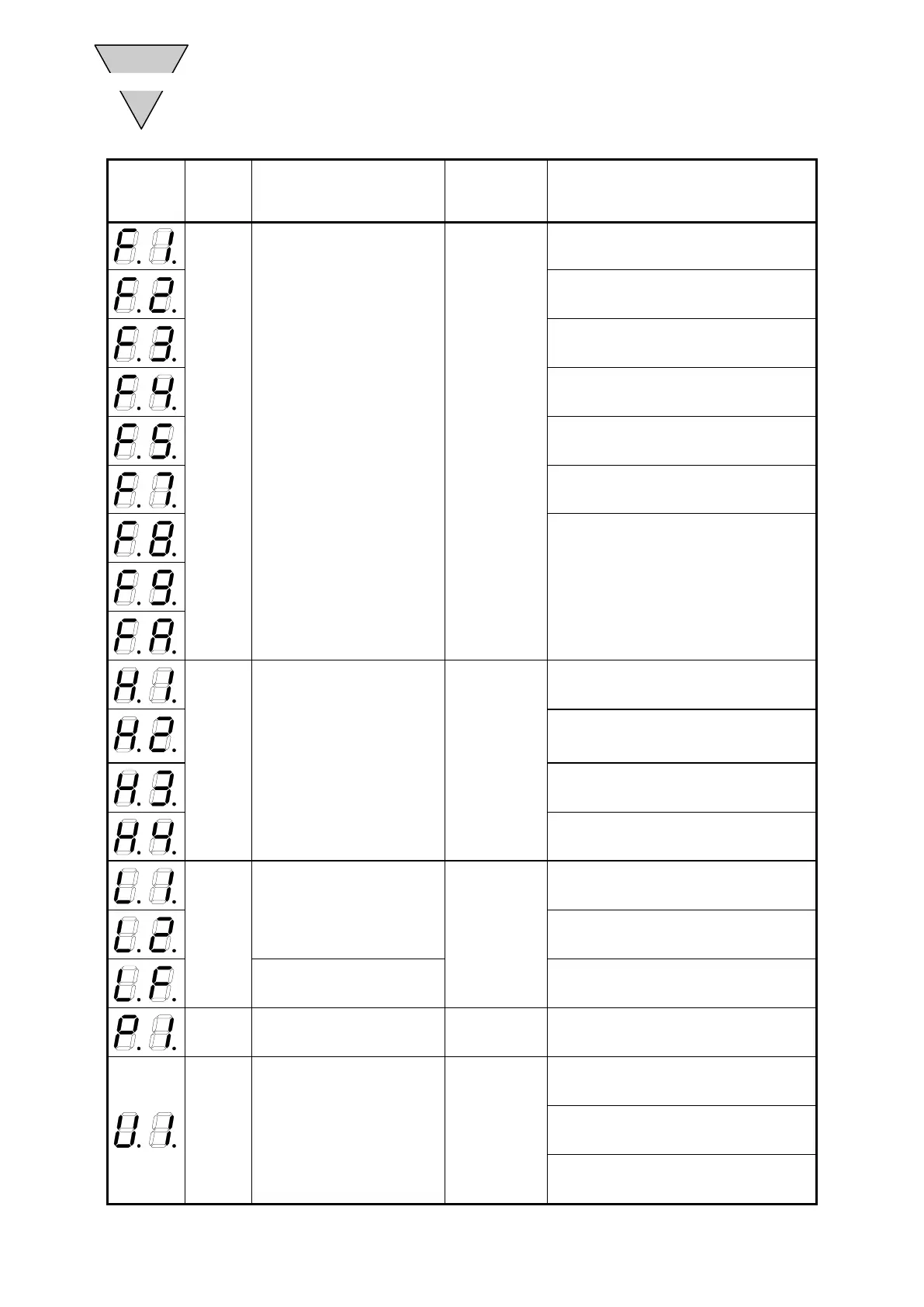

ALAR
MS
5
ＬＥＤ
Ｄｉｓｐｌａｙ
ＡＬＡＲＭ
Ｎｏ.
Ｄｅｓｃｒｉｐｔｉｏｎ
ＡＬＡＲＭ
Ｏｕｔｐｕｔ
Ｒｅｍａｒｋｓ
F Resolver abnormal
Alarm 1
Alarm 2
The resolver data has suddenly changed
during indexing operation.
The resolver data has suddenly changed
during other than above operation.
An error generates in the electric angle
during indexing operation.
An error generates during other than
above operation
There is no consistency between signals
sent from two resolvers.
The resolver data is instable at
power-on.
Other resolver errors
H No answer error Alarm 2
The no-answer time after an M-code
output exceeds the PRM11 setting.
The no-answer time at positioning
completion output exceeds the PRM11
setting.
A start input is supplied while an answer
is waited for.
A home return input is supplied while an
answer is waited for.
L
Actuator communication
abnormal
Alarm 1
Alarm 2
Actuator data reception error
Connection of inapplicable actuator
Drive PCB abnormal
A hardware failure in the drive PCB is
probable.
P Memory abnormal Alarm 2 Data writing error to internal memory
U Auto tuning abnormal
Alarm 1
Alarm 2
Acceleration is impossible up to the auto
tuning end speed.
An error generates in auto tuning
operation.
An electronic thermal error generates in
auto tuning.
