Hydraulic System VOLTO TIC
5-6 10/04
Fully lower the outer rotors using the double-acting control unit.
Important! During work, the single-acting control unit must be in float position.
However, the double-acting control unit must be in neutral position
(i.e. not in float position!).
2.2 Moving from
working to
transport position

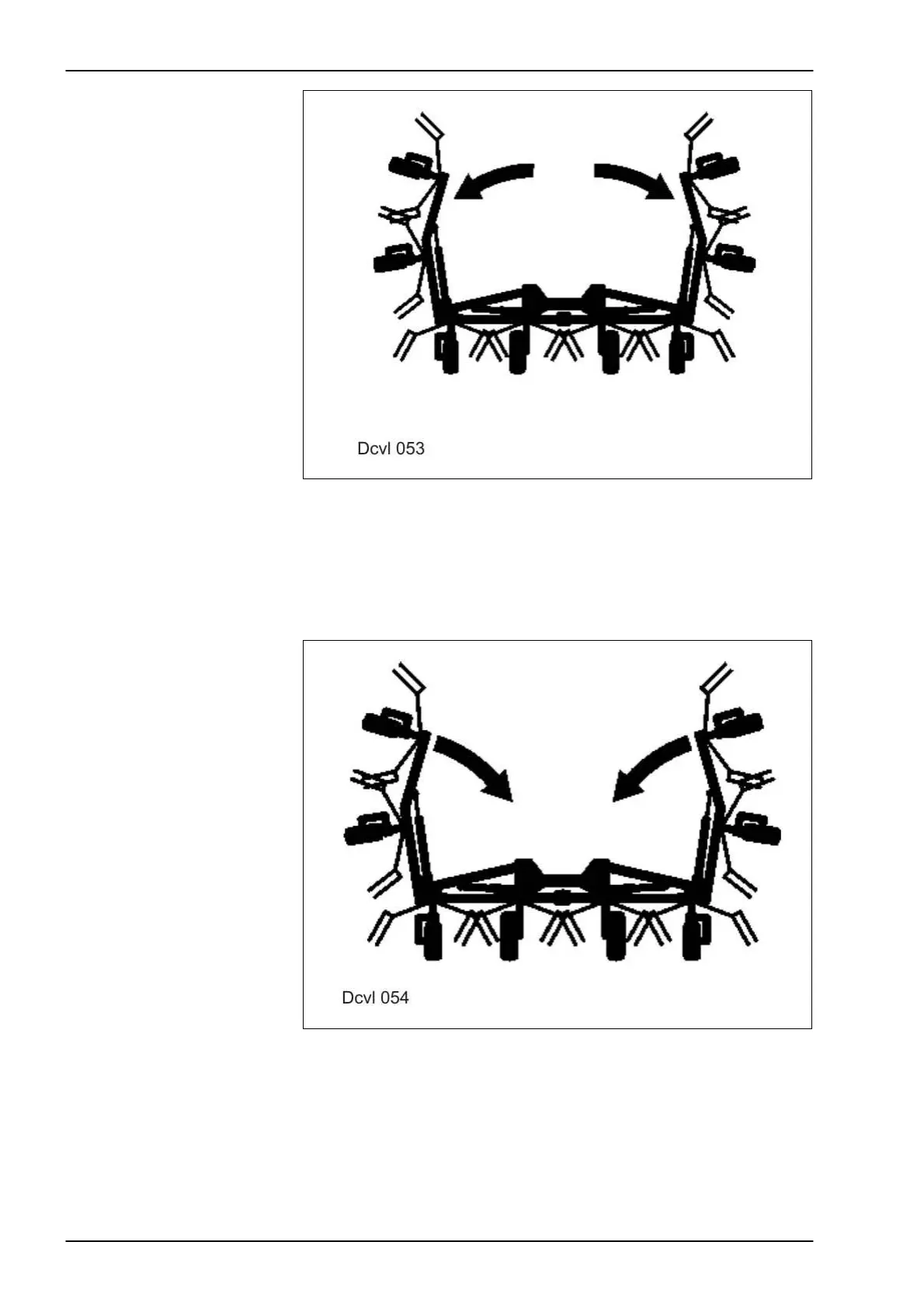

• Pull the red rope and fully lower the chassis at the rear, using the
single-acting control unit.
• Fully fold in the outer rotors using the double-acting control unit.
