TIC VOLTO Hydraulic System
10/04 5-25

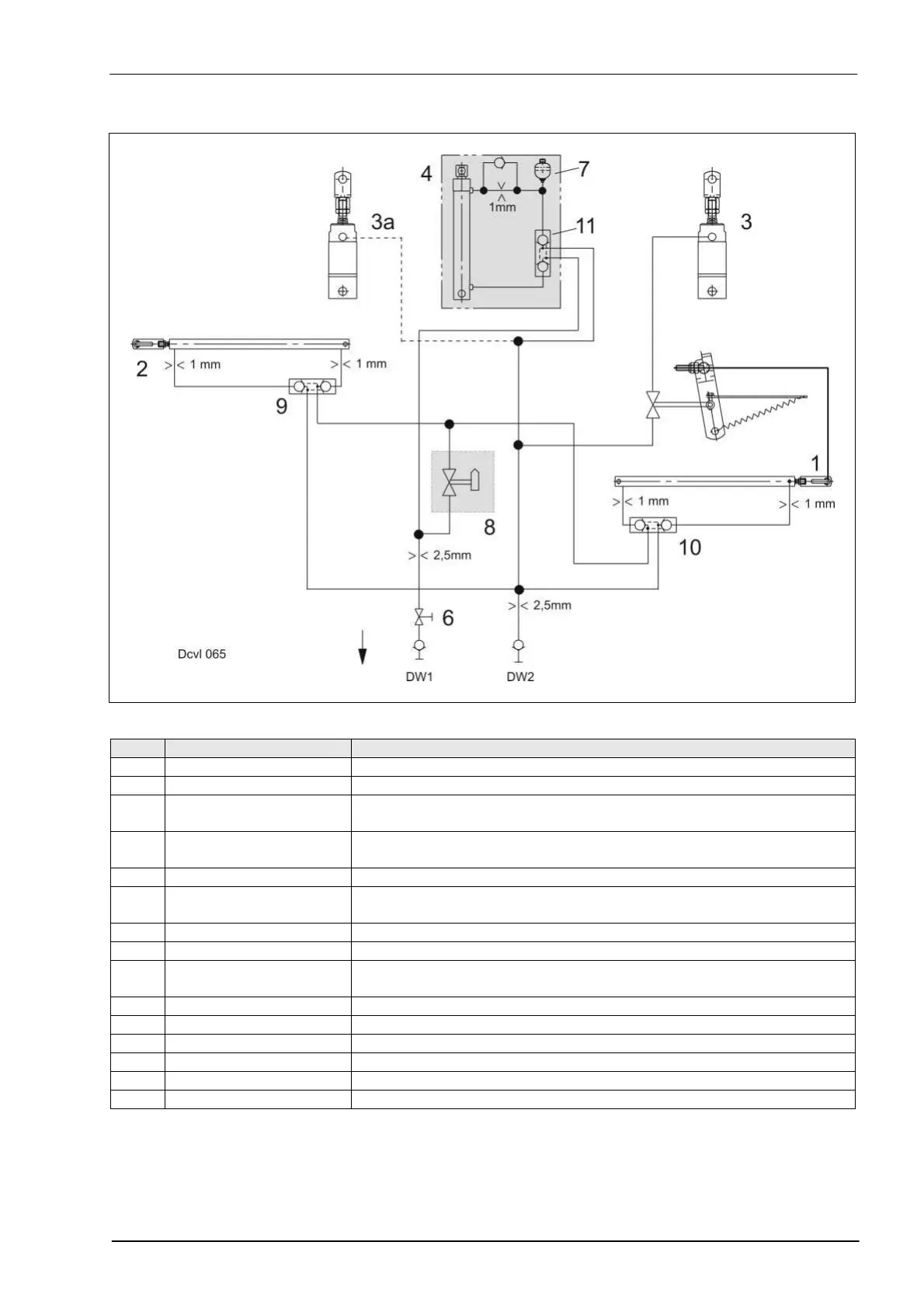

8.0 VOLTO 870 T hydraulic system
Item Designation Remark
1 Hydraulic cylinder Actuates the left outer arms
2 Hydraulic cylinder Actuates the right outer arms
3 Hydraulic cylinder When folding in, it raises the left outer arm off the ground first, thus
preventing bent tines
3a Hydraulic cylinder
(option)
Ensures that both outer arms can be raised in parallel (turning area).
4 Hydraulic cylinder Raises and lowers the chassis
5 Block-type ball valve Is actuated mechanically by the left outer arm. Is open in working
position and closed in transport position.
6 Block-type ball valve Open while machine is in use. Close for transport.
7 Accumulator Pre-stress: 40 bar. Volume: 0.16 litres
8 Block-type ball valve Must be open when in working position. Closed only during dispatch
and repair.
9 Lock-up valve unit Prevents uncontrolled movements of hydraulic cylinder under load.
10 Lock-up valve unit Prevents uncontrolled movements of hydraulic cylinder under load.
11 Lock-up valve unit Prevents uncontrolled movements of hydraulic cylinder under load.
DW1 Port of double-acting control unit
DW2 Port of double-acting control unit
