Claas LINER 3000 - Hydraulic System; LINER 880 Twin

TIC LINER Hydraulic / Electric System
10/04 4-35
3.2 LINER 880 Twin

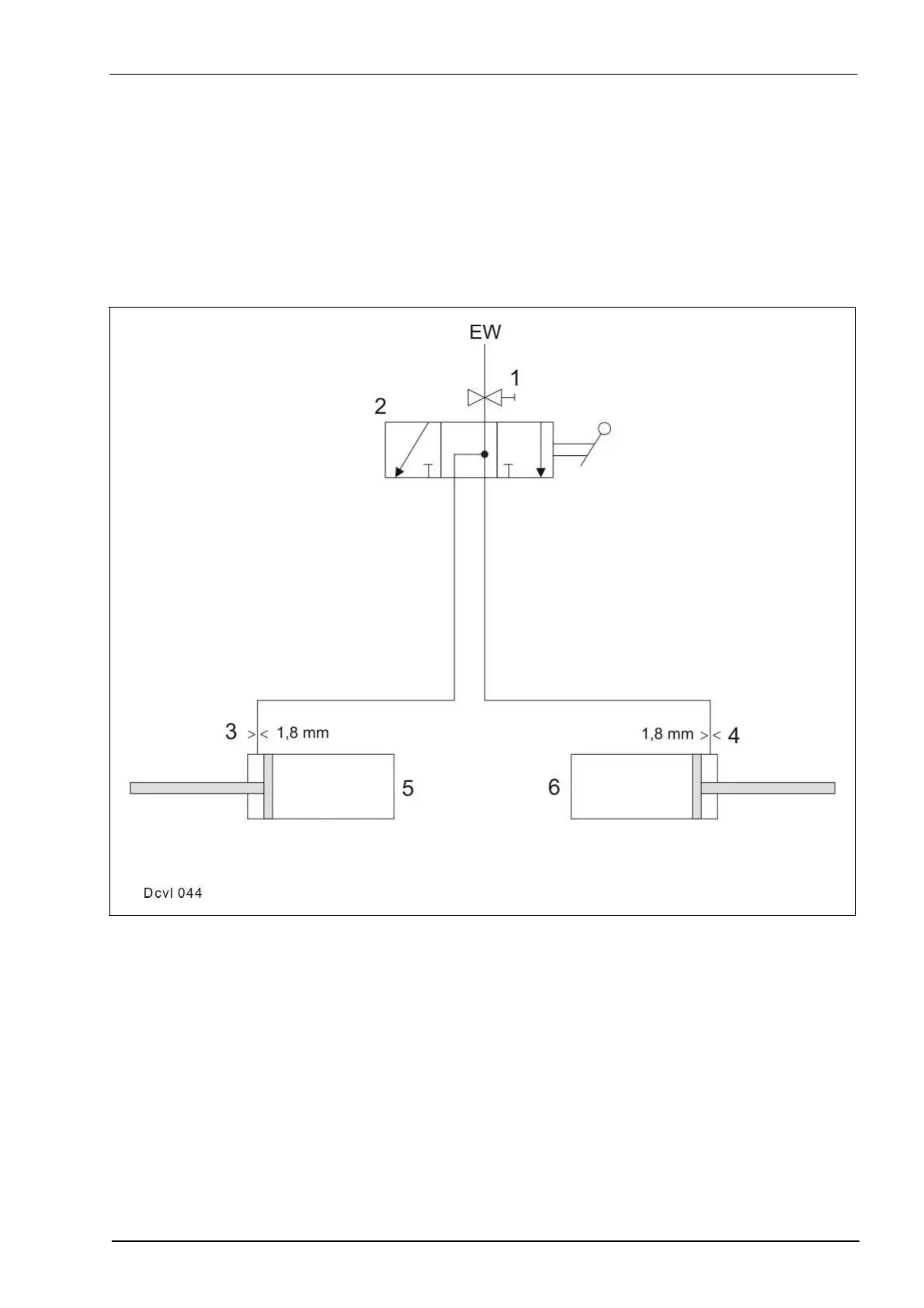

3.2.1 Hydraulic System
1 Shut-off tap
2 3/3-way valve
3
Orifice plate ∅ 1.8 mm
4
Orifice plate ∅ 1.8 mm
5 Hydraulic cylinder (on left side in direction of forward travel)
6 Hydraulic cylinder (on right side in direction of forward travel)
EW Single-acting control unit
