Hydraulic System VOLTO TIC
5-18 10/04

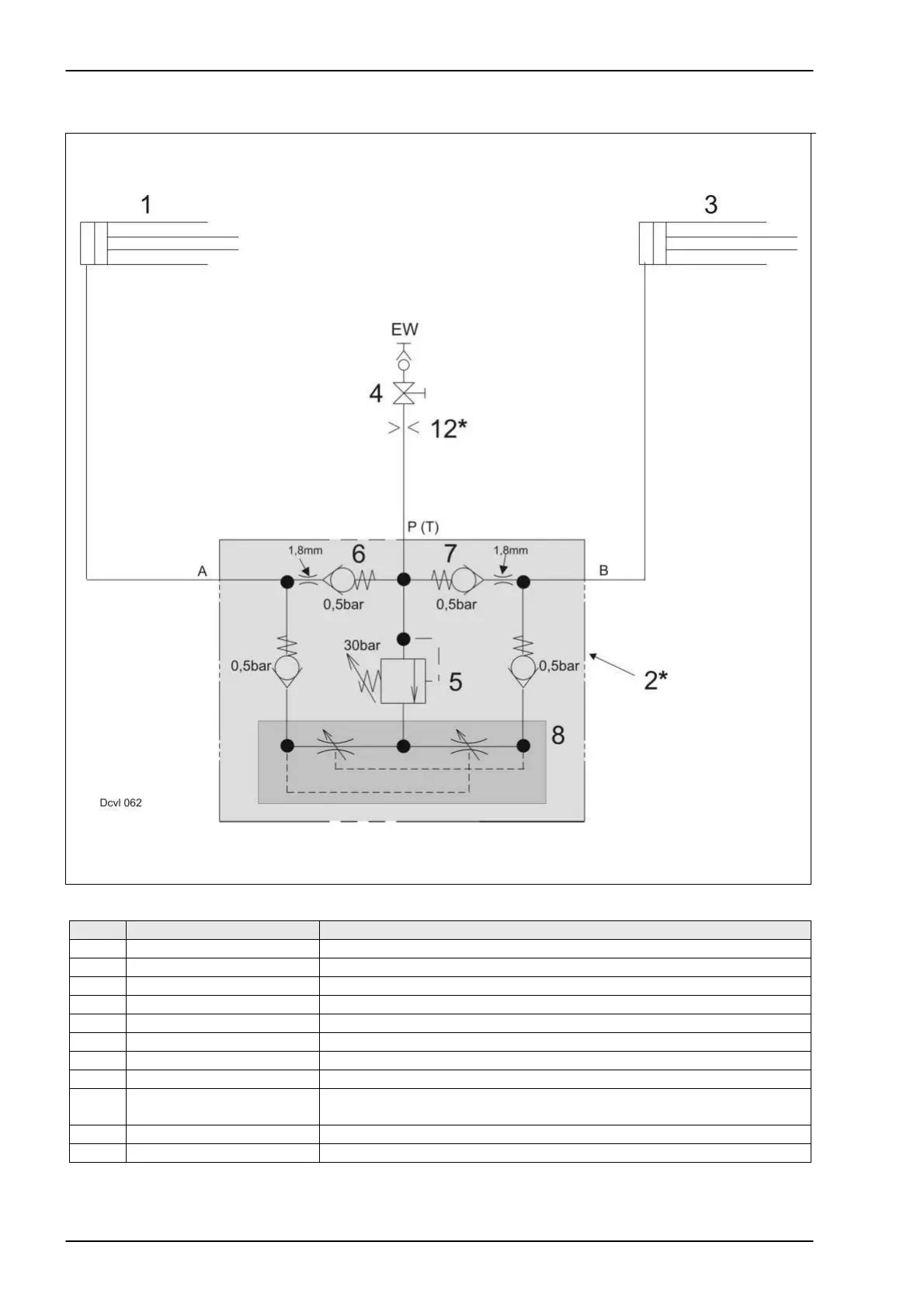

6.0 VOLTO 670 hydraulic system
Item Designation Remark
1 Hydraulic cylinder
2* Flow divider Supplied by PISTER. Only on VOLTO with synchronous raising.
3 Hydraulic cylinder
4 Shut-off tap Open while machine is in use. Close for transport.
5 Pressure relief valve Adjusting range 0.. 50 bar, ex-works setting: 30 bar
6 Non-return valve
7 Non-return valve
8 Pressure balance
12* Orifice plate Is built into VOLTO 660 without synchronous raising = flow divider
(2*) is not provided
EW Port of single-acting control unit
