Hydraulic / Electric System LINER TIC
4-38 10/04
4.1 LINER 1500/1550

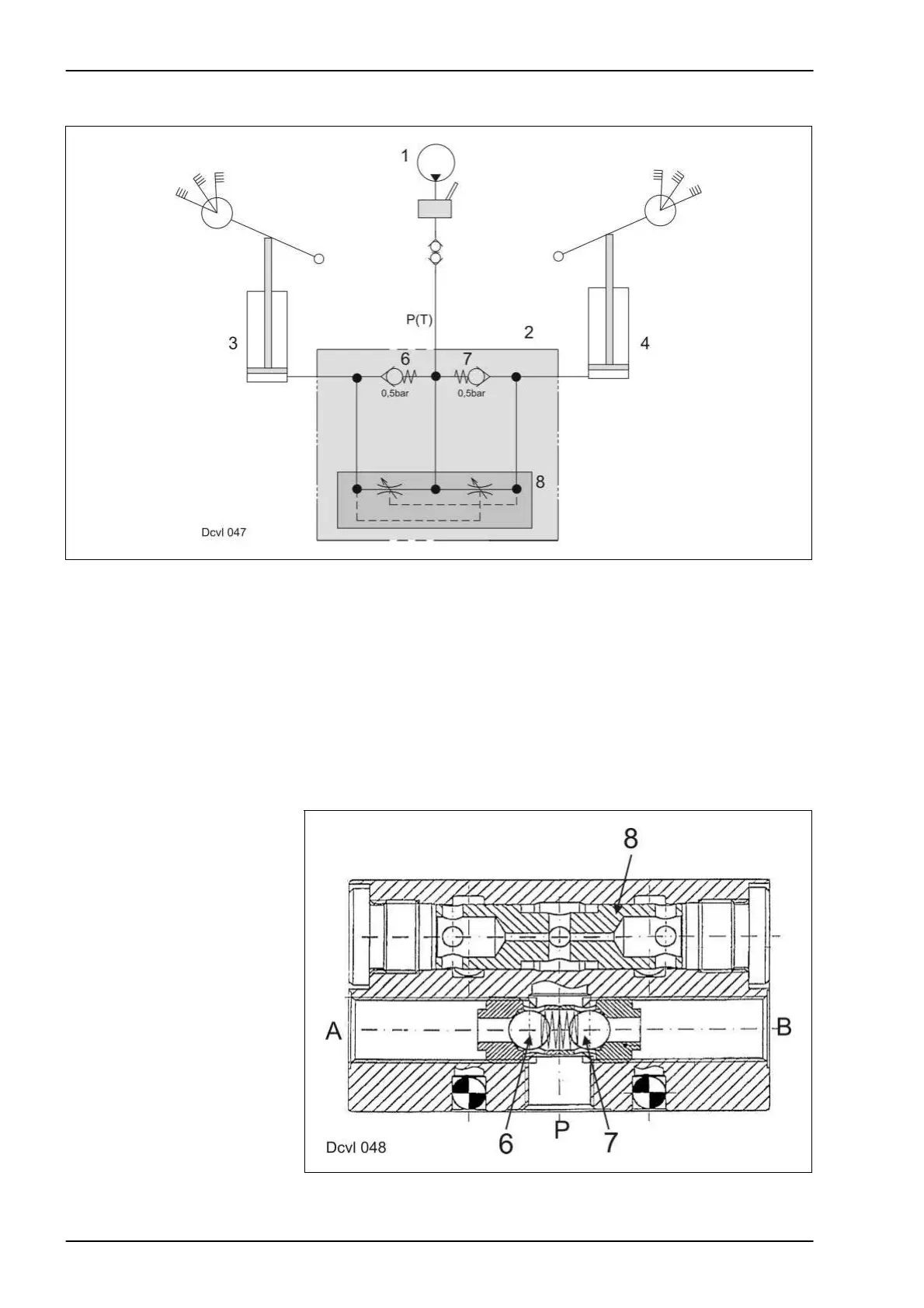

Function The volume flow of pump (1) is directed into the flow divider (2) via an
additional control unit of the tractor and port P(T).
This flow divider splits up the incoming volume flow into two equal volume
flows that flow to the hydraulic cylinders (3) and (4) via ports (A) and (B).
These volume flows are kept constant by a pressure balance (8) in flow
divider (2).
This control action also occurs when different loads occur on the
hydraulic cylinders (3) and (4), e.g. when working on slopes.
The higher the pressure relief valve (5) is set, the smaller the pressure
difference and consequently the lifting force of hydraulic cylinders (3)
and (4).
