TIC LINER Hydraulic / Electric System
10/04 4-37

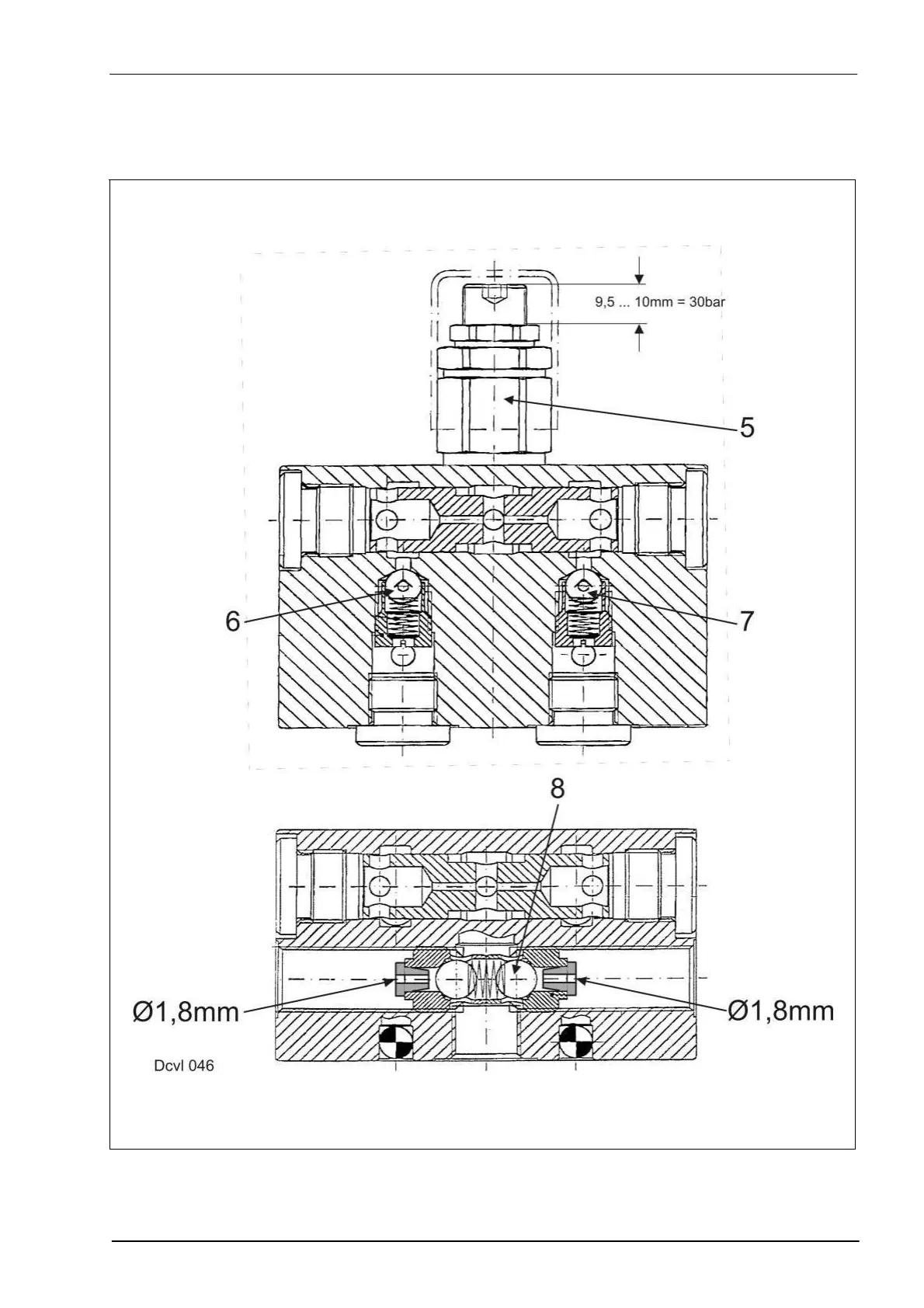

The higher the pressure relief valve (5) is set, the smaller the pressure
difference and consequently the lifting force of hydraulic cylinders (3)
and (4).
