Claas LINER 3000 - Hydraulic System; LINER 650 Twin; LINER 650 Twin, LINER 880

Hydraulic / Electric System LINER TIC
4-34 10/04
3.0 LINER 650 Twin, LINER 880
3.1 LINER 650 Twin

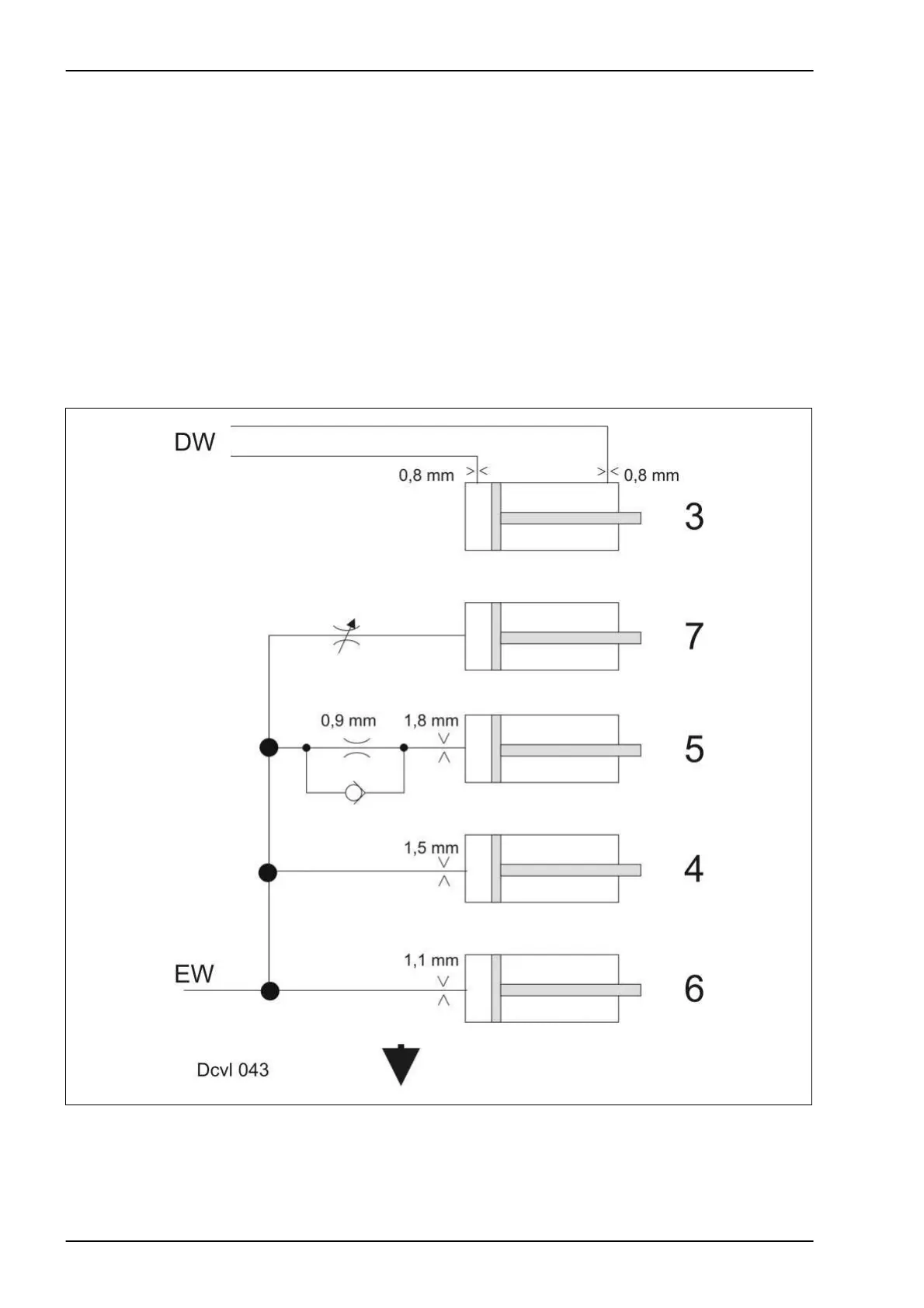

3.1.1 Hydraulic System
1 Connection with a double-acting control unit on the tractor
2 Connection with a single-acting control unit on the tractor
3 Hydraulic cylinder: Fold rear rotor (left or right)
4 Hydraulic cylinder: Raise front rotors
5 Hydraulic cylinder: Raise rear rotors
6 Hydraulic cylinder: Raise drawbar
7 Hydraulic cylinder (compensating cylinder): Frame and rear rotor
EW Single-acting control unit
DW Double-acting control unit
