Hydraulic System VOLTO TIC
5-16 10/04

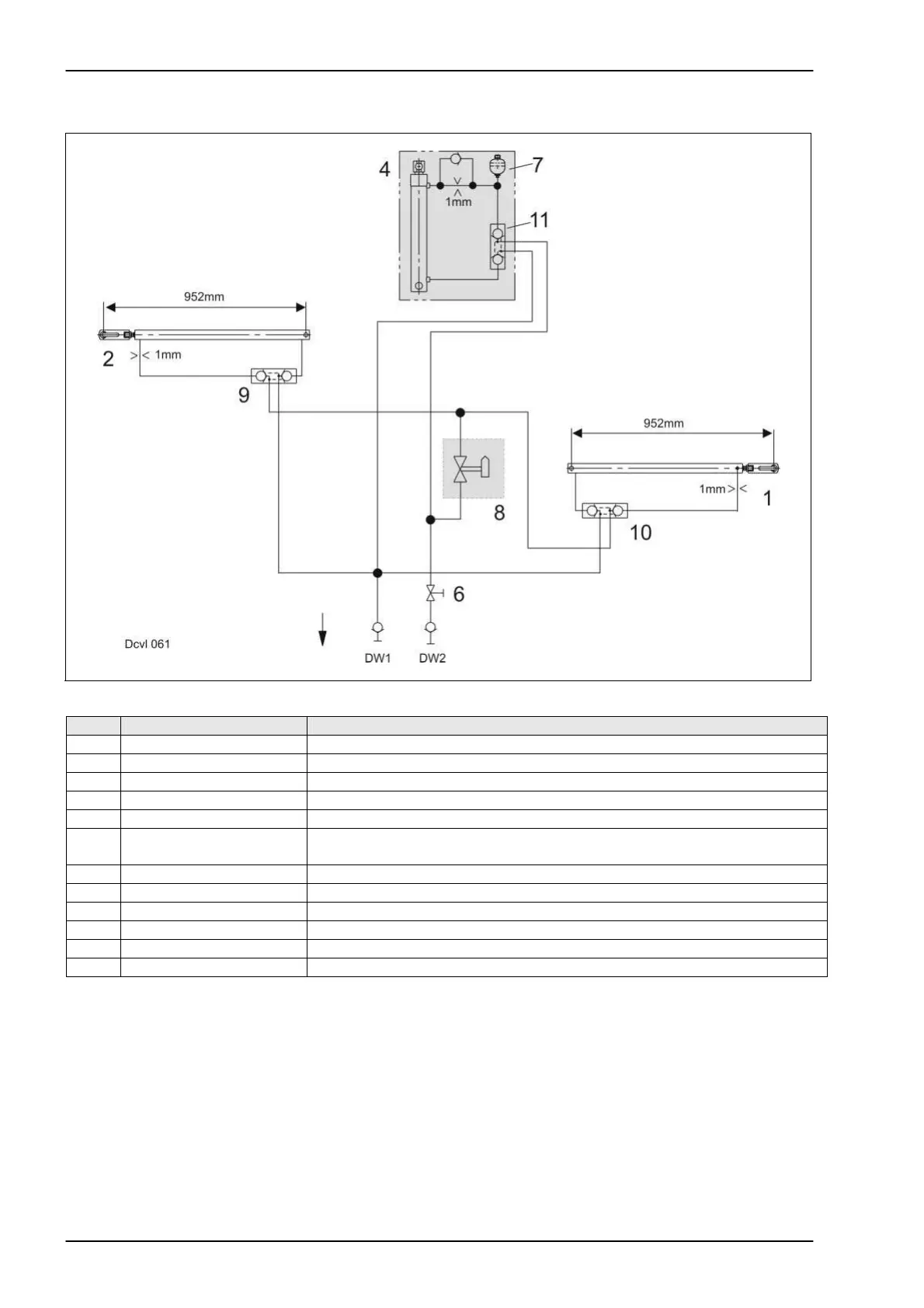

5.0 VOLTO 770 T hydraulic system
Item Designation Remark
1 Hydraulic cylinders Actuate the left outer arms
2 Hydraulic cylinders Actuate the right outer arms
4 Hydraulic cylinder Raises and lowers the chassis
6 Block-type ball valve Open while machine is in use. Close for transport.
7 Accumulator Pre-stress: 40bar. Volume: 0.16 litres
8 Block-type ball valve Must be open when in working position.
Closed only during dispatch and repair.
9 Lock-up valve unit Prevents uncontrolled movements of hydraulic cylinder under load.
10 Lock-up valve unit Prevents uncontrolled movements of hydraulic cylinder under load.
11 Lock-up valve unit Prevents uncontrolled movements of hydraulic cylinder under load.
DW of double-acting control unit
EW of single-acting control unit
