Hydraulic System VOLTO TIC
5-24 10/04

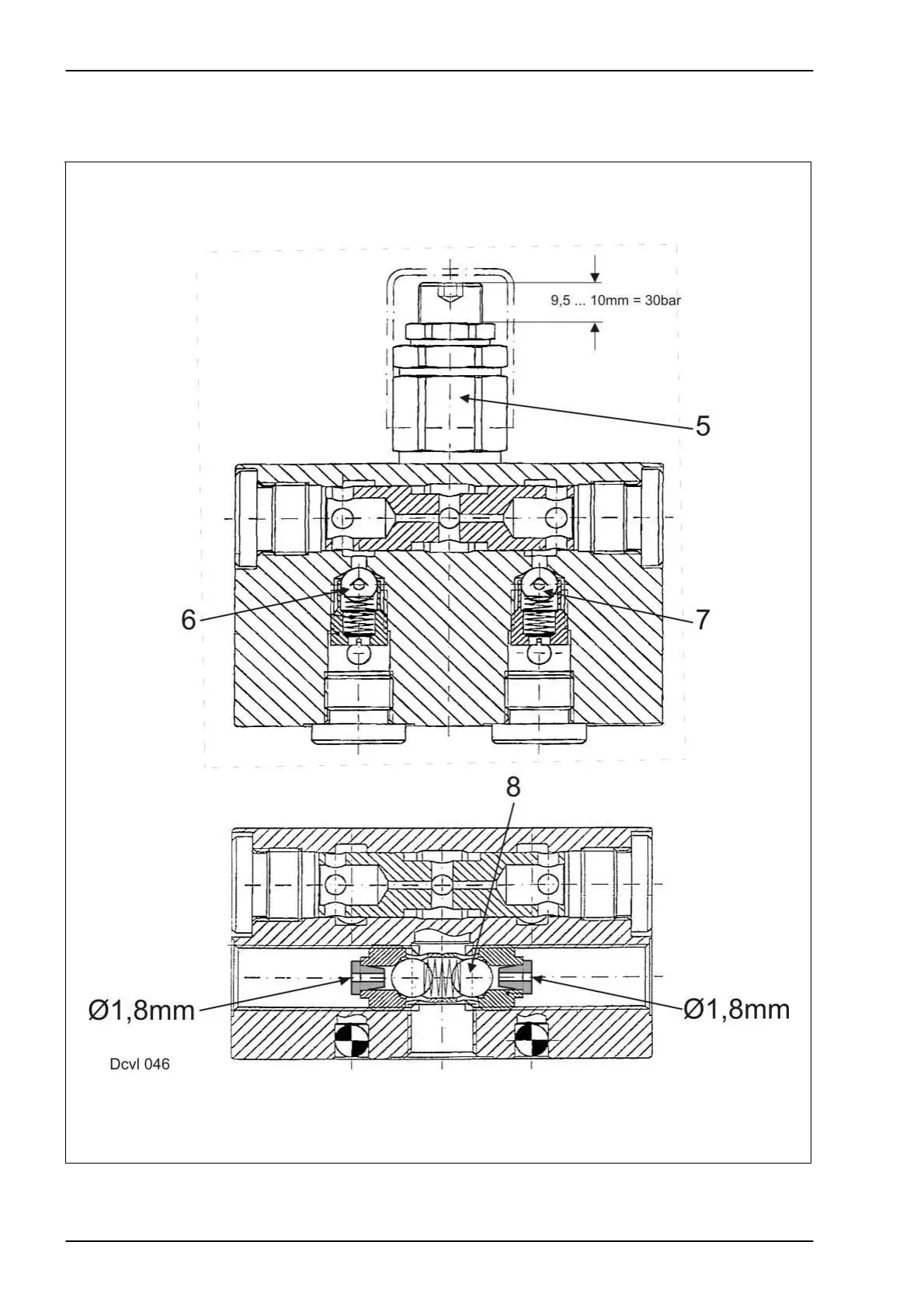

7.1 Flow divider
The higher the pressure relief valve (5) is set, the smaller the pressure
difference and consequently the lifting force of hydraulic cylinders (3)
and (4).
